Karnasch Hole Cutting Machine, KA-50, 230V, 1150W
(No reviews yet)
Write a Review
- Brand:
- Karnasch
- SKU:
- 441627275511
- Minimum Purchase:
- 1 unit
- Item Name:
- Hole Cutting Machine
- Model:
- KA-50
- Manufacturer:
- Karnasch
- Color:
- Blue and Black
- Width (MilliMeter):
- 120mm
- Input Power (Watts):
- 1150W
- Height (MilliMeter):
- 420-560mm
- Tool Holder:
- 19mm
- Length (MilliMeter):
- 280mm
- Magnet Footprint:
- 85 x 180mm
- Magnetic Adhesion:
- 1250kg
- Drilling Capacity:
- 3-23mm
- Cutting Capacity:
- 12-50mm
- Twist Drill Diameter:
- 3-23mm
- Countersink Diameter:
- 10-40mm
- Core Drilling Diameter:
- 12-50mm
- Voltage:
- 230V
- Cutting Depth:
- 110mm
- Stroke Length:
- 170mm
- Brand Origin (not manufacture):
- Germany
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

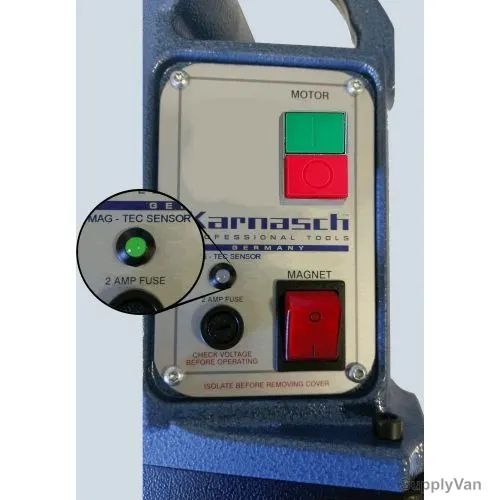

The sensor detects how well the magnet holds the machine to the ground. It is directly connected to the engine. If the sensor is "RED", the surface is contaminated (rust, paint residues, chips), the material is thinner than 6 mm or the feed rate during drilling is too high. The machine does not stand safely. The engine will not start or switch off. If the sensor is "GREEN", the magnetic retention force is optimal and the use of the machine is safe.
View AllClose
- Comes with Blue-Mag with heavy-duty Twin Rail Slide System and Sensor
- Up to 10 times higher stability
- Extremely tight guide tolerances due to the round rails
- The guide block has no direct contact with the machine body but is guided exclusively by the high-precision and stable round rail system
- This reduces friction and wear
- Lower maintenance costs and higher reliability
- Higher service life of the drills
- Less breakage of the drills
- More accurate drilling tolerances
- Better surface of the holes
Item Name: |
Hole Cutting Machine |
Model: |
KA-50 |
Manufacturer: |
Karnasch |
Color: |
Blue and Black |
Width (MilliMeter): |
120mm |
Input Power (Watts): |
1150W |
Height (MilliMeter): |
420-560mm |
Tool Holder: |
19mm |
Length (MilliMeter): |
280mm |
Magnet Footprint: |
85 x 180mm |
Magnetic Adhesion: |
1250kg |
Drilling Capacity: |
3-23mm |
Cutting Capacity: |
12-50mm |
Twist Drill Diameter: |
3-23mm |
Countersink Diameter: |
10-40mm |
Core Drilling Diameter: |
12-50mm |
Voltage: |
230V |
Cutting Depth: |
110mm |
Stroke Length: |
170mm |
Brand Origin (not manufacture): |
Germany |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
