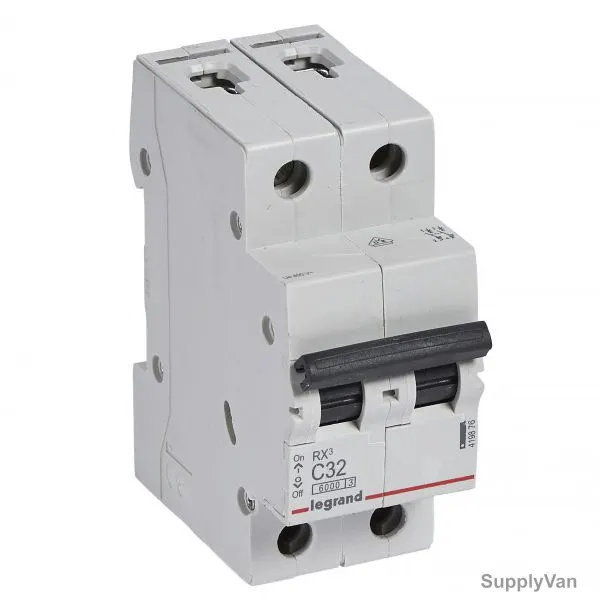

Legrand Miniature Circuit Breaker, 419876, RX3 6000, 2P, Curve C, 230/400V, 32A
(No reviews yet)
Write a Review
- Brand:
- Legrand
- SKU:
- 518636625854
- Minimum Purchase:
- 1 unit
- Item Name:
- Miniature Circuit Breaker
- Product Series:
- RX3 6000
- Manufacturer:
- Legrand
- Color:
- White
- Curve Type:
- C
- Number of Poles:
- 2P
- Voltage:
- 230/400V
- Current:
- 32A
- Breaking Capacity:
- 6 kA
- Ingress Protection (IP Rating):
- IP20
- Storage Temperature:
- - 25 to 60 Deg. C
- Brand Origin (not manufacture):
- France
- Product Size L x B x H (Cms):
- 7.73L x 3.46B x 8.88H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Legrand miniature circuit breaker (MCB) with product code 419876 is a two-pole circuit breaker with a rated current of 32A and a rated voltage of 230/400V. It has a curve C tripping characteristic, which means it is designed to trip at between 5 and 10 times its rated current within a specified time frame. The MCB is designed to provide protection against overloads and short circuits in electrical installations, and it can be used in both residential and industrial applications. The Legrand MCB conforms to international safety standards and is easy to install and maintain.
View AllClose
- Compatible with prong-type supply busbars
- Do not accept auxiliaries, and add-on modules
- Conform to IEC 60898-1
- Inputs and outputs via screw terminals
- Cage terminals, with release and captive screws
- Power Supply: From the top or the bottom
- Terminal Depth: 14mm
- Stripping Length: 11mm
- Tightening Torque: Recommended: 2.5 Nm, Minimum: 2 Nm and Maximum: 3 Nm
Item Name: |
Miniature Circuit Breaker |
Product Series: |
RX3 6000 |
Manufacturer: |
Legrand |
Color: |
White |
Curve Type: |
C |
Number of Poles: |
2P |
Voltage: |
230/400V |
Current: |
32A |
Breaking Capacity: |
6 kA |
Ingress Protection (IP Rating): |
IP20 |
Storage Temperature: |
- 25 to 60 Deg. C |
Brand Origin (not manufacture): |
France |
Product Size L x B x H (Cms): |
7.73L x 3.46B x 8.88H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
