Macstroc HDPE Butt Fusion Welding Machine, MACFUSION500, 9.5KW, 380V, 0-8Mpa
(No reviews yet)
Write a Review
- Brand:
- Macstroc
- SKU:
- 677281213281
- Minimum Purchase:
- 1 unit
- Item Name:
- HDPE Butt Fusion Welding Machine
- Model:
- MACFUSION500
- Manufacturer:
- Macstroc
- Wattage:
- 9.5kW
- Frequency:
- 50/60Hz
- Pipe Capacity:
- 200, 225, 250, 280, 315, 355, 400, 450, 500mm
- Pressure Range:
- 0-8Mpa
- Voltage:
- 380V
- Brand Origin (not manufacture):
- United Kingdom
- Warranty (Subject to Conditions):
- 1 Year
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

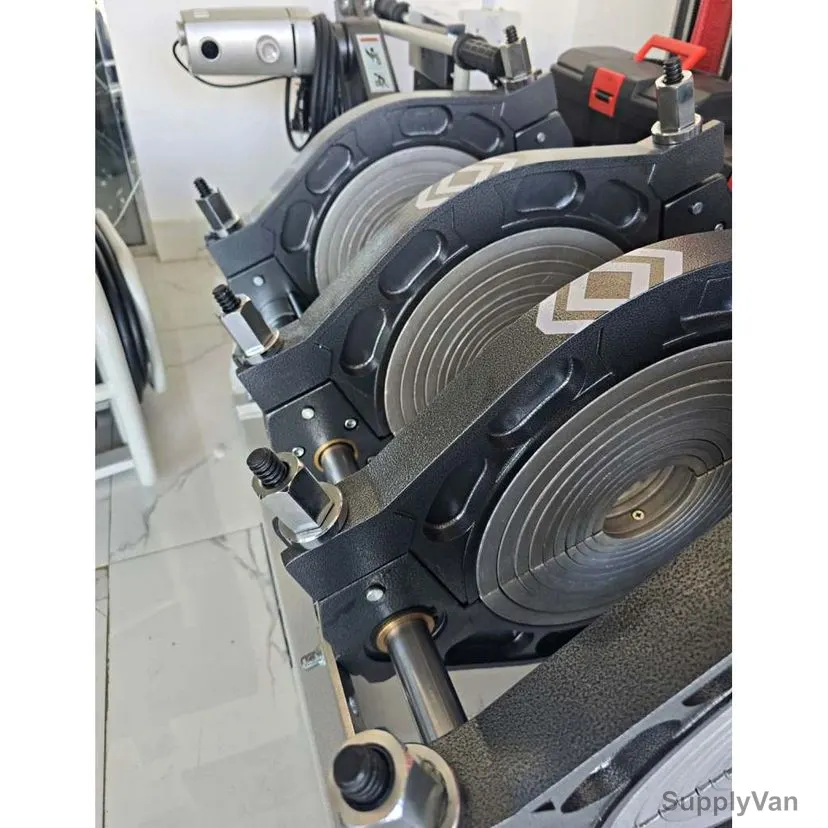

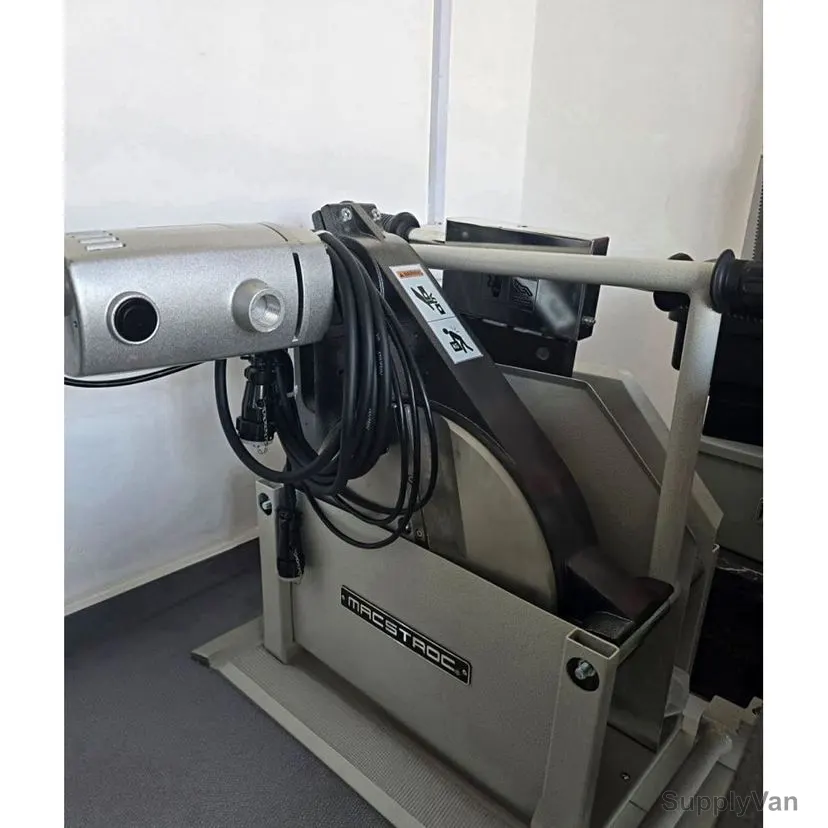

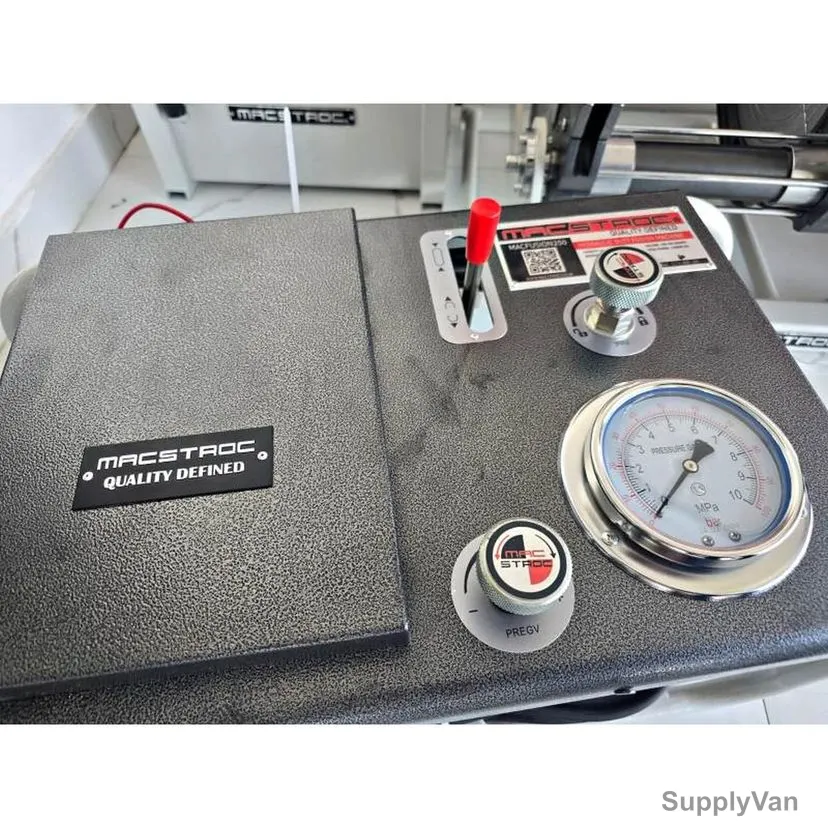

The Macstroc HDPE Butt Fusion Welding Machine, Engineered for precision HDPE plastic pipe welding, the MacFusion Series handles PE, PP, and PVDF pipes with ease. With a robust frame, hydraulic unit, and a removable PTFE-coated heating plate for accurate temperature control, these machines guarantee consistent and high-quality welds. Designed for reliability, the low starting pressure makes them perfect for small pipe welding, while the adjustable welding position ensures easy handling of various fittings. The MacFusion Series also includes a high-accuracy, shockproof pressure gauge and a dual-channel timer to record heating and cooling cycles, enhancing welding efficiency. Additionally, an optional data logger can be added to improve performance monitoring, making these machines a top choice for companies in Dubai, Riyadh, Doha, Muscat, and across the Middle East and Africa.
View AllClose
- Pipe Compatibility: Welds HDPE/PP pipes from 200mm to 500mm
- High Precision Heating: 270°C max temp with ±7°C accuracy
- Industrial Grade Power: 9.5KW total power with 3-phase support
- Robust Performance: Equipped with 1.5KW planing & hydraulic units
- Heating Plate Power: 6.5KW
- Planing Tool Power: 1.5KW
- Hydraulic Unit Power: 1.5KW
- Crane Power: 0.25T/1.1KW
Item Name: |
HDPE Butt Fusion Welding Machine |
Model: |
MACFUSION500 |
Manufacturer: |
Macstroc |
Wattage: |
9.5kW |
Frequency: |
50/60Hz |
Pipe Capacity: |
200, 225, 250, 280, 315, 355, 400, 450, 500mm |
Pressure Range: |
0-8Mpa |
Voltage: |
380V |
Brand Origin (not manufacture): |
United Kingdom |
Warranty (Subject to Conditions): |
1 Year |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
