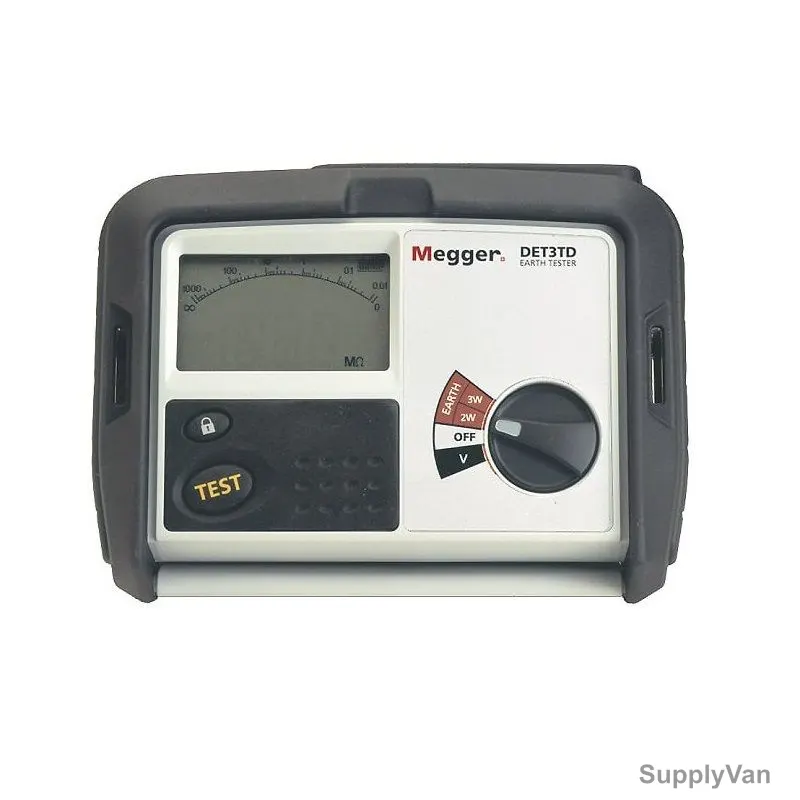

Megger Digital Earth Ground Resistance Tester, DET3TD, LCD, 3 Pole, IP54, 0.01 to 2000 Ohm
(No reviews yet)
Write a Review
- Brand:
- Megger
- SKU:
- 532893972691
- Minimum Purchase:
- 1 unit
- Item Name:
- Digital Earth Ground Resistance Tester
- Model:
- DET3TD
- Manufacturer:
- Megger
- Test Voltage:
- 25V or 50V, user selectable (factory setting 50V)
- Resistance:
- 0.01 to 2000 Ohm
- Resistance Accuracy:
- 2% +/-3 Digits
- Display Type:
- LCD
- Ingress Protection (IP Rating):
- IP54
- Storage Temperature:
- -40 to 70 Deg.C
- Battery Type:
- AA
- Battery Life:
- 3 hours
- Dimensions:
- 203 x 148 x 78mm
- Brand Origin (not manufacture):
- United Kingdom
- Standards:
- 7140,15416,18491
- Delivery Time:
- 2-7 Days
- Unit:
- Kit
Description
The DET3TD Digital earth/ground resistance tester is ideal for basic requirements as it provides digital ground testing and bond test capabilities. Similar to the DET3TC, this instrument comes with a complete kit: instrument, test leads, stakes, batteries, calibration certificate, and a tough polypropylene carry case. As with the DET3TC, the DET3TD is easy to use, with the earth/ground rod tester rated to IP54, making it a hardy outdoor instrument. Using the optional clamp around the earth/ground rod connection allows the testing of the rod without the need for disconnection, leaving the earthing system intact during testing (ART). A large, clear, easy-to-read LCD display and thumb-sized test button also makes the instrument particularly suited outdoor conditions. In addition to its ease of use, the DET3TD (and the DET3TC) also automatically checks the connection and condition of the P and C spike, indicating the status on the display. The instrument also includes a voltmeter to allow you to measure the ground voltage and can measure resistance from 0.01 Ohm through to 2000 Ohm and earth voltages up to 100 V. To allow accurate testing in noisy environments, the instrument is capable of rejecting noise of up to 40V peak to peak.
Items Included:

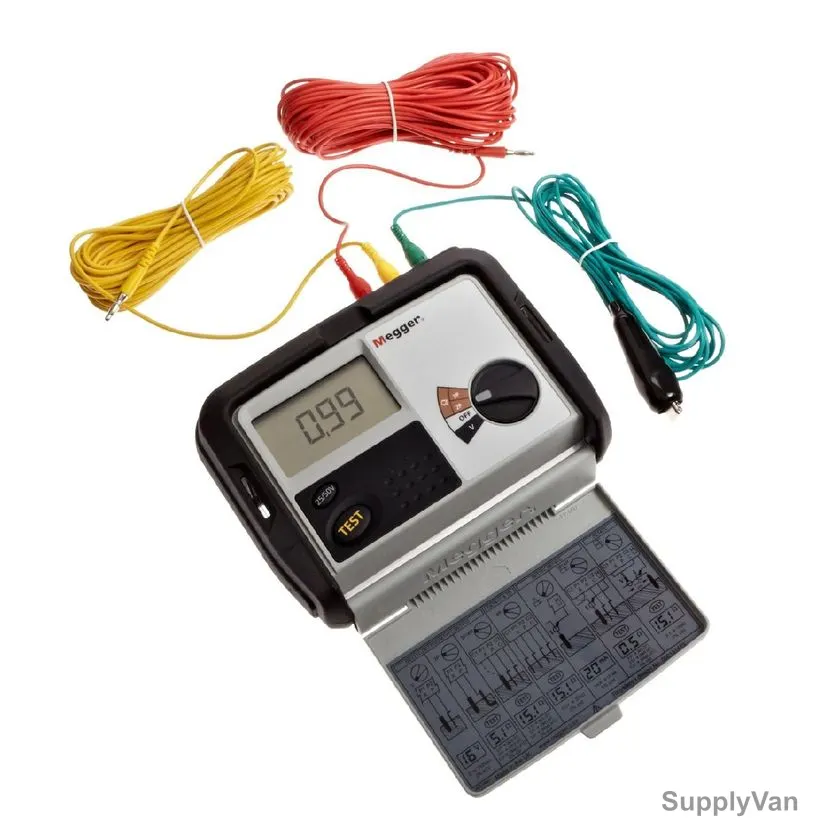

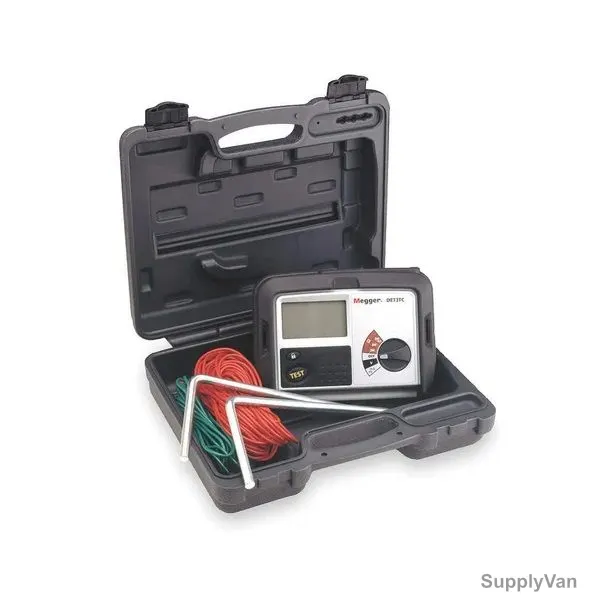

1x 2 and 3 Terminal Digital Tester, 1x Replacement 3-wire lead set (15mtrs red wire, 10mtrs yellow wire, 4mtrs green wire), 2x Ground Test Stakes (8mm Dia x 200mm), 1x Hard Carry Case
View AllClose
- 2 and 3 point testing
- Selectable 25V or 50V output
- Complete with leads, stakes and rugged carry case
- Simple one-button operation
- Calibration test certificate included
- Test Frequency: 128 Hz
- Test Current: 4.5mA
- Earth Voltage Accuracy: 2% +/-2V
- Earth Voltage Range: 0-100VAC
- Noise Rejection: 40V peak to peak
Items Included:
1x 2 and 3 Terminal Digital Tester, 1x Replacement 3-wire lead set (15mtrs red wire, 10mtrs yellow wire, 4mtrs green wire), 2x Ground Test Stakes (8mm Dia x 200mm), 1x Hard Carry Case
Item Name: |
Digital Earth Ground Resistance Tester |
Model: |
DET3TD |
Manufacturer: |
Megger |
Test Voltage: |
25V or 50V, user selectable (factory setting 50V) |
Resistance: |
0.01 to 2000 Ohm |
Resistance Accuracy: |
2% +/-3 Digits |
Display Type: |
LCD |
Ingress Protection (IP Rating): |
IP54 |
Storage Temperature: |
-40 to 70 Deg.C |
Battery Type: |
AA |
Battery Life: |
3 hours |
Dimensions: |
203 x 148 x 78mm |
Brand Origin (not manufacture): |
United Kingdom |
Standards: |
7140,15416,18491 |
Delivery Time: |
2-7 Days |
Unit: |
Kit |
