Micro Control Systems MCS‑050‑DIFFB Wiring Transducer With PACK-CON-XX Cable, APP120, 5VDC
(No reviews yet)
Write a Review
- Brand:
- Micro Control Systems
- SKU:
- 171556695561
- Minimum Purchase:
- 1 unit
- Item Name:
- Wiring Transducer
- Model:
- APP120
- Manufacturer:
- Micro Control Systems
- Voltage:
- 5VDC
- Pressure Range:
- o to +/-1.805 psi
- Accuracy:
- +/- 1% full scale
- Connection Type:
- Molded Packard 3-pin plug
- Application:
- HVAC systems, Refrigeration units, Filter monitoring, Static pressure control
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

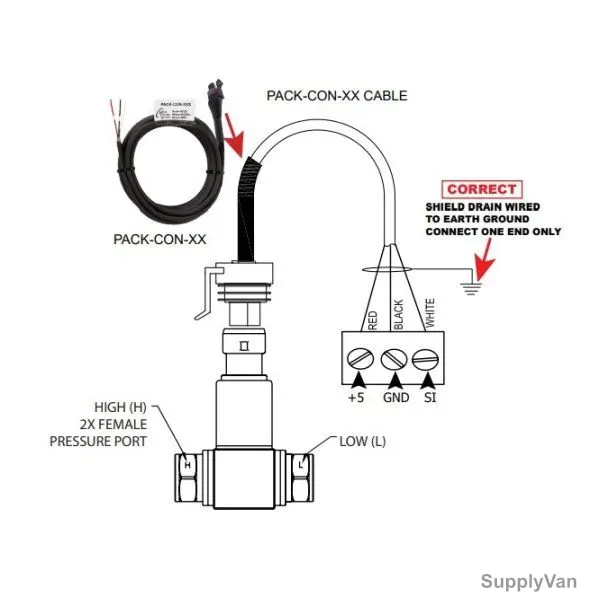

The Micro Control Systems MCS‑050‑DIFFB Wiring Transducer with PACK-CON-XX Cable, APP120 is a high-precision differential pressure transducer solution designed for use in HVAC and building automation systems. It provides reliable pressure monitoring and sensor data transmission using a secure plug-and-play cable interface, ensuring ease of installation and long-term system performance. This transducer is ideal for measuring low differential air pressures in ducts, filters, and other HVAC applications. The MCS-050-DIFFB is engineered to measure pressure differentials up to ±50 inches of water column (WC) with high accuracy and stability. It is preconfigured to interface seamlessly with Micro Control Systems (MCS) control panels and is delivered with a PACK-CON-XX molded cable that ensures proper signal integrity, reduces wiring errors, and speeds up installation. The APP120 wiring configuration reference ensures proper electrical connection and signal interpretation using the PACK-CON-XX cable standard.
View AllClose
- Purpose: Accurate wiring and data communication between transducers and control modules
- Ensures proper connection and signal integrity
- Suitable for pressure monitoring systems
- Compatible with industrial automation and HVAC control setups

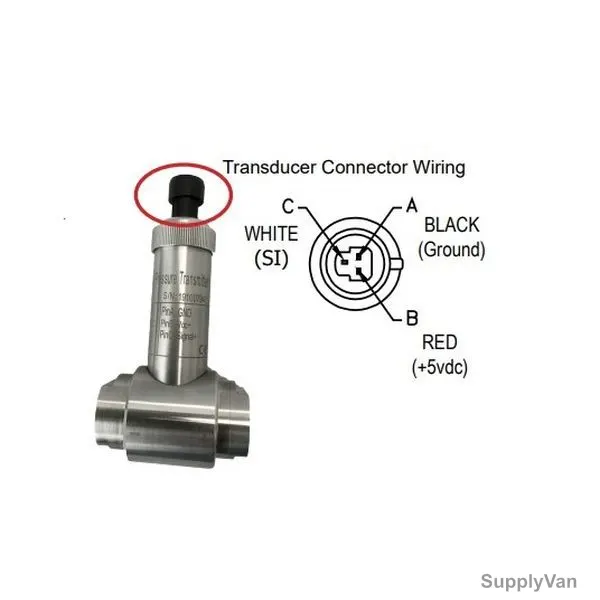

- May include specific wiring colors (e.g., Power, Ground, Signal+) — refer to OEM documentation for pinout
- Sensor Type: Differential Pressure Transducer
Item Name: |
Wiring Transducer |
Model: |
APP120 |
Manufacturer: |
Micro Control Systems |
Voltage: |
5VDC |
Pressure Range: |
o to +/-1.805 psi |
Accuracy: |
+/- 1% full scale |
Connection Type: |
Molded Packard 3-pin plug |
Application: |
HVAC systems, Refrigeration units, Filter monitoring, Static pressure control |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
