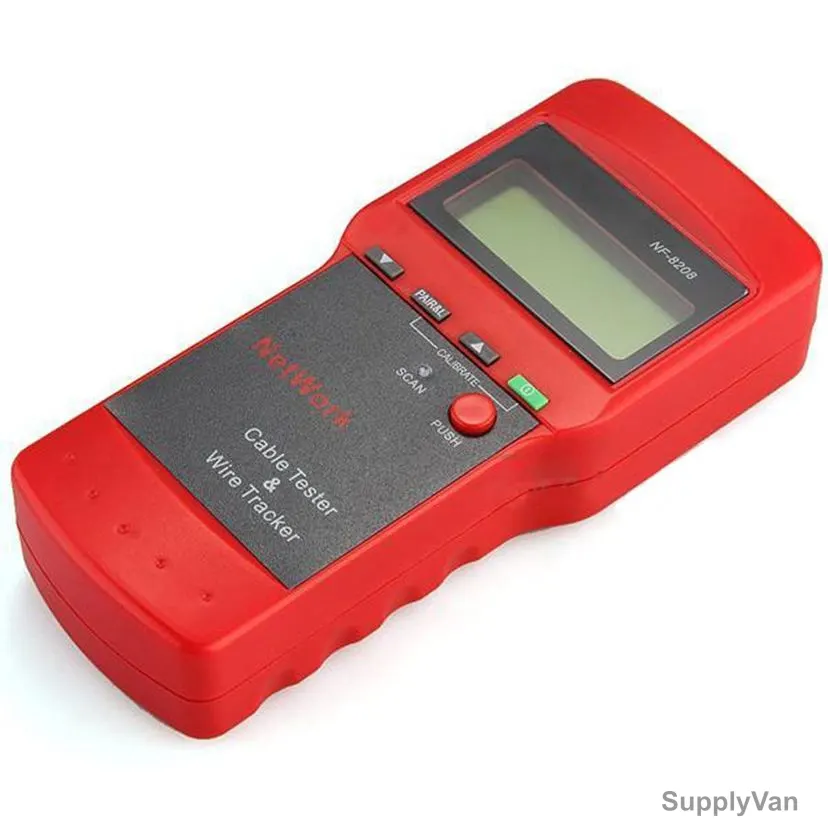

NF-8208 Transmitter
Indictor: LCD 53x25 mm without backlight
Tone Frequency: 225kHz
Max. Distance of Transmission: 2 km
Max. Distance of Cable Map: 1 km
Max. Working Current: Less than 70mA
Tone Mode: 2 Tones adjustable
Compatible Connectors: RJ45
Function and Faults LCD Display: LCD display ( wire map, Tone, short, , No adapter, Low battery)
Cable Map Indication: LCD (#1-#8)
Shielded Indication: LCD ( #9)
Battery Type: DC9.0V (NEDA 1604/6F22 DC9V x 1pc)
Dimensions (LxWxD): 185 x 80 x 32mm

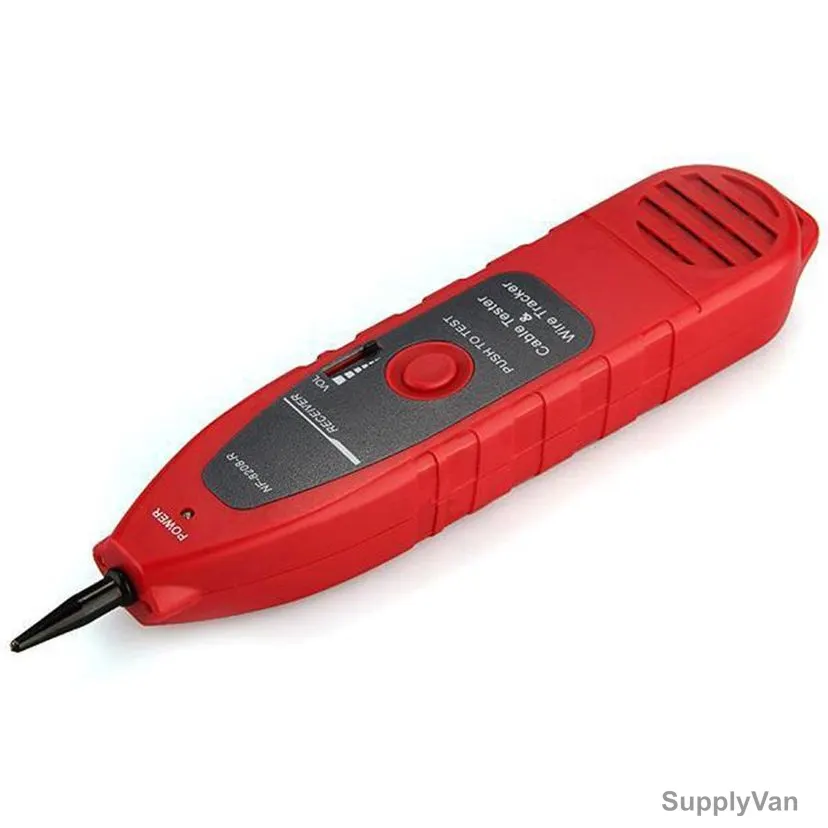

NF-8208 Receiver
Frequency: 225kHz
Max. Working Current: Less than 70mA
Earjack: 1
LED Illumination: 2
Battery Type: DC9.0V (NEDA 1604/6F22 DC9V x 1pc)
Dimensions (LxWxD): 218 x 46 x 29mm
NF-8208 Remote Unit
Compatible Connectors: RJ45
Dimensions (LxWxD): 107 x 30 x 24mm- Check wiring error in 5E, 6E, such as open circuit, short circuit, jumper wire, reverse connection
- Measure length of network cable, and locate the breakage point
- Tone trace cable in bundle of unknown cables quickly
- Self-checking function and automatically compensate any change in battery capacity or ambient temperature
- LCD light assists use in dark corners
- Enables cables to be located even when totally concealed

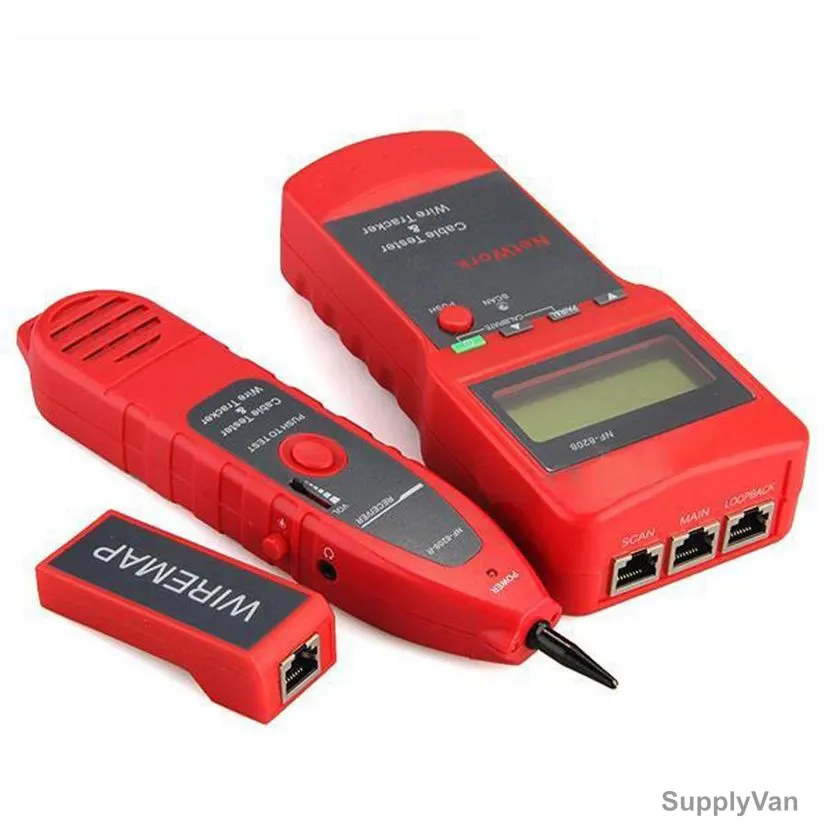

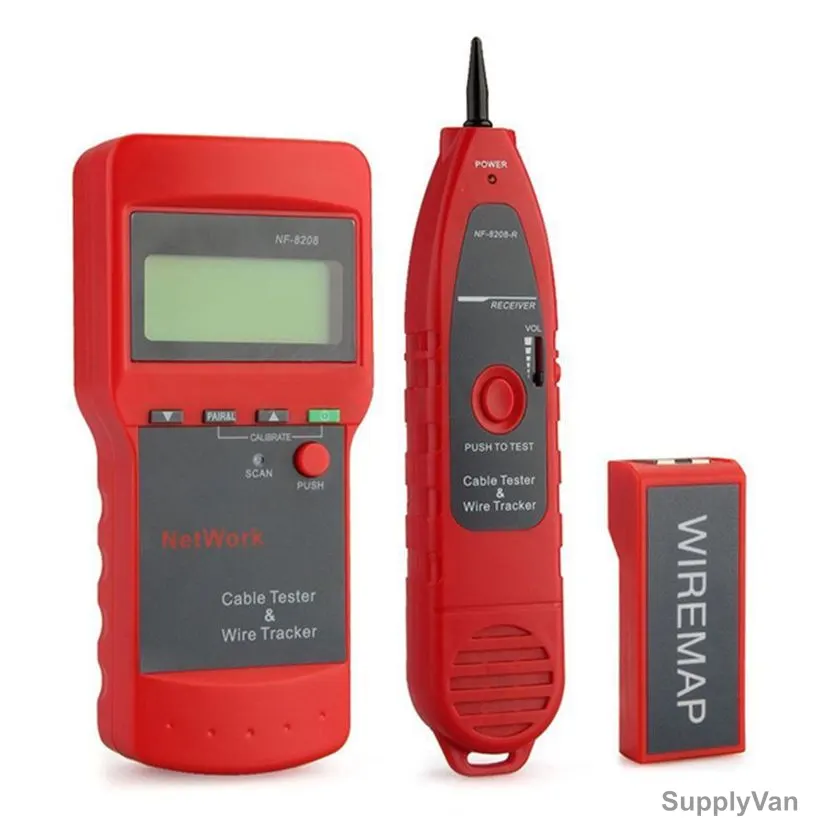

Items Included:
1x Transmitter, 1x Receiver, 1x Remote, 1x Earphones, 1x Battery, 1x Cable Clip, 1x Adapted Network Cable
