OBO Junction Box, OBO2007061, T60, Polypropylene, IP66, Light Grey

(No reviews yet) Write a Review
Brand:
OBO
SKU:
662567378164
Minimum Purchase:
1 unit
Item Name:
Junction Box
Model:
OBO2007061
Product Series:
T60
Manufacturer:
OBO
Material:
Polypropylene
Color:
Light Grey
Weather Resistant (Yes/No):
Yes

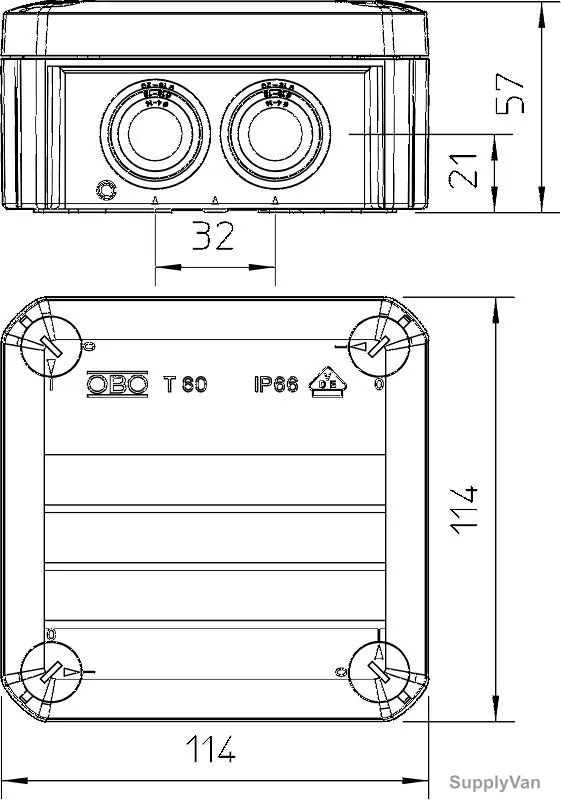

Length (MilliMeter):
114mm
Width (MilliMeter):
114mm
Height (MilliMeter):
57mm
Ingress Protection (IP Rating):
IP66
Brand Origin (not manufacture):
Germany
Product Size L x B x H (Cms):
11.4L x 11.4B x 5.7H
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • OBO Junction Box, OBO2007061, T60, Polypropylene, IP66, Light Grey
  • OBO Junction Box, OBO2007061, T60, Polypropylene, IP66, Light Grey
AED12.50

Available on Request

Description

  • All the T series junction boxes are UV-resistant
  • They are made of a thermoplastic polypropylene plastic with plug-in seals made of ethylene vinyl acetate (EVA)
  • This plastic is soft, which means that it is malleable
  • This allows installation of cables through the 7 x M25 seals, or the seals can be cut with a knife at the pre-marked points, in order to create an insertion opening for cables or pipes
  • Alternatively, instead of seals, cable glands can be inserted through the openings and be countered internally with a locknut
  • The junction boxes can be mounted on mounting plates in the openings on the floor using steel bolts 3.5 x 9.5
  • Clear Internal Dimension: 100 x 100 x 48mm
  • Cover with labelling panel and lead-sealed
Item Name:
Junction Box
Model:
OBO2007061
Product Series:
T60
Manufacturer:
OBO
Material:
Polypropylene
Color:
Light Grey
Weather Resistant (Yes/No):
Yes
Length (MilliMeter):
114mm
Width (MilliMeter):
114mm
Height (MilliMeter):
57mm
Ingress Protection (IP Rating):
IP66
Brand Origin (not manufacture):
Germany
Product Size L x B x H (Cms):
11.4L x 11.4B x 5.7H
Delivery Time:
2-7 Days
Unit:
Piece
