Phoenix Contact Step Power Supply Unit, 2868664, 1 Phase, 24VDC, 4.2A, IP20
(No reviews yet)
Write a Review
- Brand:
- Phoenix Contact
- SKU:
- 748773955756
- Minimum Purchase:
- 1 unit
- Item Name:
- Step Power Supply Unit
- Manufacturer:
- Phoenix Contact
- Color:
- White and Black
- Material:
- Polycarbonate
- Frequency:
- 45-65Hz
- Input Voltage:
- 100VAC to 240VAC
- Output Voltage:
- 24VDC
- Output Current:
- 4.2A
- Ingress Protection (IP Rating):
- IP20
- Efficiency:
- > 88 Percent
- Insulation Class:
- II
- Maximum Torque (Nm):
- 0.6 Nm
- Minimum Torque (Nm):
- 0.5 Nm
- Response Time:
- < 0.5 sec

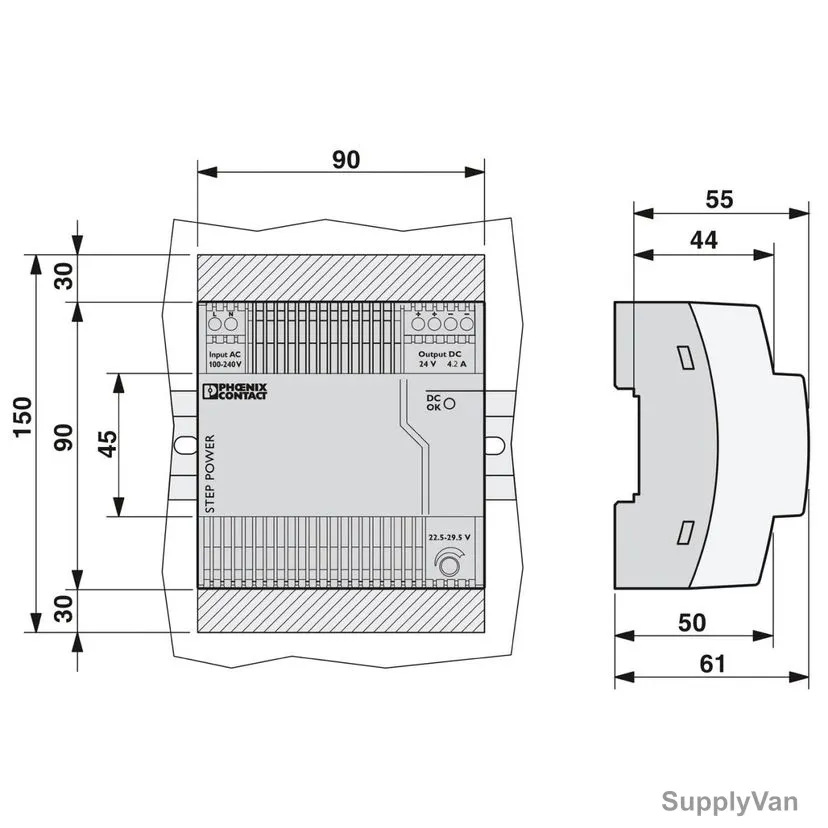

- Width:
- 90mm
- Height:
- 90mm
- Depth:
- 55mm
- Number of Phase:
- 1
- Output Power (Watts):
- 100.8W
- Brand Origin (not manufacture):
- Germany
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Step Power Supply range was developed especially for building automation. The low idling losses and high degree of efficiency ensure maximum energy efficiency. They allow flexible use and can be snapped onto the DIN rail or screwed onto an even surface.
View AllClose
- Primary-switched step power supply for DIN rail mounting
- Input voltage range AC: 85VAC to 264VAC
- Input voltage range DC: 95VDC to 250VDC
- Mains buffering time at 120VAC: 20ms
- Mains buffering time at 230 VAC: 100ms
- Current consumption at 120VAC: 1.3A
- Current consumption at 230VAC: 0.8A
- Nominal power consumption: 196.7VA
- Maximum no-load power dissipation: < 0.7W
- Power loss nominal load max: 13.2W
- Ambient temperature: -40 to 85 Deg.C
Item Name: |
Step Power Supply Unit |
Manufacturer: |
Phoenix Contact |
Color: |
White and Black |
Material: |
Polycarbonate |
Frequency: |
45-65Hz |
Input Voltage: |
100VAC to 240VAC |
Output Voltage: |
24VDC |
Output Current: |
4.2A |
Ingress Protection (IP Rating): |
IP20 |
Efficiency: |
> 88 Percent |
Insulation Class: |
II |
Maximum Torque (Nm): |
0.6 Nm |
Minimum Torque (Nm): |
0.5 Nm |
Response Time: |
< 0.5 sec |
Width: |
90mm |
Height: |
90mm |
Depth: |
55mm |
Number of Phase: |
1 |
Output Power (Watts): |
100.8W |
Brand Origin (not manufacture): |
Germany |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
