Raiden A2 type brass indoor gland is used with all types of unarmoured cable, providing mechanical cable retention Sealing is provided on the cable outer sheath . The Raiden A2 range of industrial cable glands is designed and tested as per BS6121:Part1:1989. It meets the requirement of EN 50262:1999.

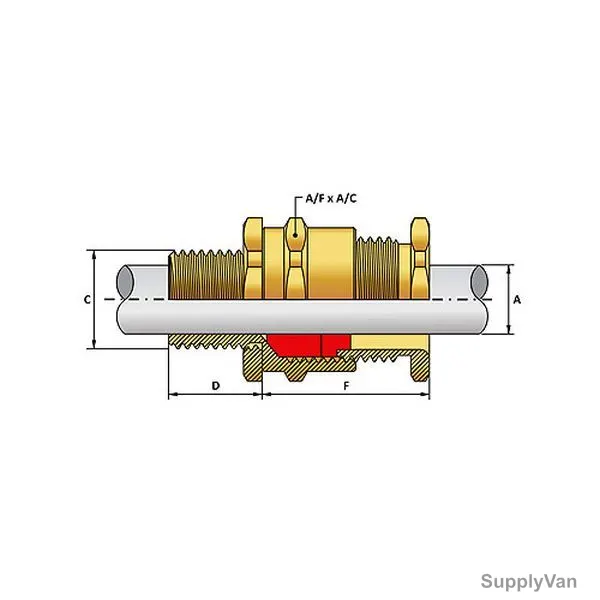

- Sealing Areas: Cable Outer Sheath
- Diameter C: 40mm
- Length Minimum E: 15mm
- Diameter "A" Max: 26.00 - 32.20
- Diameter "B" Max: 33.00 - 40.50
- Armor Diameter: 1.60/2.00
- Across Flat D: 49.50mm
- Acoss Corner: 56mm
