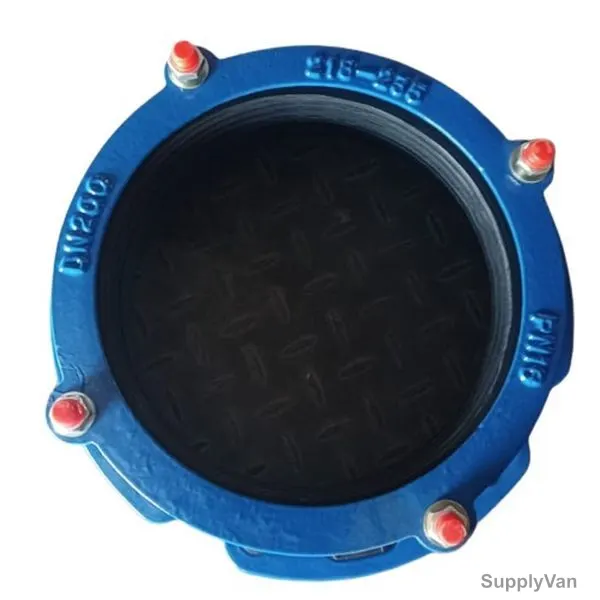

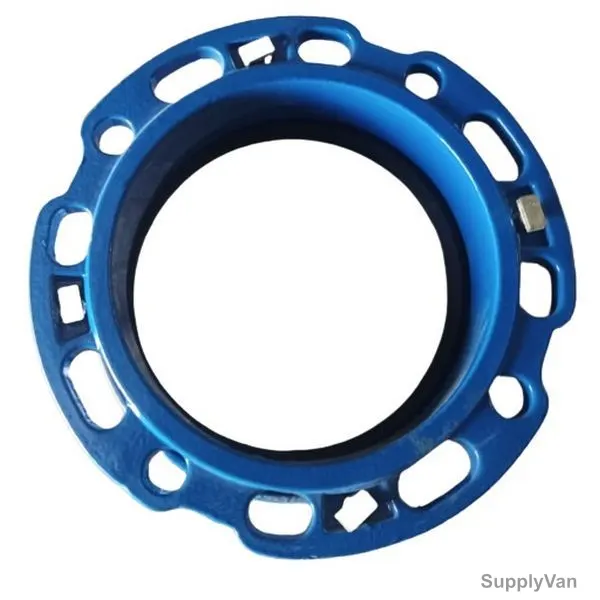

San Universal Flange Adaptor, DN200, 8 Inch Inner Dia, 218-235MM Outer Dia, PN16 Working Pressure
(No reviews yet)
Write a Review
- Brand:
- San
- SKU:
- 727186594434
- Minimum Purchase:
- 1 unit
- Item Name:
- Flange Adaptor
- Model:
- DN200
- Manufacturer:
- San
- Color:
- Blue
- Inner Diameter (MilliMeter):
- 8 Inch
- Outer Diameter (MilliMeter):
- 218-235mm
- Working Pressure:
- PN16
- Temperature Range:
- -10 to 70 Deg.C
- Coating:
- FBE Epoxy
- Length:
- 85mm
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
- Suitable for portable water, neutral liquids and sewage, wide range of pipe diameters
- WRAS approved
- Corrosion resistant structure
- The total angle deviation is +-4 Deg
- Flange drilling with BS or ANSI standard
- GD8.8, Stainless steel, dacromet bolt
- Standards: Flange : EN 1092-2, Coating: EN30677, Test: EN 12266-1
Item Name: |
Flange Adaptor |
Model: |
DN200 |
Manufacturer: |
San |
Color: |
Blue |
Inner Diameter (MilliMeter): |
8 Inch |
Outer Diameter (MilliMeter): |
218-235mm |
Working Pressure: |
PN16 |
Temperature Range: |
-10 to 70 Deg.C |
Coating: |
FBE Epoxy |
Length: |
85mm |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
