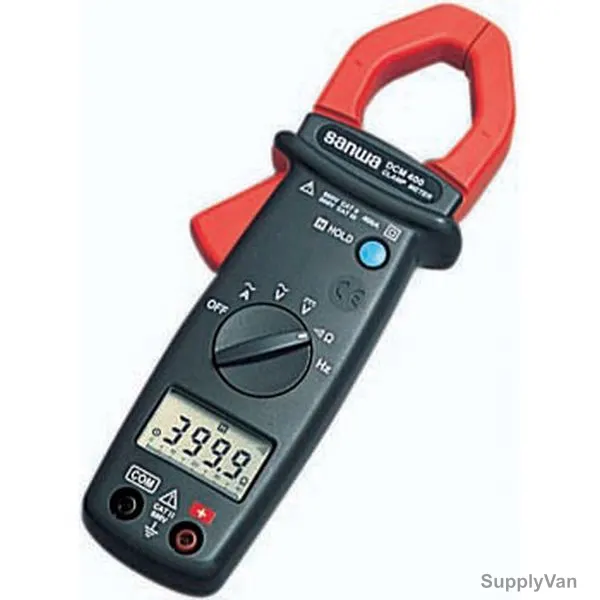

Sanwa Clamp Meter, DCM400, 25MM Jaw, 600VAC
- Brand:
- Sanwa
- SKU:
- 417944949722
- Minimum Purchase:
- 1 unit
- Item Name:
- Clamp Meter
- Model:
- DCM400
- Manufacturer:
- Sanwa
- Resistance Accuracy:
- +/-(1.0%+2)
- AC Voltage Accuracy:
- +/- (1.5%+5)
- DC Voltage Accuracy:
- +/-(1%+2)
- Measuring Current Range - AC:
- 40/400A
- Measuring Resistance Range:
- 200mohm
- Storage Temperature:
- -10 to 60 Deg.C (>70% RH)
- Frequency Accuracy:
- +/-(0.1%+1)
- Measuring Voltage Range - AC:
- 600V
- Measuring Voltage Range - DC:
- 400mV-600V
- Measuring Frequency Range:
- 4k-1MHz
- Battery Type:
- R03 x 2
- Conductor Size:
- 10 x 34 mm
- Width (MilliMeter):
- 50 mm
- Height (MilliMeter):
- 193 mm
- Depth:
- 28 mm
- Bandwidth:
- 50 to 60Hz(ACA : 1.9%±5), 60 to 500Hz(ACA : 2.5%±5), 50 to 500Hz(ACV : 1.5%±5)
- Display Type:
- Numerical
- Brand Origin (not manufacture):
- Japan
- Product Size L x B x H (Cms):
- 5L x 2.8B x 19.3H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
This instrument is an AC clamp meter designed for the IEC measurement category CAT. III 300V, and it is suitable for measuring low-voltage circuits.
Items Included:
Test lead(TL-23a), Carrying Case(C-DCM400), Instruction manual
View AllClose
- 4000 count, 42 segment analog bar graph
- Frequency measurement by clamping and using test lead
- Data hold
- Continuity check buzzer
- Auto power off (30min.)
- Low battery power indication
- Sampling rate : 2 times/sec. for numeral display
- Clamp Diameter: 25 mm
Items Included:
Test lead(TL-23a), Carrying Case(C-DCM400), Instruction manual
Item Name: |
Clamp Meter |
Model: |
DCM400 |
Manufacturer: |
Sanwa |
Resistance Accuracy: |
+/-(1.0%+2) |
AC Voltage Accuracy: |
+/- (1.5%+5) |
DC Voltage Accuracy: |
+/-(1%+2) |
Measuring Current Range - AC: |
40/400A |
Measuring Resistance Range: |
200mohm |
Storage Temperature: |
-10 to 60 Deg.C (>70% RH) |
Frequency Accuracy: |
+/-(0.1%+1) |
Measuring Voltage Range - AC: |
600V |
Measuring Voltage Range - DC: |
400mV-600V |
Measuring Frequency Range: |
4k-1MHz |
Battery Type: |
R03 x 2 |
Conductor Size: |
10 x 34 mm |
Width (MilliMeter): |
50 mm |
Height (MilliMeter): |
193 mm |
Depth: |
28 mm |
Bandwidth: |
50 to 60Hz(ACA : 1.9%±5), 60 to 500Hz(ACA : 2.5%±5), 50 to 500Hz(ACV : 1.5%±5) |
Display Type: |
Numerical |
Brand Origin (not manufacture): |
Japan |
Product Size L x B x H (Cms): |
5L x 2.8B x 19.3H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
