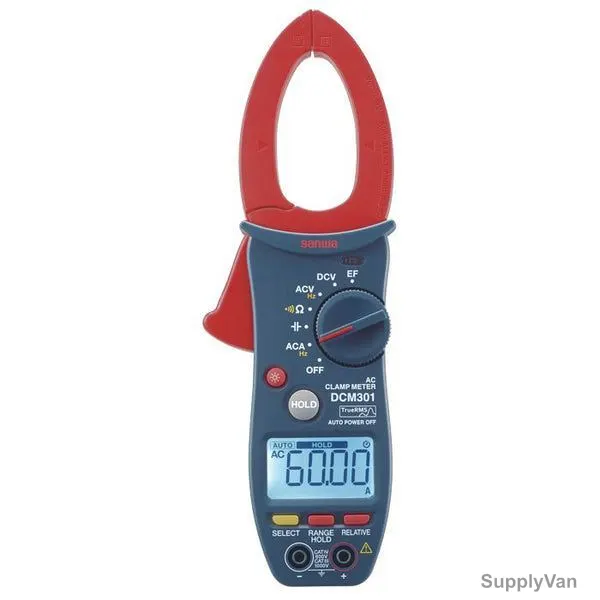

Sanwa Digital AC Clamp Meter, DCM301, 1000A
- Brand:
- Sanwa
- SKU:
- 296961549596
- Minimum Purchase:
- 1 unit
- Item Name:
- Clamp Meter
- Model:
- DCM301
- Manufacturer:
- Sanwa
- Color:
- Red and Black
- Clamp Diameter:
- 34mm
- Sampling Rate:
- 3 times/sec
- Dimensions:
- 25.2 x 8.5 x 4cm
- Measuring Current Range - AC:
- 1000A
- Battery Life:
- 200 Hrs
- Conductor Size:
- 10 x 64mm
- Battery Type:
- LR03x3
- Capacitance:
- 60.00n/600.0n/6.000µ/60.00µ/600.0µ/6.000m/60.00mF
- Resistance:
- 6.000k/60.00k/600.0k/6.000M/60.00Mohm
- Brand Origin (not manufacture):
- Japan
- Standards:
- IEC61010 CAT.IV 600V/CAT. III 1000V
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
This compact and feature-rich device is designed to accurately measure electrical currents without the need for direct contact with live wires, ensuring both safety and convenience. Equipped with advanced True RMS technology, the DCM301 delivers precise readings even in noisy electrical environments, making it ideal for troubleshooting electrical systems in residential, commercial, and industrial settings. With its easy-to-read, backlit LCD display and intuitive interface, the Sanwa DCM301 Clamp Meter allows users to measure AC/DC current, voltage, resistance, and continuity. Its innovative clamp design enables quick and hassle-free measurements, while the hold function freezes the displayed value for quick reference. The meter also boasts a built-in non-contact voltage detector, providing an added layer of safety by alerting users to the presence of voltage before making measurements. Compact, reliable, and packed with essential features, the Sanwa DCM301 Clamp Meter is the go-to choice for accurate and efficient electrical measurements in any application.
View AllClose
- The CT shape makes it easier to clamp cable in crowded
- An electric field (EF) function is incorporated in the tip of the CT to enable detection of about AC 90V or more
- Large, easy-to -press hold button
- Equipped with LED light to illuminate the measurement target
- ACA: 60/600/1000A, ACV: 6/60/600/1000V, DCV: 6/60/600/1000V
- Frequency: ACV 10Hz-10kHz, ACA 10Hz-2kHz
- Continuity: Buzzer sounds below 30ohm Open voltage: approx. 1V or less
- Bandwidth: ACA 45-400Hz ACV 45Hz-1kHz
Item Name: |
Clamp Meter |
Model: |
DCM301 |
Manufacturer: |
Sanwa |
Color: |
Red and Black |
Clamp Diameter: |
34mm |
Sampling Rate: |
3 times/sec |
Dimensions: |
25.2 x 8.5 x 4cm |
Measuring Current Range - AC: |
1000A |
Battery Life: |
200 Hrs |
Conductor Size: |
10 x 64mm |
Battery Type: |
LR03x3 |
Capacitance: |
60.00n/600.0n/6.000µ/60.00µ/600.0µ/6.000m/60.00mF |
Resistance: |
6.000k/60.00k/600.0k/6.000M/60.00Mohm |
Brand Origin (not manufacture): |
Japan |
Standards: |
IEC61010 CAT.IV 600V/CAT. III 1000V |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
