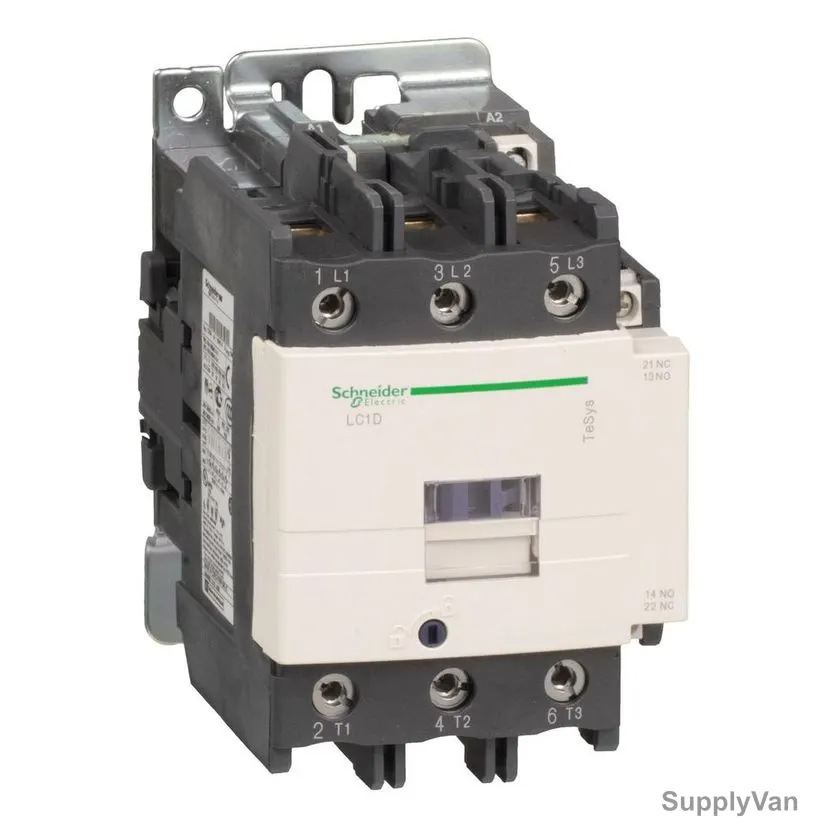

Schneider Electric Contactor, LC1D80M7, 220VAC, 3 Pole, 3 NO, 80A
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 793859937876
- Minimum Purchase:
- 1 unit
- Item Name:
- Contactor
- Model:
- LC1D80M7
- Manufacturer:
- Schneider Electric
- Input Voltage:
- 220-440VAC
- Height (MilliMeter):
- 127mm
- Width (MilliMeter):
- 85mm
- Depth:
- 130mm
- Amps (A):
- 80A
- Frequency:
- 50/60Hz
- Application:
- Motor control Resistive load
- Brand Origin (not manufacture):
- France
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Schneider Electric Contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).
View AllClose
Item Name: |
Contactor |
Model: |
LC1D80M7 |
Manufacturer: |
Schneider Electric |
Input Voltage: |
220-440VAC |
Height (MilliMeter): |
127mm |
Width (MilliMeter): |
85mm |
Depth: |
130mm |
Amps (A): |
80A |
Frequency: |
50/60Hz |
Application: |
Motor control Resistive load |
Brand Origin (not manufacture): |
France |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
