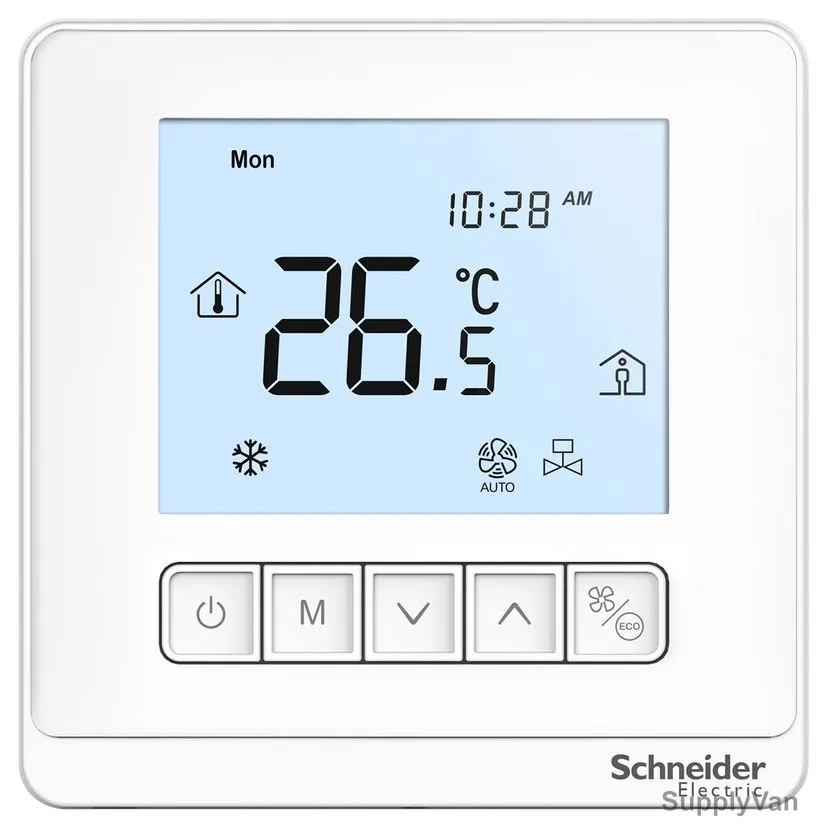

Schneider Electric Fan Coil Thermostat, TC903-3A2L, Spacelogic TC900 Series, 2P, Backlit LCD, 240VAC, 5 to 35 Deg.C, White
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 624754219327
- Minimum Purchase:
- 0 units
- Item Name:
- Fan Coil Thermostat
- Model:
- TC903-3A2L
- Product Series:
- Spacelogic TC900 Series
- Manufacturer:
- Schneider Electric
- Color:
- White
- Height (MilliMeter):
- 86mm
- Depth:
- 40mm
- Width (MilliMeter):
- 86mm
- Power Consumption:
- 1W
- Number of Poles:
- 2P
- Output Voltage:
- 240VAC
- Frequency:
- 50-60 Hz
- Terminal Type:
- Screw
- Sensor Technology:
- NTC Thermistor
- Temperature Range (Degree Celsius):
- 5 to 35 Deg.C
- For Use With:
- 2 pipe or 4 pipe application
- Ingress Protection (IP Rating):
- IP20
- Relative Humidity:
- 5-95%
- Functions:
- Setpoint adjustment, Fan control, Mode selection, Economiser, Disable functions, Alarm, Low temperature protection
- Display Type:
- Backlit LCD
- Control Type:
- Thermostat: Mechanical, Actuator: 2 positions On-Off button, Fan: 3 speed control relay
- Application Area:
- Small buildings, Hotel, Healthcare, Residential
- Brand Origin (not manufacture):
- France
- Standards:
- 18806,18807
- Certification:
- CE
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Spacelogic TC900 Series fan coil thermostats are optimized for office building, hotel, hospital and residential applications. The thermostats can be used for 2 pipe or 4 pipe application to control HVAC applications. TC900 series products are easy to operate and install, provides a microprocessor based control and large LCD display. Display operation status (cooling, heating, and ventilation), fan speed, room temperature and set-point alongwith other features.
View AllClose
- Features such as Eco button, sleep mode etc designed to maximise energy savings
- White glass housing with mechnical button and large LCD display for better visibility
- Products are designed for standard BS wall box installation
- TC900 series thermostats are CE, RCM, UKCA, and EAC certified
- The products and designed for easy installation and operation
- Standalone thermostat to display and control fan coil based HVAC applications
- Information Displayed: Ambient room temperature 0 to 50 Deg.C, Time, Day, Temperature alarm, Communication status ok, Current program
- Measurement Accuracy: +/- 1 Deg.C
