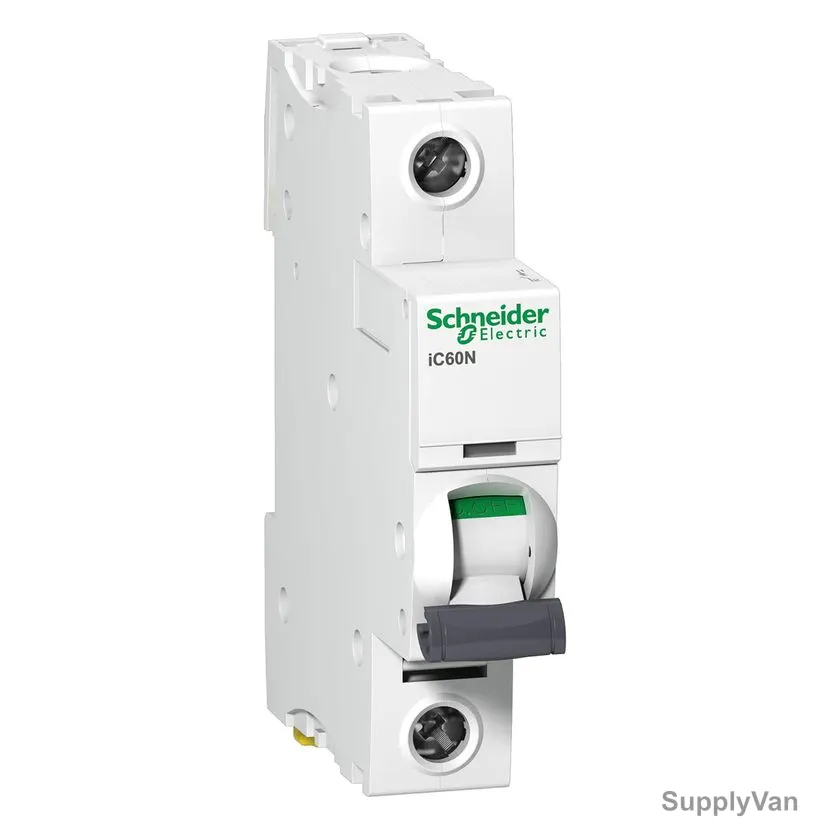

Schneider Electric iC60N Miniature Circuit Breaker, A9F44106, 1P, Curve, C, 6A

(No reviews yet) Write a Review
Brand:
Schneider Electric
SKU:
828652948225
Minimum Purchase:
1 unit
Item Name:
Miniature Circuit Breaker
Model:
A9F44106
Product Series:
Acti9
Manufacturer:
Schneider Electric
Color:
White
Height (MilliMeter):
85mm
Width (MilliMeter):
18mm
Curve Type:
C
Frequency:
50/60 Hz
Trip Type:
Thermal-magnetic
Relative Humidity:
95% at 55 Deg.C
Number of Poles:
1P
Depth:
78.5mm
Control Type:
Toggle
Operating Ambient Temperature (Degree Celsius):
-35 to 70 Deg.C
Current:
6A
Insulation Voltage:
500VAC
Operational Voltage:
240VAC
Ingress Protection (IP Rating):
IP20
Storage Temperature:
-40 to 85 Deg.C
Brand Origin (not manufacture):
France
Standards:
3221,16654
Certification:
CE
Warranty (Subject to Conditions):
18 Months
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
AED19.00

Description

This Acti9 iC60N is a low-voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 6A rated current, and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 6000A at 240VAC conforming to EN/IEC 60898-1 standard. This miniature circuit breaker protects circuits against short circuits and overload currents. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui-rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost.
  • Network Type: AC
  • Utilisation Category: Category A conforming to EN/IEC 60947-2
  • Magnetic Tripping Limit: 8 x In +/- 20%
  • Limitation Class: 3
  • Rated Impulse Withstand Voltage: 6 kV
  • Local Signalling: Trip indicator
  • Mounting Mode: Clip-On
  • Mounting Support: Rail
  • 9mm Pitches: 2
  • Mechanical Durability: 20000 cycles
  • Electrical Durability: 10000 cycles
  • Provision for Padlocking: Padlockable
  • Wire Stripping Length: 14mm for top or bottom connection
  • Tightening Torque: 2 Nm
  • Earth-leakage Protection: Separate block
