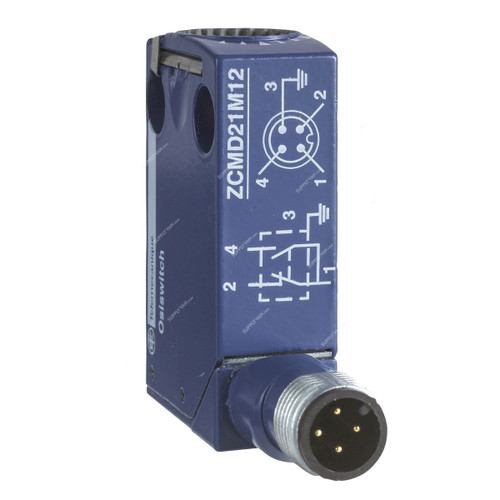

Schneider Electric Limit Switch Body, ZCMD21C12, 2P, 1NC+1NO, 5-Pin, M12 Male Connector

(No reviews yet) Write a Review
Brand:
Schneider Electric
SKU:
111879351547
Minimum Purchase:
1 unit
Item Name:
Limit Switch Body
Model:
ZCMD21C12
Manufacturer:
Schneider Electric
Color:
Blue
Width (MilliMeter):
30mm
Height (MilliMeter):
50mm
Depth:
16mm
Body Material:
Zamak
Body Type:
Fixed
Number of Poles:
2P
Number of Contacts:
1NC+1NO
Connection Type:
M12 Male
Contact Form:
Zb
Insulation Voltage:
60V
For Use With:
Schneider Electric XCMD Series Limit Switches
Operating Ambient Temperature (Degree Celsius):
-40 to 70 Deg.C
Brand Origin (not manufacture):
France
Certification:
5947,14528
Warranty (Subject to Conditions):
18 Months
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
AED100.00

Available on Request

Description

ZC products are part of the XC standard range, an offer of limit switches. The ZCMD21C12 is a limit switch body compatible with the ranges XCMD and XCMV. This limit switch body has 1 normally closed + 1 normally open snap action silver plated contacts, and its minimum actuation speed is 0.01m/min. It connects through a 5-pin male M12 connector. This limit switch body is made of zamak and it weighs 0.065kg. This product can be used to assemble a limit switch adapted to your needs or used as a spare part. The ZC range makes the XC limit switches modular by giving you the possibility to assemble the product that best suits your needs.
  • Reduce your stock of limit switch spare parts by storing only key components
  • Can be matched with other ZC components from the XCMD and XCMV ranges
  • Can be matched with any head, actuator or connector from the XCKD, XCKP and XCKT ranges
  • Contact Operation: Snap Action
  • Contacts Material: Silver Plated
  • Minimum Actuation Speed: 0.01 m/min
  • Rated Operational Current: 0.22A at 50V, DC-13 conforming to EN/IEC 60947-5-1 appendix A; 3A at 50V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
  • Conventional Enclosed Thermal Current: 4A
  • Maximum Resistance Across Terminals: 25 mOhm
  • Rated Impulse Withstand Voltage: 0.8kV
  • Short-Circuit Protection: 4A cartridge fuse, type gG
Item Name:
Limit Switch Body
Model:
ZCMD21C12
Manufacturer:
Schneider Electric
Color:
Blue
Width (MilliMeter):
30mm
Height (MilliMeter):
50mm
Depth:
16mm
Body Material:
Zamak
Body Type:
Fixed
Number of Poles:
2P
Number of Contacts:
1NC+1NO
Connection Type:
M12 Male
Contact Form:
Zb
Insulation Voltage:
60V
For Use With:
Schneider Electric XCMD Series Limit Switches
Operating Ambient Temperature (Degree Celsius):
-40 to 70 Deg.C
Brand Origin (not manufacture):
France
Certification:
5947,14528
Warranty (Subject to Conditions):
18 Months
Delivery Time:
2-7 Days
Unit:
Piece
