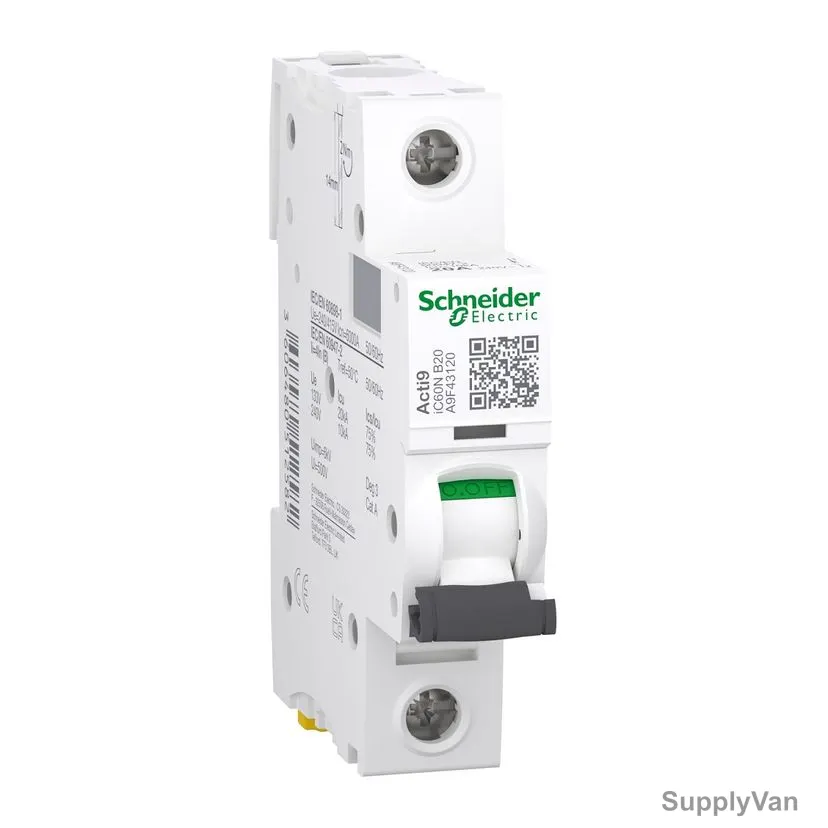

Schneider Electric Miniature Circuit Breaker, A9F43120, Acti9 iC60N, 1P, Curve B, 20A
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 179534187472
- Minimum Purchase:
- 1 unit
- Item Name:
- Miniature Circuit Breaker
- Model:
- A9F43120
- Product Series:
- Acti9 iC60N
- Manufacturer:
- Schneider Electric
- Color:
- White
- Frequency:
- 50/60 Hz
- Operation Temperature:
- -35 to +70 Deg.C
- Curve Type:
- B
- Number of Poles:
- 1 Pole
- Amps (A):
- 20A
- Voltage:
- 220-240V
- Insulation Voltage:
- 6 kV
- Breaking Capacity:
- 6-10 kA
- Ingress Protection (IP Rating):
- IP20
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Schneider Electric A9F43120 Acti9 iC60N is a high-performance miniature circuit breaker designed for reliable protection of electrical circuits against overload and short-circuit conditions. Built for both residential and industrial applications, it complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring safe and efficient operation. It features advanced protection technologies like VisiTrip for quick fault detection and VisiSafe for secure isolation, making maintenance faster and safer. The compact DIN rail-mount design allows easy installation in distribution boards, while its robust construction ensures long service life and high electrical endurance.
View AllClose
- 1 Pole (1P) MCB with 20A rated current
- B Curve tripping characteristic for residential/light commercial loads
- Dual standard compliance: IEC/EN 60898-1 & IEC/EN 60947-2
- Short circuit breaking capacity: 6kA / 10kA
- VisiTrip indicator for quick fault identification
- VisiSafe green strip for safe isolation verification
- High endurance: up to 10,000 electrical cycles
- Fast closing mechanism for improved lifespan
- DIN rail mounting for easy installation
- Compact modular design (18 mm width)
Item Name: |
Miniature Circuit Breaker |
Model: |
A9F43120 |
Product Series: |
Acti9 iC60N |
Manufacturer: |
Schneider Electric |
Color: |
White |
Frequency: |
50/60 Hz |
Operation Temperature: |
-35 to +70 Deg.C |
Curve Type: |
B |
Number of Poles: |
1 Pole |
Amps (A): |
20A |
Voltage: |
220-240V |
Insulation Voltage: |
6 kV |
Breaking Capacity: |
6-10 kA |
Ingress Protection (IP Rating): |
IP20 |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
