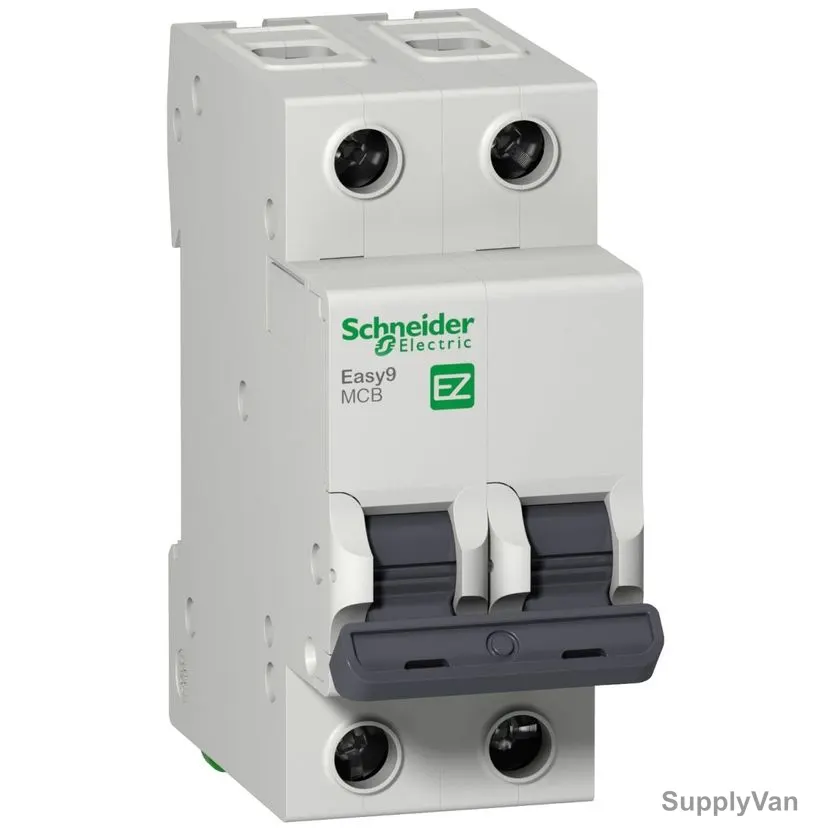

Schneider Electric Miniature Circuit Breaker, Easy9, 2P, Curve C, 20A

(No reviews yet) Write a Review
Brand:
Schneider Electric
SKU:
449439654367
Minimum Purchase:
0 units
Item Name:
Miniature Circuit Breaker
Model:
EZ9F56220
Product Series:
Easy9
Manufacturer:
Schneider Electric
Color:
Grey
Torque (Nm):
2 Nm
Height (MilliMeter):
81mm
Width (MilliMeter):
36mm
Curve Type:
C
Frequency:
50/60Hz
Number of Poles:
2P
Depth:
66.5mm
Mounting Type:
Clip-On
Control Type:
Toggle
Operating Ambient Temperature (Degree Celsius):
-5 to 60 Deg.C
Amps (A):
20A
Insulation Voltage:
500VAC
Operational Voltage:
220-400VAC
Breaking Capacity:
10000A at 220VAC; 6000A at 400VAC
Ingress Protection (IP Rating):
IP20
Storage Temperature:
-40 to 85 Deg.C
Terminal Type:
Tunnel
Application:
Use in a range of applications to provide short-circuit and cable overload protection
Brand Origin (not manufacture):
France
Standards:
IEC 60898-1
Certification:
CE
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Schneider Electric Miniature Circuit Breaker, Easy9, 2P, Curve C, 20A
  • Schneider Electric Miniature Circuit Breaker, Easy9, 2P, Curve C, 20A
  • Schneider Electric Miniature Circuit Breaker, Easy9, 2P, Curve C, 20A
  • Schneider Electric Miniature Circuit Breaker, Easy9, 2P, Curve C, 20A
AED29.00

Description

This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles and 20A In rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 220VAC conforming to IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is dedicated for residential and small commercial buildings.
  • Providing protection when you most need it, the miniature circuit breakers give you high levels of protection from short circuits and cable overload whilst providing a user-friendly interface to make them as accessible as possible
  • Highly accessible user-friendly design
  • Designed for modular devices, the miniature circuit breakers ensure protection from short circuits and cable overload
  • Resulting from close work with electricians worldwide, they provide enhanced protection as well as peace of mind to customers
  • Enhanced protection to pass on to your customers
  • Designed with ease of installation in mind
  • Suitable for modular devices
  • Trip Unit Technology: Thermal-Magnetic
  • Magnetic Tripping Limit: 5-10 x In
  • Rated Impulse Withstand Voltage: 4kV conforming to IEC 60898-1
  • Mounting Support: DIN Rail
  • 9mm Pitches: 4
  • Mechanical Durability: 10000 cycles
  • Electrical Durability: 4000 cycles
Item Name:
Miniature Circuit Breaker
Model:
EZ9F56220
Product Series:
Easy9
Manufacturer:
Schneider Electric
Color:
Grey
Torque (Nm):
2 Nm
Height (MilliMeter):
81mm
Width (MilliMeter):
36mm
Curve Type:
C
Frequency:
50/60Hz
Number of Poles:
2P
Depth:
66.5mm
Mounting Type:
Clip-On
Control Type:
Toggle
Operating Ambient Temperature (Degree Celsius):
-5 to 60 Deg.C
Amps (A):
20A
Insulation Voltage:
500VAC
Operational Voltage:
220-400VAC
Breaking Capacity:
10000A at 220VAC; 6000A at 400VAC
Ingress Protection (IP Rating):
IP20
Storage Temperature:
-40 to 85 Deg.C
Terminal Type:
Tunnel
Application:
Use in a range of applications to provide short-circuit and cable overload protection
Brand Origin (not manufacture):
France
Standards:
IEC 60898-1
Certification:
CE
Delivery Time:
2-7 Days
Unit:
Piece
