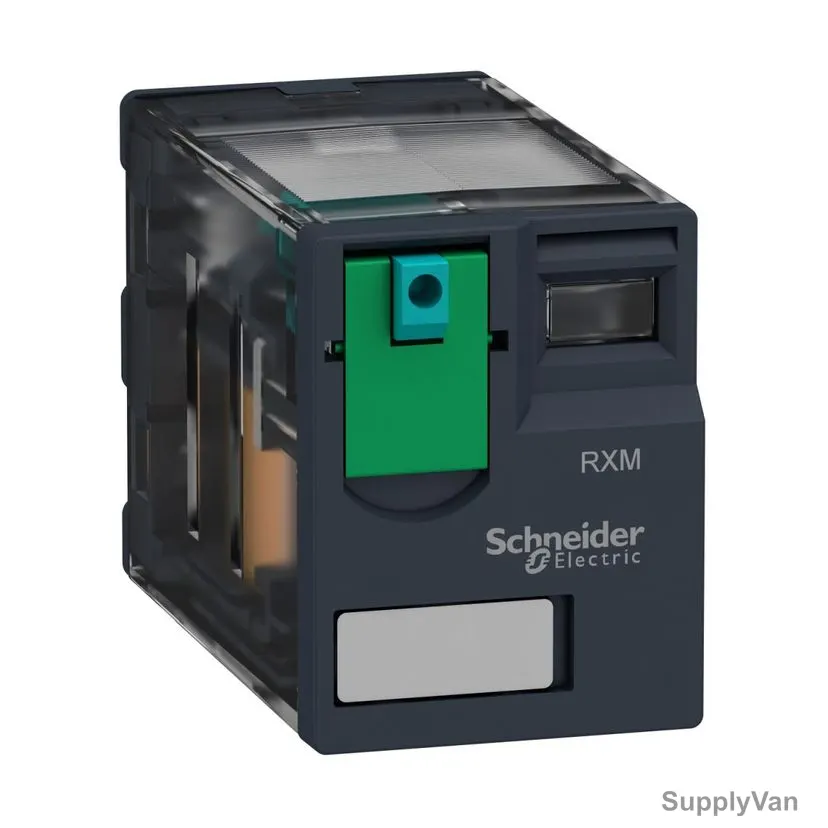

Schneider Electric Miniature Plug-In Relay, RXM3AB1BD, 3 CO, 24VDC, 10A
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 286978987648
- Minimum Purchase:
- 1 unit
- Item Name:
- Plug-In Relay
- Model:
- RXM3AB1BD
- Product Series:
- Miniature
- Manufacturer:
- Schneider Electric
- Output Voltage:
- 24VDC
- Output Current:
- 6.7A
- Amps (A):
- 10A
- Ingress Protection (IP Rating):
- IP40
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
RXM Miniature Relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 3 C/O relay with current rating of 10A, control circuit voltage of 24 VDC. It also offers one-step lockable test button and mechanical indicator for contact status. The test button is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the test button, where an orange flag indicates the relay contact status. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls.
View AllClose
- Harmony electromechanical relays
- Lockable test button
- Mechanical durability: 10000000 cycles
- Maximum switching capacity: 2500 VA/280W
- Minimum switching capacity: 170mW at 10mA, 17V
- Ambient air temperature for storage: - 40 to 85 Deg.C
- Ambient air temperature for storage: - 40 to 55 Deg.C
Item Name: |
Plug-In Relay |
Model: |
RXM3AB1BD |
Product Series: |
Miniature |
Manufacturer: |
Schneider Electric |
Output Voltage: |
24VDC |
Output Current: |
6.7A |
Amps (A): |
10A |
Ingress Protection (IP Rating): |
IP40 |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
