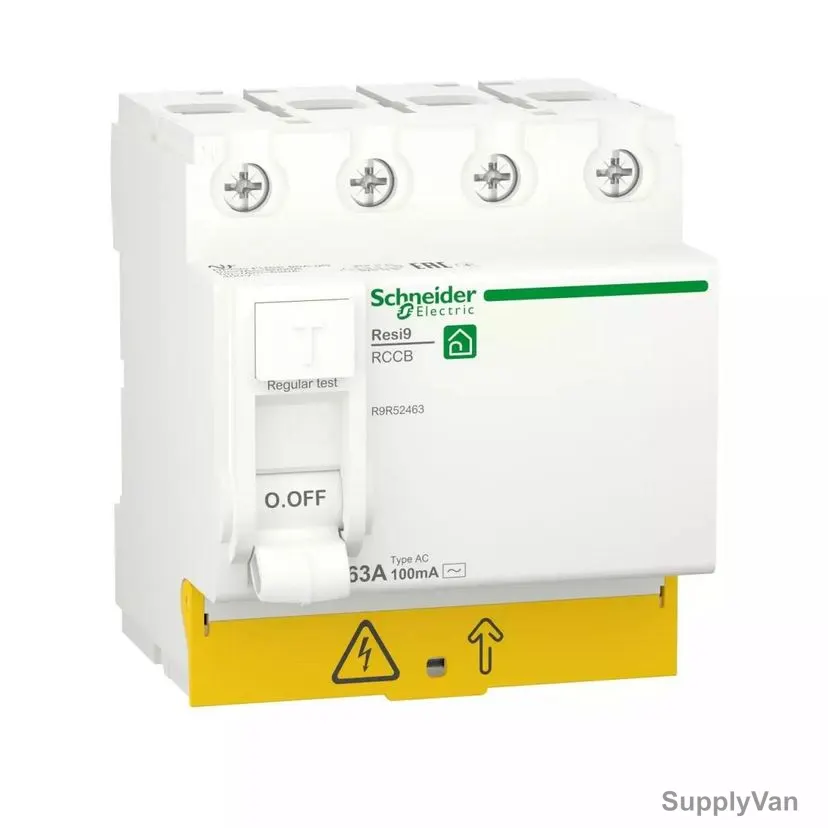

Schneider Electric Residual Current Circuit Breaker, R9R52463, Resi9, 4P, 63A, 100mA
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 598479437961
- Minimum Purchase:
- 1 unit
- Item Name:
- Residual Current Circuit Breaker
- Product Series:
- Resi9
- Manufacturer:
- Schneider Electric
- Color:
- White
- Depth:
- 73mm
- Width:
- 72mm
- Height:
- 82mm
- Manufacture Part Number:
- R9R52463
- Relative Humidity:
- 95 Percent at 55 Deg.C
- Amps (A):
- 63A
- Insulation Voltage:
- 440V
- Operational Voltage:
- 400VAC
- Breaking Capacity:
- 100mA
- Storage Temperature (Degree Celsius):
- -40 to 85 Deg.C
- Torque (Nm):
- 3.5-3.5 N.m Top or Bottom
- Mounting Type:
- DIN Rail
- Ingress Protection (IP Rating):
- IP20
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Schneider Electric Residual Current Circuit Breaker (RCCB) is designed for enhanced electrical safety by detecting and interrupting leakage currents. This 4-pole RCCB has a rated current of 63A and a sensitivity of 100mA, providing reliable protection against electrical shocks and fire hazards caused by earth faults. Ideal for residential and commercial installations, it ensures compliance with electrical safety standards. The compact design allows for easy installation in distribution panels, making it a trusted choice for circuit protection.
View AllClose
- It is a 4P circuit breaker with In rated current of 63A, AC type protection class and a 100mA earth leakage sensitivity
- This product protects against electrical shock by direct or indirect contact and fire hazards
- As an high sensitivity residual current circuit breaker, it is recommended for all power sockets
- It is also compulsory for all equipment in bathrooms, outdoors
- The Resi9 is targeted to the residential market for individual and collective buildings
- The electrical endurance is up to 10000 cycles
- The mechanical endurance is up to 20000 cycles
- The width in 9mm pitches is 8
- It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard
Item Name: |
Residual Current Circuit Breaker |
Product Series: |
Resi9 |
Manufacturer: |
Schneider Electric |
Color: |
White |
Depth: |
73mm |
Width: |
72mm |
Height: |
82mm |
Manufacture Part Number: |
R9R52463 |
Relative Humidity: |
95 Percent at 55 Deg.C |
Amps (A): |
63A |
Insulation Voltage: |
440V |
Operational Voltage: |
400VAC |
Breaking Capacity: |
100mA |
Storage Temperature (Degree Celsius): |
-40 to 85 Deg.C |
Torque (Nm): |
3.5-3.5 N.m Top or Bottom |
Mounting Type: |
DIN Rail |
Ingress Protection (IP Rating): |
IP20 |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
