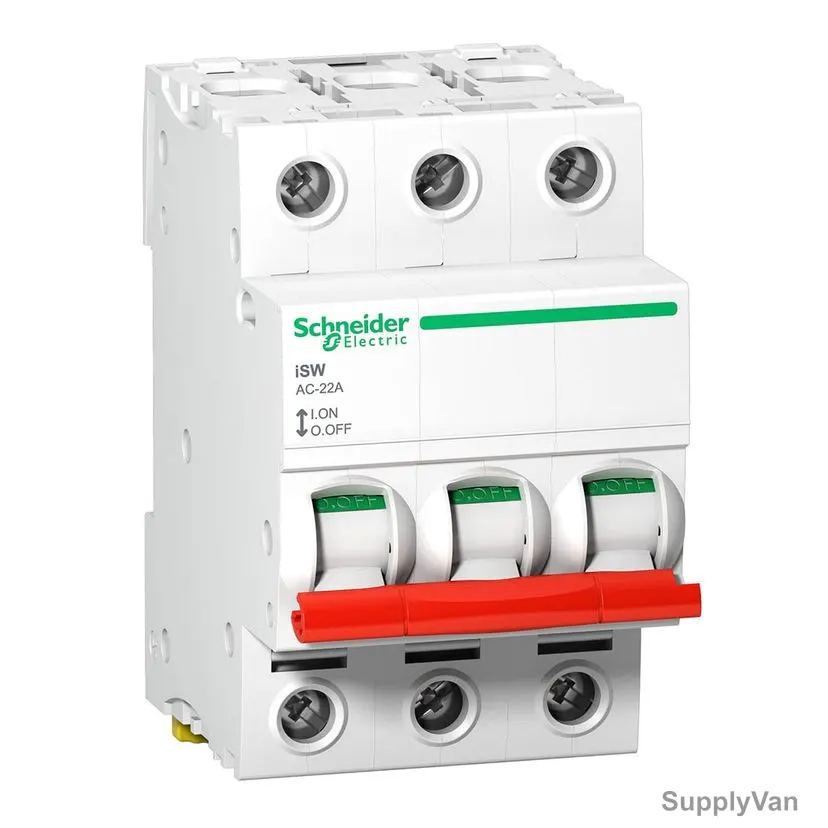

Schneider Electric Switch Disconnector, A9S66340, Acti9 iSW, 3P, 40A, 415VAC

(No reviews yet) Write a Review
Brand:
Schneider Electric
SKU:
177828189135
Minimum Purchase:
1 unit
Item Name:
Switch Disconnector
Model:
A9S66340
Product Series:
Acti9 iSW
Manufacturer:
Schneider Electric
Color:
White
Number of Poles:
3P
Frequency:
50/60Hz
Height (MilliMeter):
85mm
Width (MilliMeter):
54mm
Depth:
73mm
Operating Ambient Temperature (Degree Celsius):
-25 to 60 Deg.C
Insulation Voltage:
500VAC
Ingress Protection (IP Rating):
IP20
Storage Temperature:
-40 to 85 Deg.C
Current:
40A
Control Type:
Toggle
Operational Voltage:
415VAC
Brand Origin (not manufacture):
France
Warranty (Subject to Conditions):
18 Months
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
AED58.00

Description

The Schneider Electric Switch Disconnector, Acti9 iSW, is a high-quality and reliable electrical switch designed for use in a range of applications. It is a 3-pole switch disconnector, which means that it can be used to disconnect four electrical circuits simultaneously. The switch disconnector has a current rating of 40A and a maximum voltage rating of 415VAC. It is designed to be used in industrial and commercial environments and is ideal for use in motor control centers, distribution boards, and switchboards. The Acti9 iSW switch disconnector is built to the highest standards of quality and safety, with a robust and durable design that ensures its longevity and reliability. It features a compact and modular design that makes it easy to install and integrate into existing electrical systems.
  • Utilisation Category: AC-22A
  • Rated Short-Circuit Making Capacity: 4.2 kA switch-disconnector alone
  • Rated Short-Circuit Withstand Current: 1260A
  • Rated Impulse Withstand Voltage: 6 kV
  • Mounting Mode: Fixed
  • Mounting Support: DIN Rail
  • 9mm Pitches: 6
  • Mechanical Durability: 20000 cycles
  • Electrical Durability: 15000 cycles
  • Wire Stripping Length: 9mm
  • Tightening Torque: 3.5 Nm
  • Standards: EN 60947-3, AS 60947-3, BS EN 60947-3, IEC 60947-3, NZS 60947-3
Item Name:
Switch Disconnector
Model:
A9S66340
Product Series:
Acti9 iSW
Manufacturer:
Schneider Electric
Color:
White
Number of Poles:
3P
Frequency:
50/60Hz
Height (MilliMeter):
85mm
Width (MilliMeter):
54mm
Depth:
73mm
Operating Ambient Temperature (Degree Celsius):
-25 to 60 Deg.C
Insulation Voltage:
500VAC
Ingress Protection (IP Rating):
IP20
Storage Temperature:
-40 to 85 Deg.C
Current:
40A
Control Type:
Toggle
Operational Voltage:
415VAC
Brand Origin (not manufacture):
France
Warranty (Subject to Conditions):
18 Months
Delivery Time:
2-7 Days
Unit:
Piece
