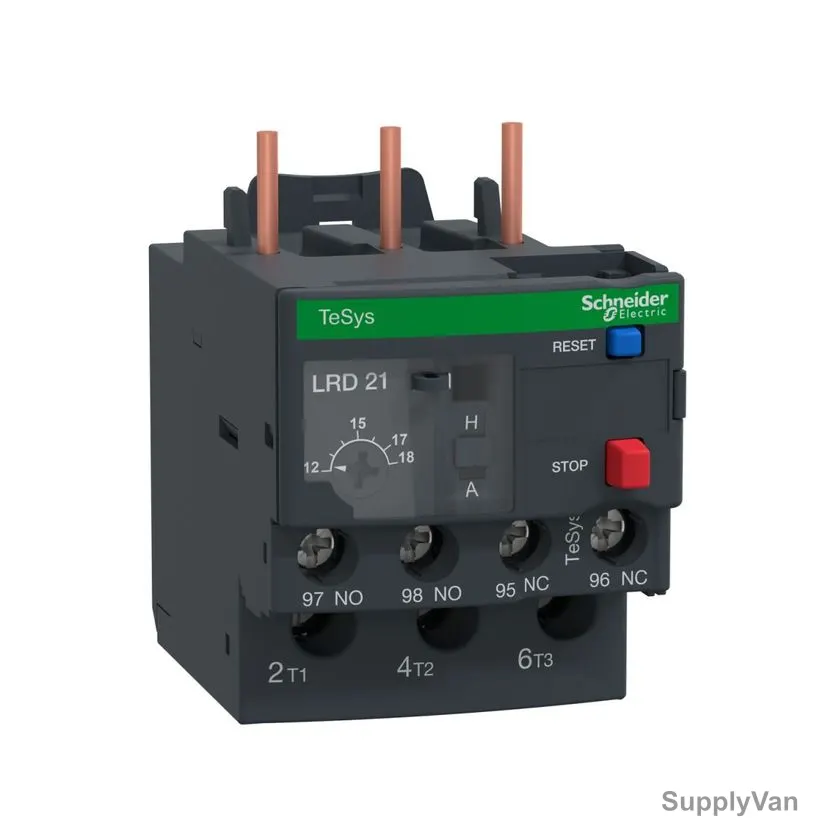

Schneider Electric Thermal Overload Relay, LRD21, TeSys LRD, 12-18A, Class 10A
(No reviews yet)
Write a Review
- Brand:
- Schneider Electric
- SKU:
- 621424691241
- Minimum Purchase:
- 1 unit
- Item Name:
- Thermal Overload Relay
- Model:
- LRD21
- Product Series:
- TeSys LRD
- Current Range:
- 12-18A
- For Use With:
- LC1D32, LC1D18, LC1D25, LC1D38 Contactors
- Manufacturer:
- Schneider Electric
- Color:
- Black
- Height (MilliMeter):
- 66mm
- Width (MilliMeter):
- 45mm
- Insulation Voltage:
- 600V
- Operational Voltage:
- 690VAC
- Depth:
- 70mm
- Control Type:
- Red push-button: stop, Blue push-button: reset
- Torque (Nm):
- 1.7 Nm (Control Unit), 2.5 Nm (Power Unit)
- Class Rating:
- 10A
- Frequency:
- 0-400 Hz
- Storage Temperature:
- -60 to 70 Deg.C
- Ingress Protection (IP Rating):
- IP20
- Mounting Type:
- Plate and Rail
- Brand Origin (not manufacture):
- France
- Warranty (Subject to Conditions):
- 18 Months
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
- Tripping Threshold: 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
- Auxiliary Contact Composition: 1 NO + 1 NC
- Conventional Free Air Thermal Current: 5A for signalling circuit
- Rated Impulse Withstand Voltage: 6 kV
Item Name: |
Thermal Overload Relay |
Model: |
LRD21 |
Product Series: |
TeSys LRD |
Current Range: |
12-18A |
For Use With: |
LC1D32, LC1D18, LC1D25, LC1D38 Contactors |
Manufacturer: |
Schneider Electric |
Color: |
Black |
Height (MilliMeter): |
66mm |
Width (MilliMeter): |
45mm |
Insulation Voltage: |
600V |
Operational Voltage: |
690VAC |
Depth: |
70mm |
Control Type: |
Red push-button: stop, Blue push-button: reset |
Torque (Nm): |
1.7 Nm (Control Unit), 2.5 Nm (Power Unit) |
Class Rating: |
10A |
Frequency: |
0-400 Hz |
Storage Temperature: |
-60 to 70 Deg.C |
Ingress Protection (IP Rating): |
IP20 |
Mounting Type: |
Plate and Rail |
Brand Origin (not manufacture): |
France |
Warranty (Subject to Conditions): |
18 Months |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
