Siglent Handheld Digital Oscilloscope, SHS820X, TFT-LCD, 2 Channels, 200 MHz

(No reviews yet) Write a Review
Brand:
Siglent
SKU:
552673431731
Minimum Purchase:
1 unit
Item Name:
Digital Oscilloscope
Model:
SHS820X
Manufacturer:
Siglent
Color:
Blue
Ingress Protection (IP Rating):
IP51
Display Size:
5.6 Inch
Display Type:
TFT-LCD
Display Resolution:
640 x 480px
Number of Channels:
2
Battery Type:
Lithium Ion
Bandwidth:
200 MHz
Brand Origin (not manufacture):
Netherlands
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Siglent Handheld Digital Oscilloscope, SHS820X, TFT-LCD, 2 Channels, 200 MHz
  • Siglent Handheld Digital Oscilloscope, SHS820X, TFT-LCD, 2 Channels, 200 MHz
  • Siglent Handheld Digital Oscilloscope, SHS820X, TFT-LCD, 2 Channels, 200 MHz
  • Siglent Handheld Digital Oscilloscope, SHS820X, TFT-LCD, 2 Channels, 200 MHz
  • Siglent Handheld Digital Oscilloscope, SHS820X, TFT-LCD, 2 Channels, 200 MHz
  • Siglent Handheld Digital Oscilloscope, SHS820X, TFT-LCD, 2 Channels, 200 MHz
  • Siglent Handheld Digital Oscilloscope, SHS820X, TFT-LCD, 2 Channels, 200 MHz
  • Siglent Handheld Digital Oscilloscope, SHS820X, TFT-LCD, 2 Channels, 200 MHz
  • Siglent Handheld Digital Oscilloscope, SHS820X, TFT-LCD, 2 Channels, 200 MHz
  • Siglent Handheld Digital Oscilloscope, SHS820X, TFT-LCD, 2 Channels, 200 MHz
AED6,057.00

Available on Request

Description

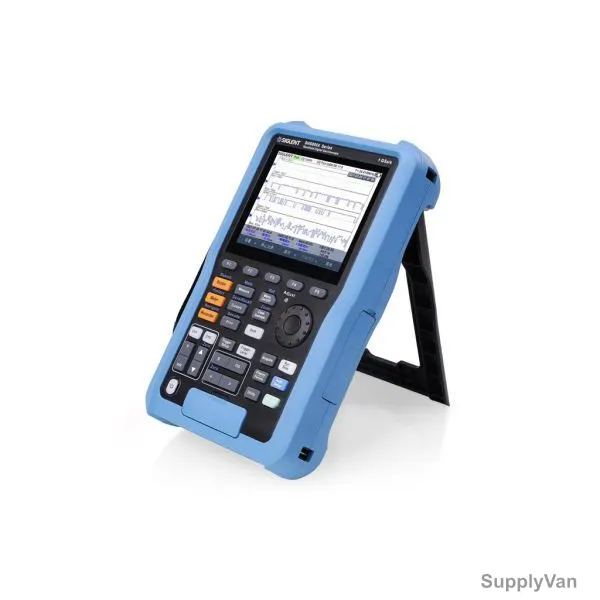

Siglent's new SHS820X is a 2 channel 200 MHz Handheld Digital Oscilloscope. The SHS820X has a single ADC with 1 GSa/s maximum sample rate, single memory module with 12 Mpts memory depth. Siglent's new SHS800X series is the great new tool for working on service and support cases in the field, outside the lab environment, the SHS800X series delivers the right performance, flexibility and robustness. The handheld multimeter, handheld oscilloscope are standard tools when it comes to signal analysis. Siglent's new SHS800X series of handheld oscilloscopes which delivers benchtop oscilloscope performance in handheld format and also supply a multimeter in the same chassis. They also offer many powerful features and long battery life in a portable, IP51 package.

  • 200 MHz bandwidth models Sample rate of 1 GSa/s (single-channel), Sample rate of 500 MSa/s (two-channels)
  • Waveform capture rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode)
  • Supports 256-level intensity grading and color temperature
  • Record length up to 12 Mpts
  • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
  • Serial bus triggering and decoding (Standard) for IIC, SPI, UART, CAN, and LIN protocols
  • Video trigger/HDTV
  • Low background noise with voltage scales from 2 mV/div to 100 V/div
  • 3 one-button shortcuts for Oscilloscope, Multimeter and Recorder functions
  • 8 one-button shortcuts for: Run/Stop, Auto Setup, Default, Measure, Cursors, Display/Persist, Clear Sweep and Print. More function shortcuts available when combined with the shift button
  • Segmented acquisition (Sequence) mode, divides the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time segment to capture the qualifying event
  • History waveform record (History) function (maximum recorded waveform length is 80,000 frames)
  • Automatic measurement function for 38 parameters as well as Measurement Statistics, Zoom, Gating, Math, History and Reference functions
  • 1 Mpts FFT. Support Peaks and Markers
  • Math and measurement functions use all sampled data points (up to 12 Mpts)
  • Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root)
  • Default key can be customized for user settings or factory "defaults"
  • Supports Multi-language display and embedded online help
  • Security Erase mode
  • Search and navigate function
  • Includes Recorder mode, including Sample and Measurement Loggers

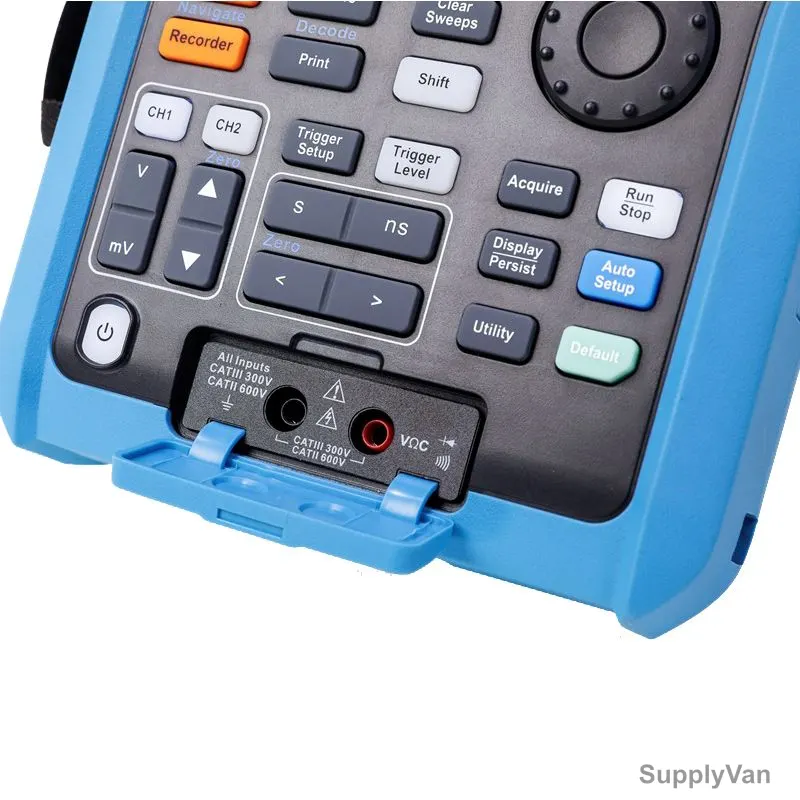

  • 6000 counts Digital Multimeter, Support DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity test
  • True RMS AC Voltage/Current measurement multimeter
  • Supports SCPI remote control commands

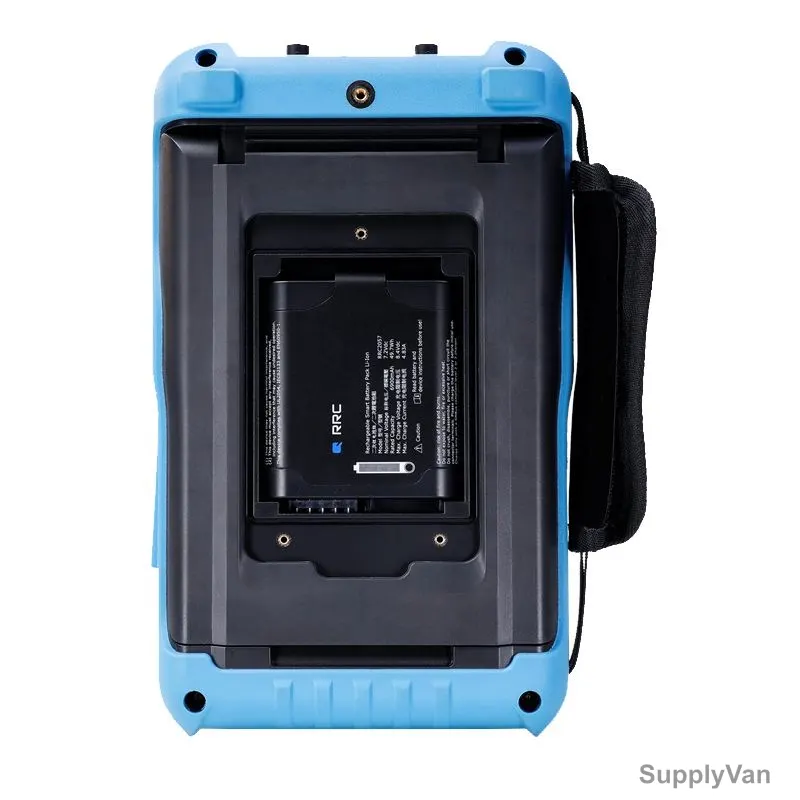

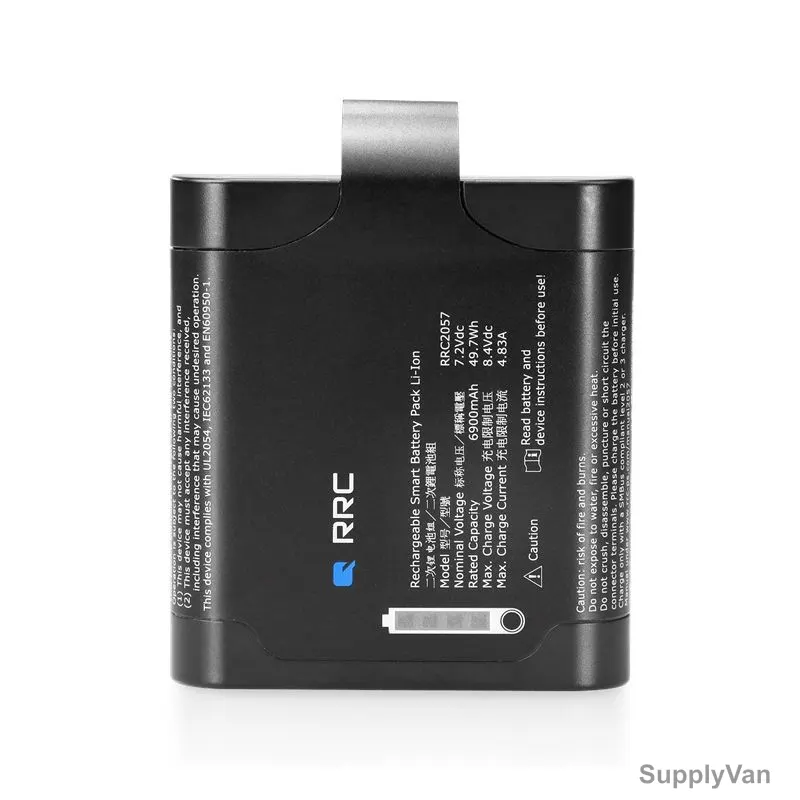

  • UL2054 certified lithium battery pack, 6900 mAh capacity, external charger
  • Compliance with UL61010-1, UL61010-2-030, UL61010-2-033

    • Sampling rate: 1 GS/S (1000 MS/S)
    • IP51 waterproof and dustproof

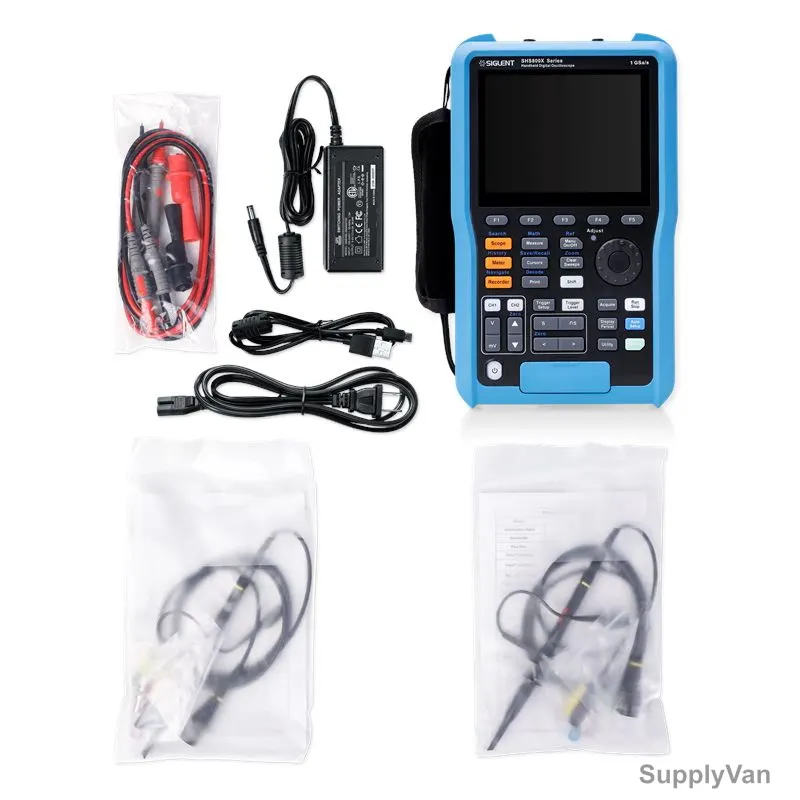

    Items Included:
    1x Siglent SHS820X Handheld Oscilloscope, 1x 6900mAh battery, 2x 100 MHz Oscilloscope probes, 2x Current Adapter ( 1x SCD600MA/1x SCD10A), 1x Multimeter probes set, 1x Power adapter/charger, 1x USB Cable, 1x Quick Start Guide
    Item Name:
    Digital Oscilloscope
    Model:
    SHS820X
    Manufacturer:
    Siglent
    Color:
    Blue
    Ingress Protection (IP Rating):
    IP51
    Display Size:
    5.6 Inch
    Display Type:
    TFT-LCD
    Display Resolution:
    640 x 480px
    Number of Channels:
    2
    Battery Type:
    Lithium Ion
    Bandwidth:
    200 MHz
    Brand Origin (not manufacture):
    Netherlands
    Delivery Time:
    2-7 Days
    Unit:
    Piece
