Skf Digital Tachometer, TKRT-10, IP40, 0.1 to 10000 RPM

The SKF TKRT 10 is a fast and accurate tachometer utilizing laser or contact to measure rotational and linear speeds. Equipped with a laser and a range of contact adapters, it is a versatile instrument and suits many different applications.Additional Specification

Operation time: 12 hours continuous use

Additional power source: 6VDC charging port (charger not included)

Display: 5 digit LCD backlit display

Memory: 10 readings memories

Low battery indicator: Yes

Auto switch off: After 15 seconds

Measurement

Optical modes: r/min, hertz

Contact modes: r/min, metres, inches, yards, feet, per min, hertz

Count modes: total revs, metres, feet, yards

Sampling time: 0.5 seconds (over 120 r/min)

Linear speed: 0.2 to 1 500 metres/min (4 500 ft/min)

Optical Measurement

Rotational speed range: 3 to 99 999 r/min

Accuracy: +/-0.05% of reading +/-1 digit

Measuring distance: 50 to 500 mm (1.9 to 19.7 in.)

Angle of operation: +/-45Degree

Laser sensor: 1x built-in class 2 laser

Contact Measurement

Rotational speed range: 2 to 20 000 r/min

Accuracy: +/-1% of reading +/-1 digit

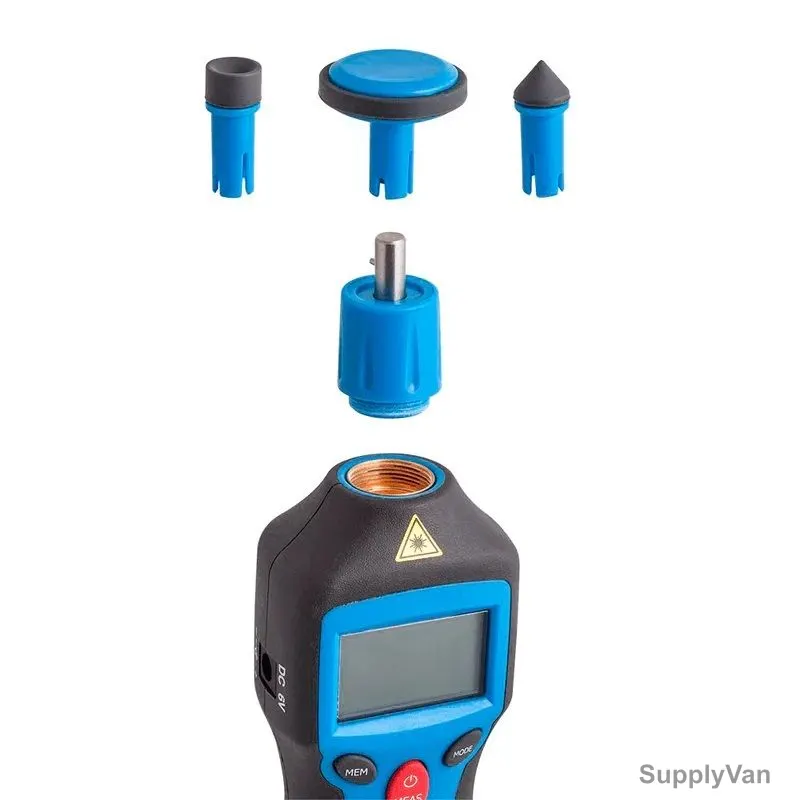

Contact adaptors: Included with conical tip, conical recess and wheel

• Wide speed measurement range: up to 99 999 r/min for laser measurement and 20 000 r/min using contact adapters
• Measurement modes include; rotational speed, total revolutions, frequency, surface speed and length in both metric and imperial units

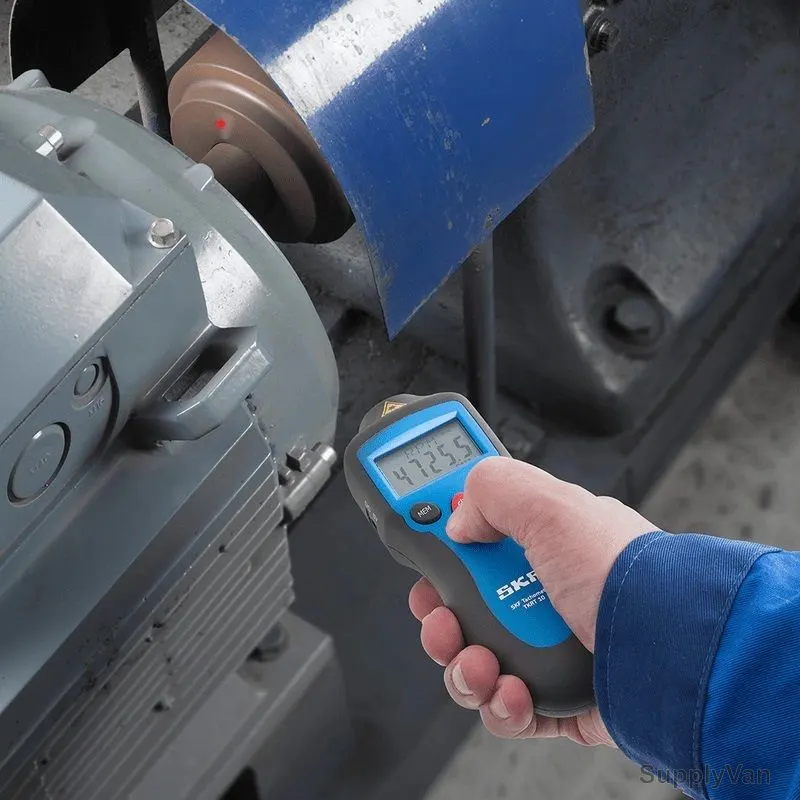

• Laser can be used for safe and quick, non-contact rotational speed measurements at distances up to 0.5 m (20 in.)
• Large back-lit LCD display enables easy reading in almost all light conditions
• Angular range of ±45° to target helps facilitate easy measuring
• Up to 10 readings can be stored for later reference
• Compact design; one–hand operated instrument

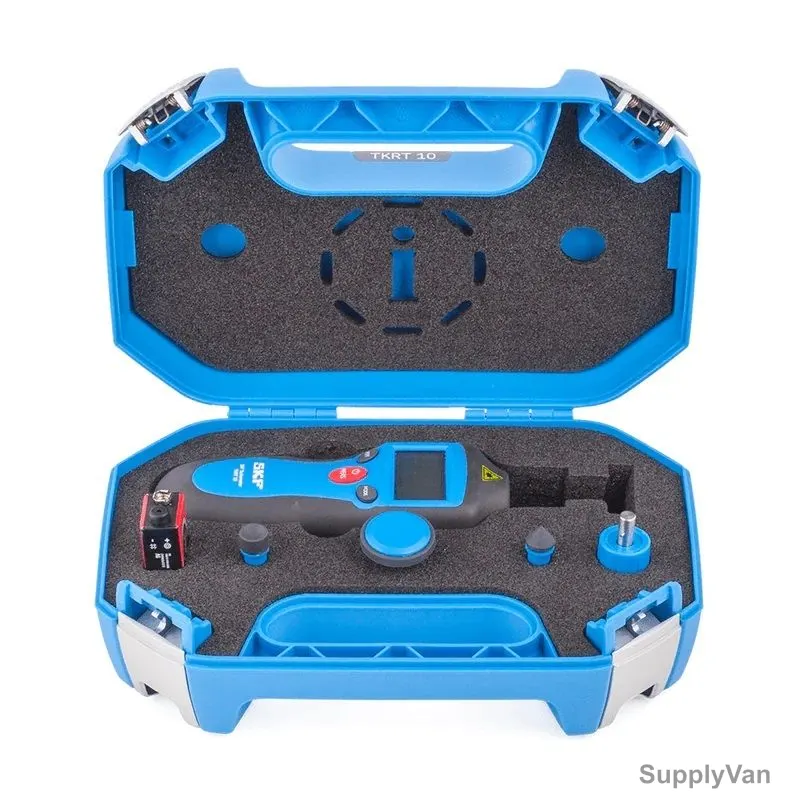

• Supplied in carrying case for protection and portability
