Skf Laser Pulley and Belt Alignment Tool Kit, TKBA-40, 50MM to 6 Mtrs Measuring Range

(No reviews yet) Write a Review
Brand:
Skf
SKU:
243328422177
Minimum Purchase:
1 unit
Item Name:
Laser Pulley and Belt Alignment Tool
Model:
TKBA-40
Manufacturer:
SKF
Color:
Blue and Black
Battery Life:
20 Hrs
Laser Color:
Red
Housing Material:
Aluminium
Operating Temperature:
0 to 40 Deg.C
Storage Temperature:
- 20 to 65 Deg.C
Relative Humidity:
10 to 90 Percent
Measuring Range:
50mm to 6 Mtrs
Ingress Protection (IP Rating):
IP40
Battery Type:
AAA Alkaline(IEC LR03)
Accuracy:
+/- 0.5 mm/m
Dimensions:
7 x 7.4 x 6.1cm
Application:
HVAC, Pump Installations, Paper Mills, Flour Mills, Lathe Machine, Milling Machines, Conveyors, Agricultural Machinery, Compressors, Engine camshafts
Brand Origin (not manufacture):
Sweden
Warranty (Subject to Conditions):
1 Year
Delivery Time:
2-7 Days
Unit:
Kit
See Full Product Specs
  • Skf Laser Pulley and Belt Alignment Tool Kit, TKBA-40, 50MM to 6 Mtrs Measuring Range
  • Skf Laser Pulley and Belt Alignment Tool Kit, TKBA-40, 50MM to 6 Mtrs Measuring Range
  • Skf Laser Pulley and Belt Alignment Tool Kit, TKBA-40, 50MM to 6 Mtrs Measuring Range
  • Skf Laser Pulley and Belt Alignment Tool Kit, TKBA-40, 50MM to 6 Mtrs Measuring Range
AED9,395.00

Description

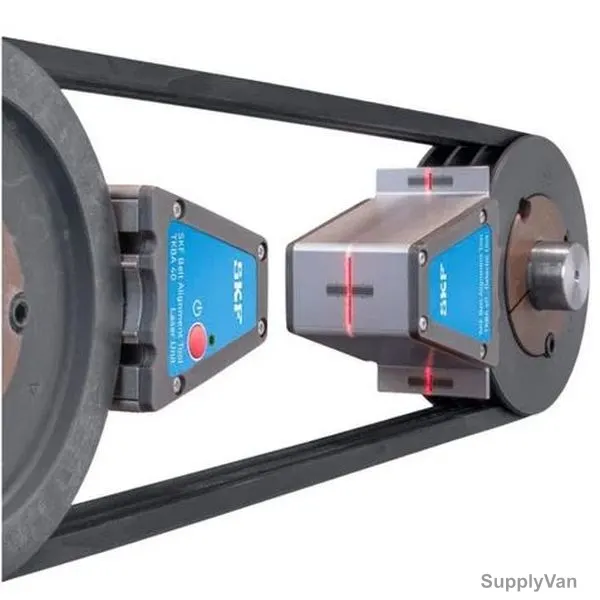

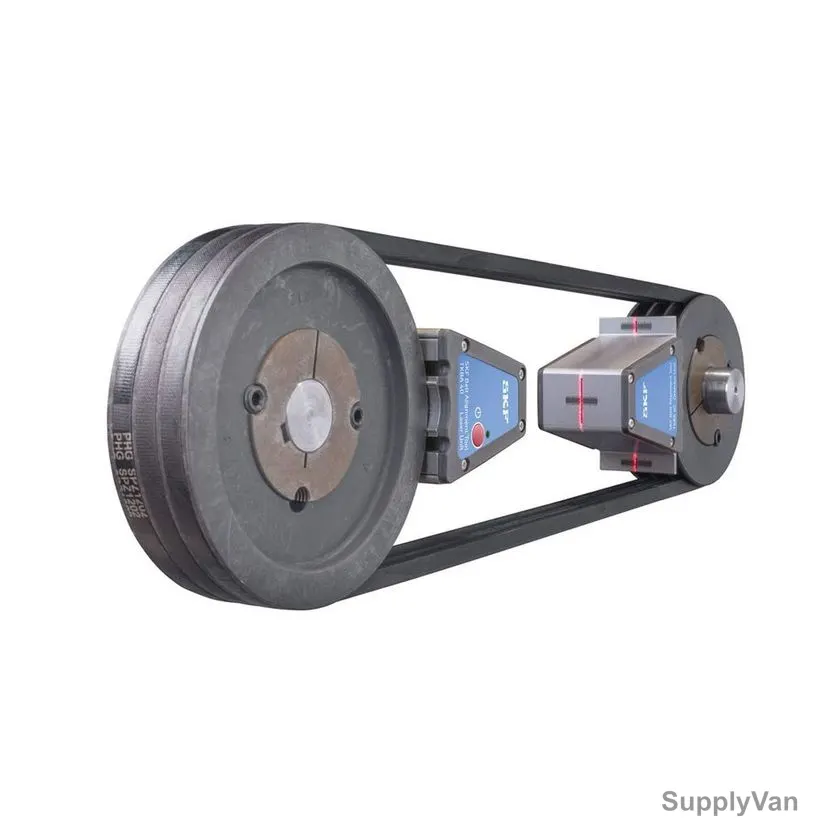

SKF Laser Pulley and Belt Alignment Tool Kit can help reduces downtime, Extends belt and pulley life, Extend bearing life, Reduces vibration and belt noise, Minimizes unscheduled stops and Increase safety. The TKBA 40 consists of one laser unit and one receiver unit, which attach magnetically to the grooves of each pulley. The laser unit emits a laser line which is projected onto a threedimensional target area on the opposite receiver unit. Depending on the laser pattern projected on the receiver unit , the user can determine the type of misalignment and how to correct it. Belt alignment is easily performed by adjusting the moveable machine(s) until the laser line coincides with the reference lines on the receiver unit. Allows for pPrecise alignment of belt driven machinery is essential to increase belt and pulley life and reduce vibration as well as energy costs. The TKBA 40 belt alignment tool offers an easy and accurate method to adjust the machinery so that the grooves of the Vbelt pulleys are accurately aligned.
  • High-accuracy tool for V-belt pulley alignment
  • Pulley grove width: 6mm to 40mm
  • Mounting: Magnetic with v-guide grooves
  • Laser wave length: 632 nm
  • Maximum laser power: 1mW
  • Fixture Attachement: Magnetic
  • Measurement accuracy: Angular better than 0.2 deg Linear better than 0.5mm

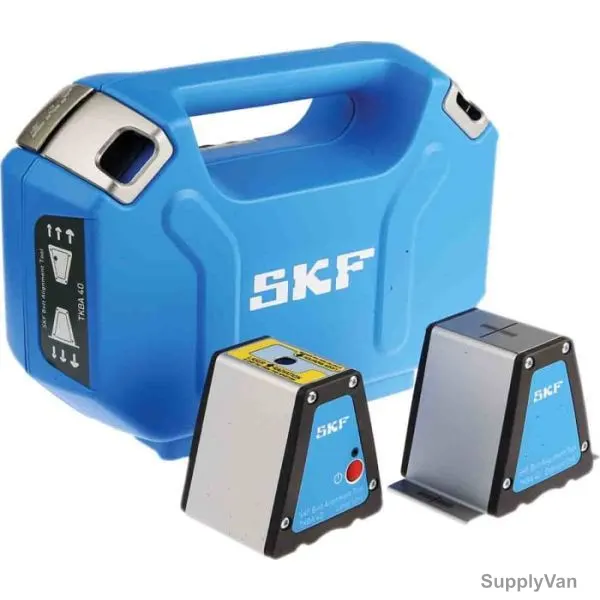

Items Included:
1x Transmitter Unit (70 x 74 x 61mm), 1x Receiver Unit (96 x 74 x 61mm), 1x Carrying Case (260 x 85 x 180mm), 2x AA Batteries, 4x V-guides (2x 22mm (Short Rods, Long Rods) 2x 40mm (Short Rods, Long Rods)(3x Pairs), 1x Printed Instructions for Use, 1x Calibration Certificate
Item Name:
Laser Pulley and Belt Alignment Tool
Model:
TKBA-40
Manufacturer:
SKF
Color:
Blue and Black
Battery Life:
20 Hrs
Laser Color:
Red
Housing Material:
Aluminium
Operating Temperature:
0 to 40 Deg.C
Storage Temperature:
- 20 to 65 Deg.C
Relative Humidity:
10 to 90 Percent
Measuring Range:
50mm to 6 Mtrs
Ingress Protection (IP Rating):
IP40
Battery Type:
AAA Alkaline(IEC LR03)
Accuracy:
+/- 0.5 mm/m
Dimensions:
7 x 7.4 x 6.1cm
Application:
HVAC, Pump Installations, Paper Mills, Flour Mills, Lathe Machine, Milling Machines, Conveyors, Agricultural Machinery, Compressors, Engine camshafts
Brand Origin (not manufacture):
Sweden
Warranty (Subject to Conditions):
1 Year
Delivery Time:
2-7 Days
Unit:
Kit
