Skf Small Induction Heater, TIH-030M, 230V, 2 kVA, 20-300MM Bore Dia
(No reviews yet)
Write a Review
- Brand:
- Skf
- SKU:
- 577892191789
- Minimum Purchase:
- 1 unit
- Item Name:
- Induction Heater
- Model:
- TIH-030M
- Manufacturer:
- SKF
- Color:
- Grey and Black
- Voltage:
- 230V
- Bore Diameter:
- 20-300mm
- Frequency:
- 50-60Hz
- Weight Capacity:
- 40 Kg
- Housing Material:
- Steel and Glass Fibre Filled Polyamide
- Power Consumption:
- 2 kVA
- Dimensions:
- 19.5 x 45 x 21cm
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

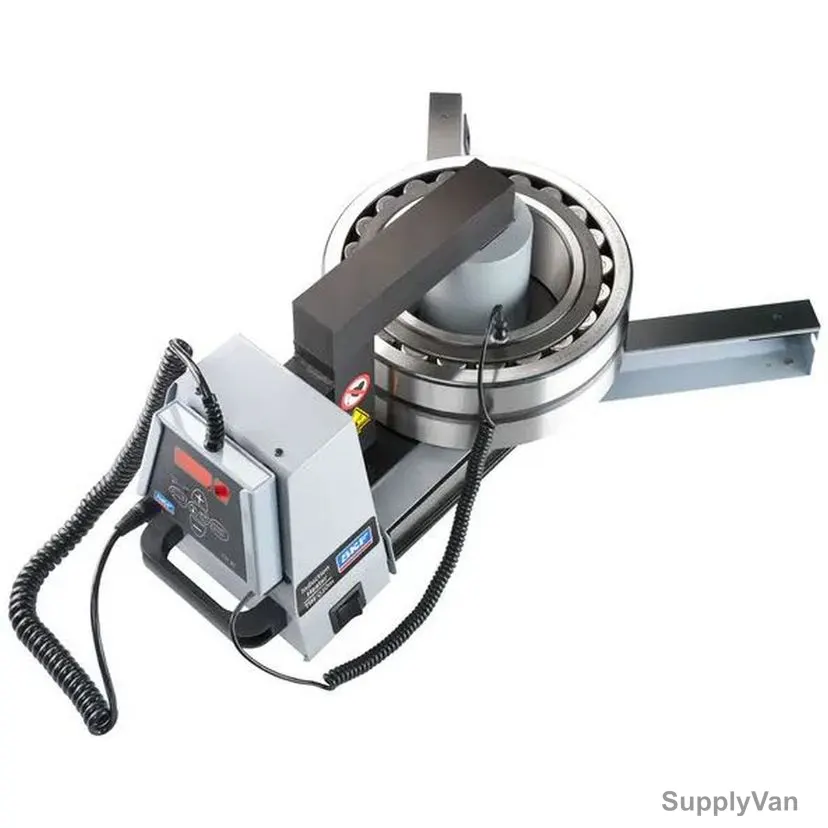

The SKF TIH 030M is a small induction heater and is designed for the hot mounting of bearings. This compact heater is ideal for use on workbenches, yet it can be easily carried for on-site applications. Supplied with three yokes and foldable support arms, the heater is capable of heating bearings with a bore diameters of 20 mm or more and with a maximum weight of 40 kg.
View AllClose
- Heating temperature control: 0.0 to 250 Deg.C
- Heating time control: 0.1 to 60 min
- Heating time steps: 0.1 min
- Coil diameter: 95mm
- Operating area height: 135mm
- Operating area width: 100mm
- Easy and safe to use with automatic temperature control or time controlled heating
- Automatic demagnetization reduces risk of bearing contamination
- Suitable for non-bearing applications for workpieces weighing up to 20 kg
- Automatic temperature hold function to keep the bearing hot after completion of the heating cycle
