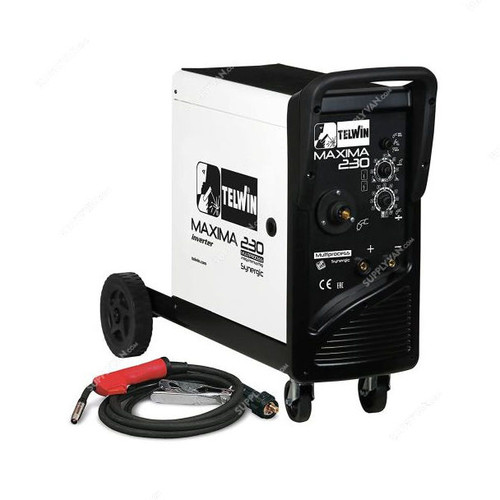

Telwin Electrode Welding Machine, 816088, Maxima 230 Synergic, 230V
(No reviews yet)
Write a Review
- Brand:
- Telwin
- SKU:
- 537951242411
- Minimum Purchase:
- 1 unit
- Item Name:
- Electrode Welding Machine
- Product Series:
- Maxima 230 Synergic
- Manufacturer:
- Telwin
- For Use With:
- Steel, stainless steel, aluminium
- Accuracy:
- 20%
- Power Consumption:
- 4.8kW
- Welding Current Range - Amps:
- 20-220A
- Efficiency:
- 87%
- Voltage:
- 230V
- Max No Load Voltage:
- 52V
- Measuring Current Range - DC:
- 100-180A
- Frequency:
- 50/60Hz
- Ingress Protection (IP Rating):
- IP23
- Accessories Included:
- Cable 16 MMQ 1.8 Mtrs - Dinse 25 (120602), Toledo 250 Work Clamp 250A (712030), Cable Tw05V-A 1X025 L=1.80 Mtrs Dinse(124589), Mt15 Mig Torch 3 Mtrs (Red) (742180)
- Application:
- MIG-MAG/FLUX/BRAZING/MMA/TIG DC- LIFT
- Brand Origin (not manufacture):
- Italy
- Product Size L x B x H (Cms):
- 82.5L x 36B x 67H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Microprocessor controlled MIG-MAG/FLUX/BRAZING inverter wire welding machine. It allows great versatility in the use of various types of materials (steel, stainless steel, aluminium) and in all possible applications, from maintenance to installation works. The SYNERGIC adjustment of the welding parameters makes the products easy to use and grants excellent results, always, also for the less experienced operator.
View AllClose
- Light And Compact
- It Can Be Easily Carried In Any Intervention Place, Both Inside And Outside
- Thermostatic, overvoltage, Undervoltage, Motor generator (+/- 15%) Protections
- Arc-Force Adjustment In MMA
- Euro Torch Connection
- Complete With Mig-Mag Torch, Work Clamp And Cable
- Absorbed Current At: 60% - Max18 A
- Absorbed Power At 60%7/20/2020 2.7kW
- Absorbed Power At 60%7/20/2020 2.7kW
- Steel Welding Wire Diameter: 0.6 - 1mm
- Inox Welding Wire Diameter: 0.8 - 1mm
- Aluminium Welding Wire Diameter: 0.8 - 1mm
- Flux Cored Welding Wire Diameter: 0.8 - 1.2mm
Item Name: |
Electrode Welding Machine |
Product Series: |
Maxima 230 Synergic |
Manufacturer: |
Telwin |
For Use With: |
Steel, stainless steel, aluminium |
Accuracy: |
20% |
Power Consumption: |
4.8kW |
Welding Current Range - Amps: |
20-220A |
Efficiency: |
87% |
Voltage: |
230V |
Max No Load Voltage: |
52V |
Measuring Current Range - DC: |
100-180A |
Frequency: |
50/60Hz |
Ingress Protection (IP Rating): |
IP23 |
Accessories Included: |
Cable 16 MMQ 1.8 Mtrs - Dinse 25 (120602), Toledo 250 Work Clamp 250A (712030), Cable Tw05V-A 1X025 L=1.80 Mtrs Dinse(124589), Mt15 Mig Torch 3 Mtrs (Red) (742180) |
Application: |
MIG-MAG/FLUX/BRAZING/MMA/TIG DC- LIFT |
Brand Origin (not manufacture): |
Italy |
Product Size L x B x H (Cms): |
82.5L x 36B x 67H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
