Testo Entry-Level Flue Gas Analyzer Set With Printer, 310-Set, -20 to +100 Deg.C, 2 Pcs/Set

(No reviews yet) Write a Review
Brand:
Testo
SKU:
352271868198
Minimum Purchase:
1 unit
Item Name:
Gas Analyzer Set
Model:
310-Set
Manufacturer:
Testo
Color:
Black
Current:
1A
Battery Voltage:
5V
Battery Capacity:
2500 mAh
Operating Temperature:
-5 to +45 Deg.C
Storage Temperature:
-20 to +50 Deg.C
Measuring Range:
-20 to +100 Deg.C (TC Type K), 0 to +400 Deg.C (TC Type J)
Accuracy:
+/-1 Deg.C (TC Type K), +/-1 Deg.C ((0 to +100 Deg.C), +/-1.5% of mv (> 100 Deg.C) (TC Type J)
Resolution:
0.1 Deg.C
Dimensions:
201 x 83 x 44mm
Display Type:
LCD
Display Size:
2 lines
Brand Origin (not manufacture):
Germany
Delivery Time:
2-7 Days
Unit:
Set
See Full Product Specs
  • Testo Entry-Level Flue Gas Analyzer Set With Printer, 310-Set, -20 to +100 Deg.C, 2 Pcs/Set
  • Testo Entry-Level Flue Gas Analyzer Set With Printer, 310-Set, -20 to +100 Deg.C, 2 Pcs/Set
  • Testo Entry-Level Flue Gas Analyzer Set With Printer, 310-Set, -20 to +100 Deg.C, 2 Pcs/Set
  • Testo Entry-Level Flue Gas Analyzer Set With Printer, 310-Set, -20 to +100 Deg.C, 2 Pcs/Set
AED3,816.00

Description

The Testo 310 has two measurement cells for O2 and CO, and a temperature sensor integrated into the flue gas probe. The gas sensors measure the exact oxygen and carbon monoxide content as well as the flue gas and ambient temperature. From these data, all relevant measurement parameters such as CO2 value, degree of effectivity and flue gas loss are calculated. The instrument stands out thanks to its easy handling and simple menu structure. You can read off the measurement values confidently and conveniently from the well-lit display, even in bad light conditions. The fuels are stored not just as numbers, but are each described. At the top edge of the clear display, the symbols for the different measurement menus are always in view. The display and the dirt-insensitive keypad are clearly structured. Operation is very easy – even if you only have one hand free.

Specifications:

  • Flue gas - Measuring Range: 0 to 21 Vol.%
  • Flue gas - Accuracy: +/-0.2 Vol.%
  • Flue gas - Resolution: 0.1 Vol.%
  • Flue gas - Reaction Time t??: 30 s

    • Differential Pressure flue gas Draught Piezoresistive

  • Measuring Range: -20 to +20 hPa
  • Accuracy: +/-0.03 hPa (-3.00 to +3.00 hPa), +/-1.5% of mv (Remaining Range)
  • Resolution: 0.01 hPa

    • Flue Gas Degree of Effectivity, Eta (calculated)

  • Measuring range: 0 to 120%
  • Resolution: 0.1%

    • Flue gas Loss (Calculated)

  • Measuring range: 0 to 99.9%
  • Resolution: 0.1%

    • Flue Gas - Calculation (calculated from O?)

  • Measuring Range: 0 to CO2 max (Display range)
  • Accuracy: +/-0.2 Vol.%
  • Resolution: 0.1 Vol.%
  • Reaction Time t99: <40 sec

    • Pressure Measurement

  • Measuring Range: -40 to +40 hPa
  • Accuracy: +/-0.5 hPa
  • Resolution: 0.1 hPa

    • Flue Gas CO (without H2-compensation)

  • Measuring Range: 0 to 4000 ppm
  • Accuracy: +/-20 ppm (0 to 400 ppm), +/-5% of mv (401 to 2000 ppm), +/-10% of mv (2001 to 4000 ppm)
  • Resolution: 1 ppm
  • Reaction Time t99: 60 sec

    • Ambient CO

  • Measuring Range: 0 to 4000 ppm
  • Accuracy: +/-20 ppm (0 to 400 ppm), +/-5% of mv (401 to 2000 ppm), +/-10% of mv (2001 to 4000 ppm)
  • Resolution: 1 ppm
  • Reaction Time: 60 sec

    • Direct O2, CO, flue gas and ambient temperature measurements
    • Integrated measurement menu for flue gas, draft, CO ambient air and pressure
    • Quick sensor zero in only 30 seconds
    • Large, backlit digital display, rechargeable lithium battery with up to 10 hours life
    • Reaction Time: <50 sec

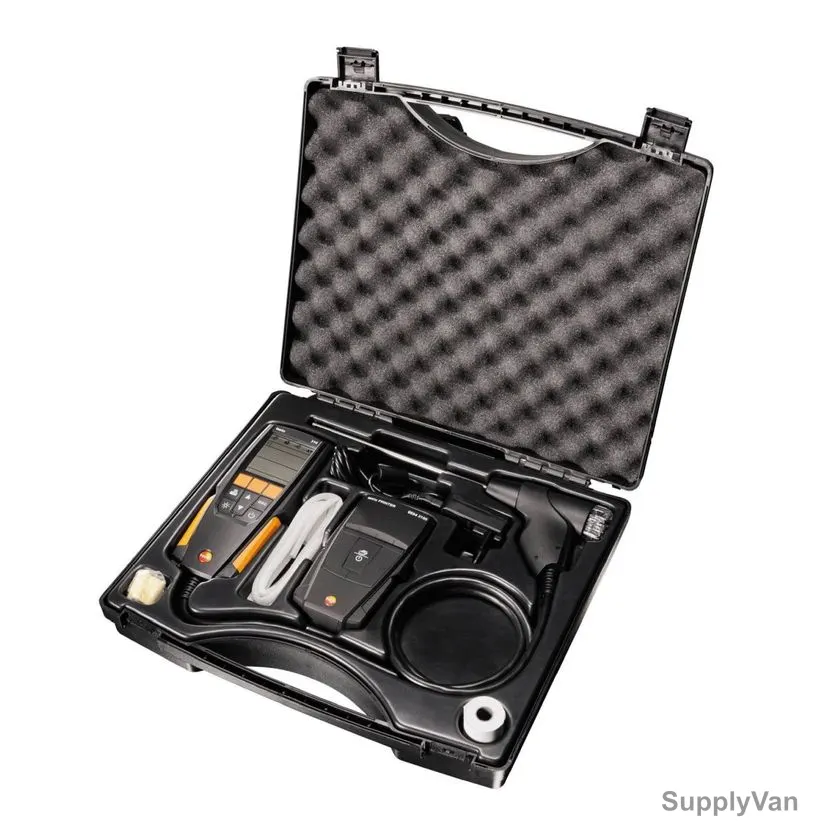

    Items Included:
    1x Testo 310 Flue Gas Analyzer, 1x Rechargeable Battery, 1x Calibration Certificate for O2, CO, hPa, 1x Testo 0554 3100 IR Printer, 1x Conical Sensor (180mm), 1x Silicone Tube for Pressure Measurements, 5x Particle Filters, 2x Spare Thermal Roll, 1x Case
