Testo Wi-Fi Data Logger With 2 External TC Temperature Probe Connections, Saveris-2-T3, -195 to 1350 Deg.C

(No reviews yet) Write a Review
Brand:
Testo
SKU:
899319289149
Minimum Purchase:
1 unit
Item Name:
Wi-Fi Data Logger
Model:
Saveris-2-T3
Product Series:
Saveris 2-T3
Article Number:
0572-2033
Manufacturer:
Testo
Operating Temperature:
-30 to +50 Deg.C
Storage Temperature:
-40 to +70 Deg.C
Battery Size:
AA
Dimensions:
95 x 75 x 30.5mm
Temperature Range:
-195 to +1350 Deg.C
Temperature Accuracy:
+/-(0.5 + 0.5% of mv) Deg.C
Resolution:
0.1 Deg.C
Ingress Protection (IP Rating):
IP54
Brand Origin (not manufacture):
Germany
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Testo Wi-Fi Data Logger With 2 External TC Temperature Probe Connections, Saveris-2-T3, -195 to 1350 Deg.C
  • Testo Wi-Fi Data Logger With 2 External TC Temperature Probe Connections, Saveris-2-T3, -195 to 1350 Deg.C
  • Testo Wi-Fi Data Logger With 2 External TC Temperature Probe Connections, Saveris-2-T3, -195 to 1350 Deg.C
  • Testo Wi-Fi Data Logger With 2 External TC Temperature Probe Connections, Saveris-2-T3, -195 to 1350 Deg.C
AED1,400.00

Description

Product Description

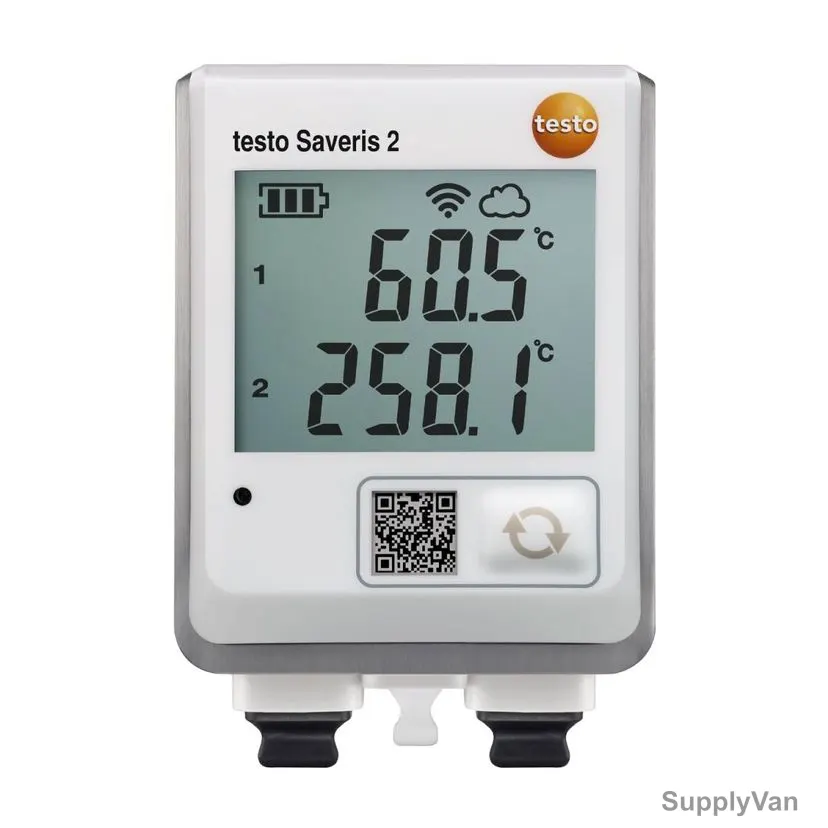

The testo Saveris 2-T3 Wi-Fi data logger system is an easy, versatile, and secure solution for the measurement and monitoring of temperature values. The system consists of at least one Wi-Fi data logger and a testo Cloud license (online data storage). As a component of this data logger system, the testo Saveris 2-T3 with up to 2 connectable TC temperature probes (types K, T, J), stores all measured temperature values, and transmits them directly by Wi-Fi to the testo Cloud. Supported by an extensive offering of thermocouple probe choices, the testo Saveris 2-T3 Wi-Fi logger handles a broad range of applications. The measurement rate is adjustable from 1 minute to 24 hours. You can use the alarm function to receive immediate alarms by e-mail or SMS text message (optional), when user set limit values are exceeded.

Installation, readout, and analysis of Wi-Fi data loggers

The testo Saveris 2-T3 Wi-Fi data logger is easily installed. Select the appropriate testo Cloud license to fit your company’s needs, connect through your WLAN network, then log in to the testo Cloud to configure the logger and begin collecting measurements. Logger and system settings, alarm settings, and outputs are quickly set. Now relax, because Saveris 2 is on the job, and will alert you if a limit or problem is detected.

The logger itself displays the current measurement values, alarm conditions, and the remaining battery life. The standard batteries (AA) have a life expectancy of 24 months, and can be replaced as needed. The internal data storage of the Wi-Fi data logger has a capacity of 10,000 measurement values per channel/measurement type.

Technical Data
Temperature - TC Type T (Cu-CuNi)
  • Measuring range: -200 to +400 Deg.C
  • Accuracy: +/-(0.5 + 0.5% of mv) Deg.C
  • Resolution: 0.1 Deg.C
    • Temperature - Type J TC
  • Measuring range: -100 to +750 Deg.C
  • Accuracy: +/-(0.5 + 0.5% of mv) Deg.C
  • Resolution: 0.1 Deg.C
  • Measuring rate: Dependent on Cloud licence; Basic: 15 min 24 Hrs / Advanced: 1 min 24 Hrs
  • Communication rate: Dependent on Cloud licence; Basic: 15 min 24 Hrs / Advanced: 1 min 24 Hrs
  • WLAN Connectivity: Signal transmission: wireless, frequency band: 2.4 GHz, supported wireless LAN standards: IEEE 802.11 b/g/n and IEEE 802.1X; Possible encryption methods: without encryption, WEP, WPA, WPA2, WPA2 Enterprise - The data loggers communicate via the standard protocol MQTT and are SNTP time synchronization-capable.
  • Connection external: External temperature probes
  • Memory: 10,000 measurement values / channel
  • Battery life: 12 months (typical value, depending on the wireless LAN infrastructure) at +25 Deg.C, 15-minute measuring cycle and standard communication cycle at -30 Deg.C, 15-minute measuring cycle and standard communication cycle with Energizer batteries 0515 0572

    • Alerts when limit values are exceeded via e-mail or SMS (optional)
    • Broad measuring range of -195 to +1350 °C possible thanks to connectable probes (optional)
    • Access to readings anywhere and with any device
    • Data transfer by wireless LAN
    • Automatic reading documentation
    • Free online data storage in the cloud

    Items Included:
    1x Testo Saveris 2-T3 Wi-Fi data logger, 1x Micro USB cable, 1x Wall bracket with lock, 4x Batteries (AA), 1x Instruction manual, 1x Factory calibration document
