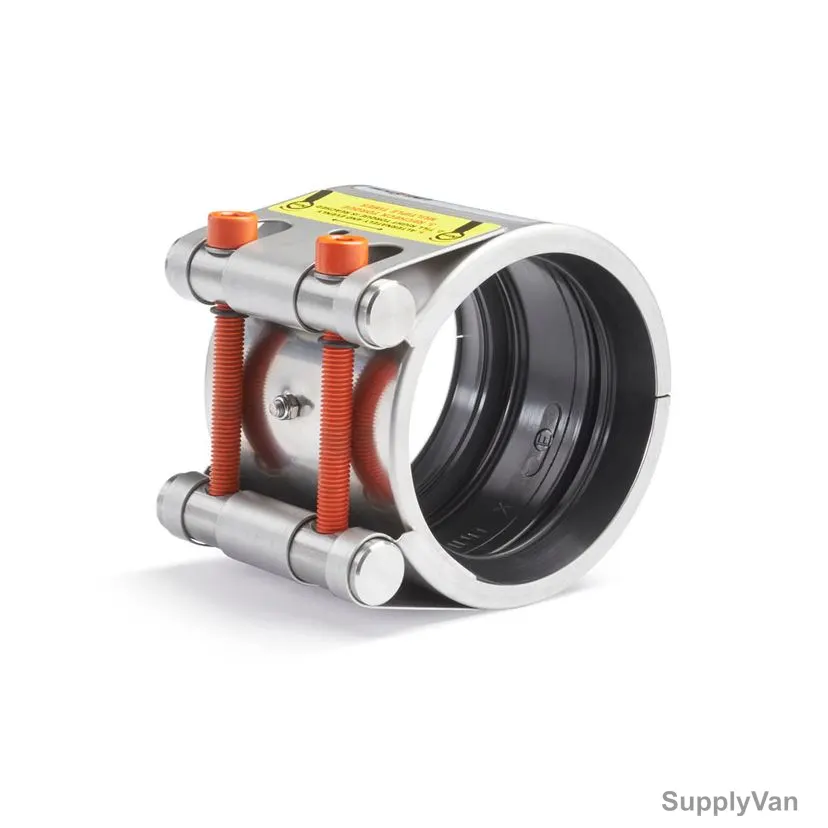

Uni-Coupling Pull-Resistant Pipe Coupling With EPDM Sleeve, Uni-Grip, PN16, 58-64MM Dia, 75MM Length
(No reviews yet)
Write a Review
- Brand:
- Uni-Coupling
- SKU:
- 323139113337
- Minimum Purchase:
- 1 unit
- Item Name:
- Pipe Coupling
- Product Series:
- Uni-Grip
- Manufacturer:
- Uni-Coupling
- Color:
- Silver
- Length (MilliMeter):
- 75mm
- Diameter (MilliMeter):
- 58-64mm
- Ring Material:
- 301 Stainless Steel
- Body Material:
- 316 Stainless Steel
- Seal Material:
- EPDM
- Temperature Range:
- -30 to 125 Deg.C
- Pressure:
- PN16
- For Use With:
- Steel and Cast Iron Pipes
- Application:
- Drinking water, wastewater, compressed air, alcohol and solids
- Brand Origin (not manufacture):
- Netherlands
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Uni-Grip Pipe Coupling is axial restraint couplings that are designed to replace the need for flanging, welding, pipe grooving and pipe threading by providing a quick and easy solution to joining plain-end pipe. The Uni-Grip's special teeth design with progressive anchoring effect with ball solution offers high levels of security by locking the pipes together under pressure. When the axial tensile load of the pipe is increasing by internal pressure or external influence, specially shaped balls brought in at the back will push hardened teeth into the pipe surface. With the use of this method it is possible to achieve improved anchoring behavior on hard surfaces like thin-walled stainless steel or cast-iron pipes.
View AllClose
- To connect metal - metal
- For restraint jointing
- Patented wedge shaped seal
- 2 grip rings for metal pipes
- Offers secure locking for pipes under pressure
- Accomodates angulation, vibration and vacuum
- Bar Material: 316 Stainless Steel
- Bolts Material: 316 Stainless Steel
Item Name: |
Pipe Coupling |
Product Series: |
Uni-Grip |
Manufacturer: |
Uni-Coupling |
Color: |
Silver |
Length (MilliMeter): |
75mm |
Diameter (MilliMeter): |
58-64mm |
Ring Material: |
301 Stainless Steel |
Body Material: |
316 Stainless Steel |
Seal Material: |
EPDM |
Temperature Range: |
-30 to 125 Deg.C |
Pressure: |
PN16 |
For Use With: |
Steel and Cast Iron Pipes |
Application: |
Drinking water, wastewater, compressed air, alcohol and solids |
Brand Origin (not manufacture): |
Netherlands |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
