Weicon AN 301-72 Pipe and Flange Sealing, 30172200, Weiconlock, 200ML

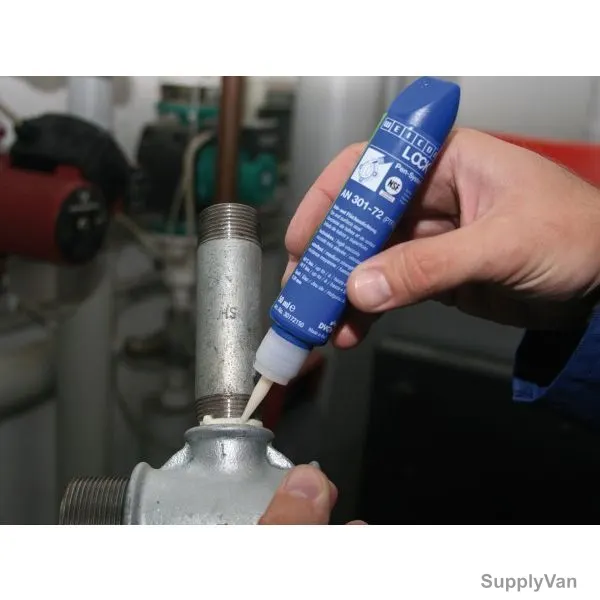

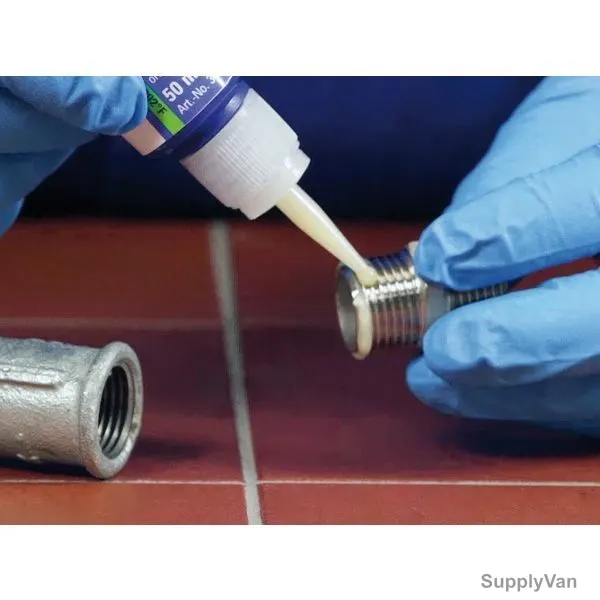

WEICONLOCK is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). Apply WEICONLOCK in circular motions on the thread. Screw pipe threads together and tighten until desired orientation. When using as flange sealing apply a continuous bead on one side. Join and tighten parts quickly. Do not pour back into the bottle any WEICONLOCK fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended.
Technical Data

For Threaded Joints Upto: M80 R 3 Inch

Viscosity at 25 Deg.C According to Brookfield: 15.000 - 60.000 ht mPa新

Max. Gap Bridging: 0.3mm

Breakaway Strength (Thread): 5 - 10 Nm

Prevailing Stregth: 4 - 6 Nm

Shear Strength (DIN 54452): 5 - 7 N/sq.mm

Handling Strength at Room Temperature: 15 - 30 Min

Final Strength (100%) After: 6 - 12 Hrs

Temperature Resistance: -60 to 200 Deg.C

• Higher viscosity
• Medium strength
• Disassembly with normal tools
