Weicon AN 302-22 Threadlocking Adhesive, 30222020, Weiconlock, 20ML

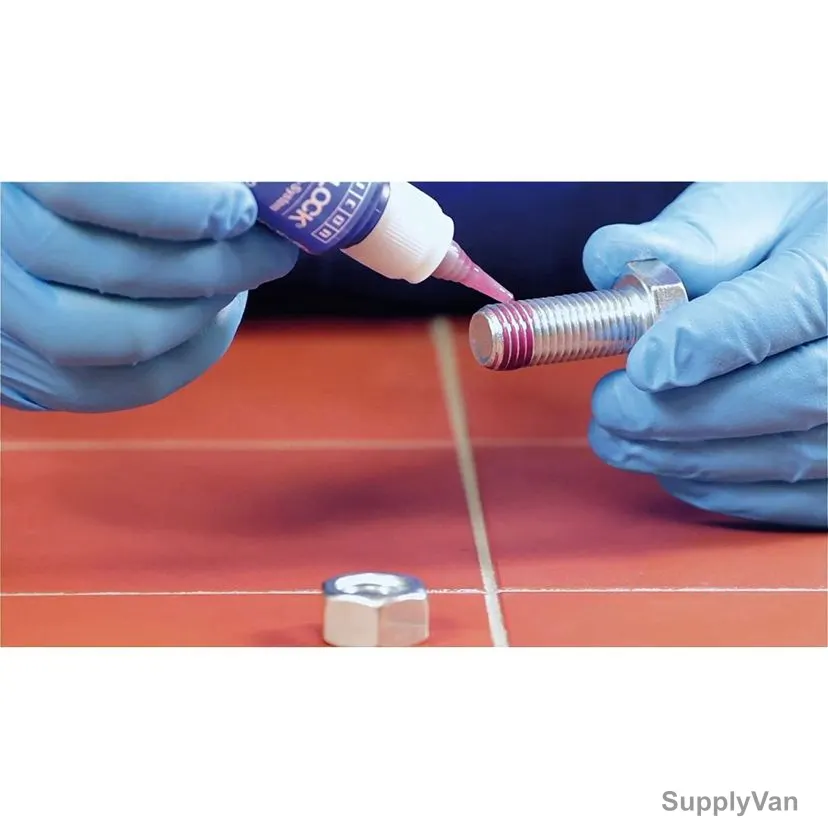

WEICONLOCK is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). For sealing applications, apply WEICONLOCK in circular motions on the thread. Assemble and tighten parts. Do not pour back into the bottle any WEICONLOCK fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended.
Technical Data

For Threaded Joints Upto: M36

Viscosity at 25 Deg.C According to Brookfield: 1000 mt mPa新

Max. Gap Bridging: 0.2mm

Breakaway Strength (Thread): 4 - 8 Nm

Prevailing Stregth: 2 - 4 Nm

Shear Strength (DIN 54452): 3 - 5 N/sq.mm

Handling Strength at Room Temperature: 10 - 20 Min

Final Strength (100%) After: 3 - 6 Hrs

Temperature Resistance: -60 to 150 Deg.C

• Medium viscosity
• Low strength
• Easy disassembly
