Brand: Weicon

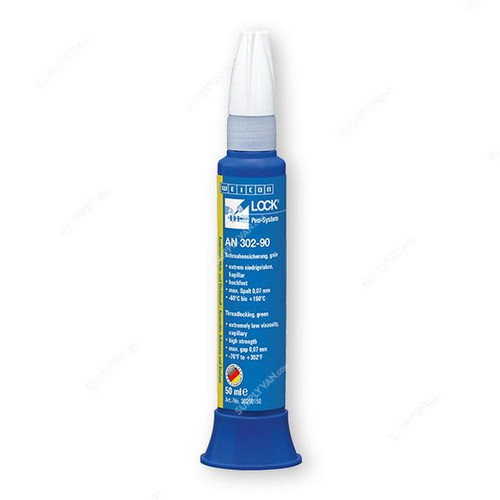

Weicon AN 302-90 Threadlocking, 30290150, Weiconlock, 50ML

523793329261
523793329261
(No reviews yet) Write a Review
All Prices Include VAT
✔ In Stock 🚚 Ready to Ship
See Full Product Specs >
Payment Methods Accepted
Visa Visa
Mastercard Mastercard
Apple Pay Apple Pay
Google Pay Google Pay
POS Card POS Card
Cash On Delivery Cash On Delivery
Bank Transfer Bank Transfer
SUPPLYVANTAGE
🏅
Original
Products
👍
Warranty
Against Defects
💲
Returns &
Refund Policy
🎧
Dedicated
Support
🛡️
100% Client
Protection
  • Weicon AN 302-90 Threadlocking, 30290150, Weiconlock, 50ML
  • Weicon AN 302-90 Threadlocking, 30290150, Weiconlock, 50ML
Frequently bought together:

Description

Threadlocking, for locking after mounting and sealing of hair cracks Strength values based on M 10 screws, 8.8 grade, thickness of nut 0,8.d Static shear strength based on cylindrical parts of abt. Dia 13mm, tolerance (D-d) = 0.05mm, l/d = 0.88
Surface pre-treatment:
  • In general, Weiconlock does not require special pre-treatment as slightly oily surfaces (e.g. on as received parts) will be tolerated. However, best results will be achieved on cleaned, degreased parts (use Weicon Surface Cleaner). If required, the parts should be slightly roughened.
    • Processing:

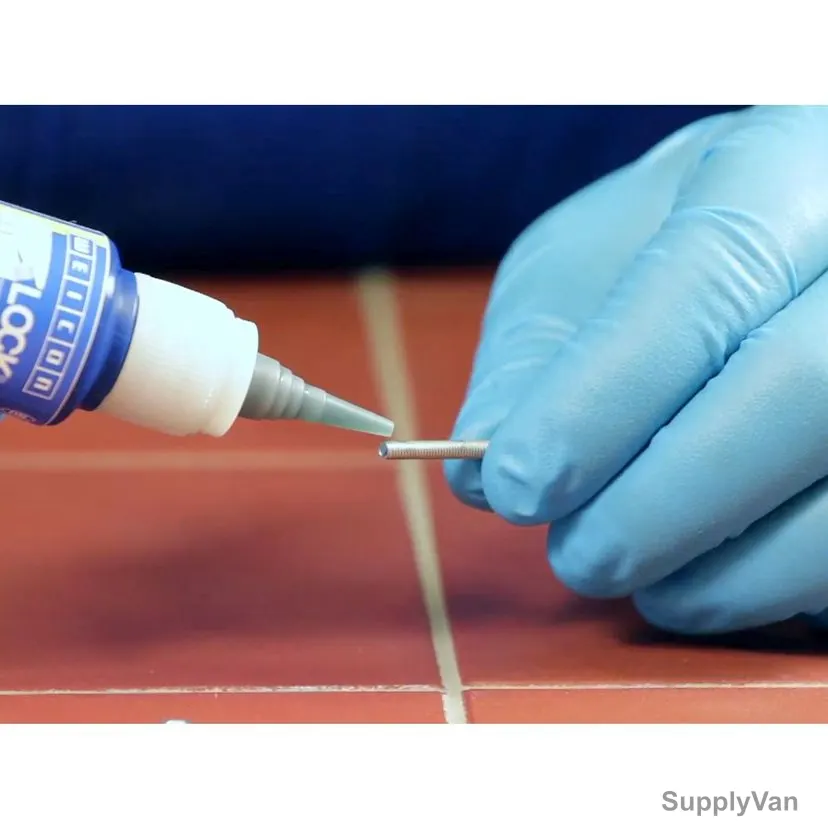

  • Weiconlock is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). For sealing applications, apply Weiconlock in circular motions on the thread. Assemble and tighten parts. Do not pour back into the bottle any Weiconlock fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series instruction, the use of manual or automatic applicators is recommended.
    • Storage:
  • Weiconlock can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps Weiconlock liquid.
    • Technical Data:
  • Colour: Green
  • Fluorescent: Yes
  • For threaded joints up to: M5
  • Viscosity at 25 Deg.C (+77 Deg.F) according to Brookfield: 10 - 20 mPa·s
  • Max. Gap Bridging: 0.07mm
  • Breakaway strength (Thread): 15 - 25 Nm
  • Prevailing strength: 30 - 40 Nm
  • Shear strength N sq.mm (DIN 54452): 8 - 12 N/sq.mm
  • Handling strength at room temperature: 5 - 20 min.
  • Final strength (100%) after: 3 h
  • Temperature resistance: -60 to +150 Deg.C
  • ISSA-Code: 75.628.28/29/30
  • IMPA-Code: 815207/08/09

    • Extremely low viscosity, capillary
    • High strength
    • Hard to disassemble
    Item Name:
    Threadlocking
    Product Series:
    Weiconlock
    Manufacturer:
    Weicon
    Color:
    Green
    Size:
    50ml
    Height:
    18.8cm
    Final Strength:
    3 Hrs
    IMPA Code:
    815207/08/09
    Temperature Resistance:
    -60 to +150 Deg.C
    Viscosity:
    10-20 mPa·s
    Brand Origin (not manufacture):
    Germany
    Delivery Time:
    2-7 Days
    Unit:
    Piece
