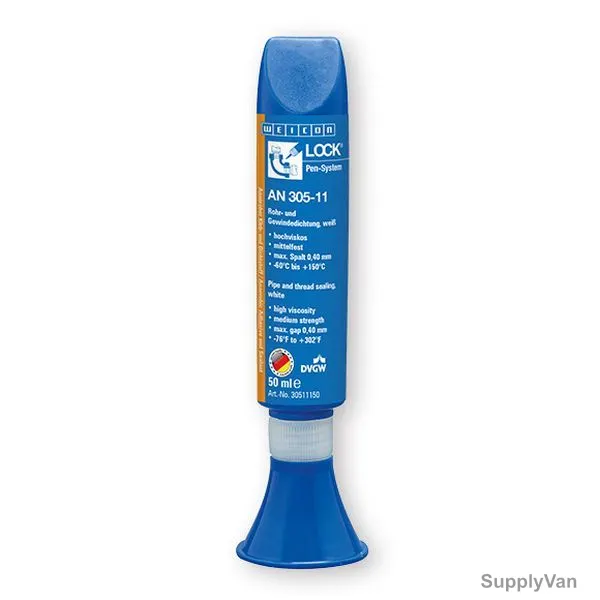

Weicon AN 305-11 Pipe and Thread Sealing, 30511150, Weiconlock, 50ML
(No reviews yet)
Write a Review
- Brand:
- Weicon
- SKU:
- 216924791816
- Minimum Purchase:
- 1 unit
- Item Name:
- Pipe and Thread Sealing
- Product Series:
- Weiconlock
- Manufacturer:
- Weicon
- Color:
- White
- Size:
- 50ml
- Shear Strength:
- 4-6 N/sq.mm
- Final Strength:
- 5/10 Hrs
- Height:
- 18.8cm
- Viscosity:
- 17.000-50.000 ht mPa·s
- Approvals:
- DVGW
- Temperature Resistance:
- -60 to +150 Deg.C
- Brand Origin (not manufacture):
- Germany
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

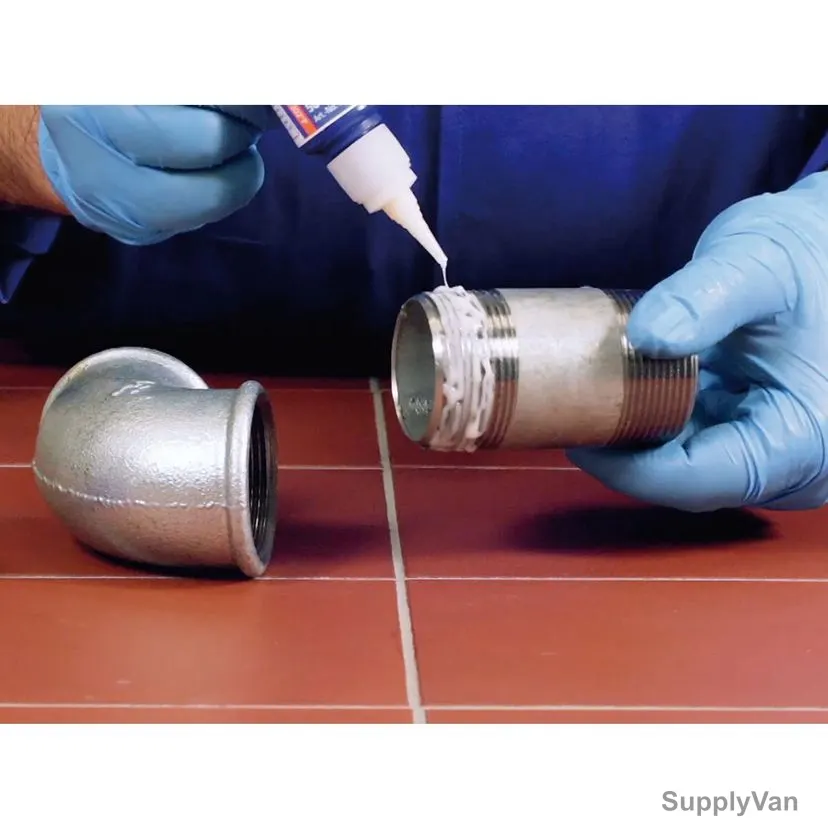

Surface pre-treatment:In general, Weiconlock does not require special pre-treatment as slightly oily surfaces (e.g. on as received parts) will be tolerated. However, best results will be achieved on cleaned, degreased parts (use Weicon Surface Cleaner). If required, the parts should be slightly roughened. Processing:Weiconlock is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). Apply Weiconlock in circular motions on the thread. Screw pipe threads together and tighten until desired orientation. When using as flange sealing apply a continuous bead on one side. Join and tighten parts quickly. Do not pour back into the bottle any Weiconlock fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended. Storage:Weiconlock can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps Weiconlock liquid. Technical Data: Colour: White Fluorescent: No For threaded joints up to: M80 R 3 Inch Viscosity at 25 Deg.C (+77 Deg.F) according to Brookfield: 17.000 - 50.000 ht mPa·s Max. Gap Bridging: 0.4 mm Breakaway strength (Thread): 7 - 10 Nm Prevailing strength: 2 - 4 Nm Shear strength N sq.mm (DIN 54452): 4 - 6 N/sq.mm Handling strength at room temperature: 20 - 40 min. Final strength (100%) after: 5 - 10 h Temperature resistance: -60 to +150 Deg.C
View AllClose
- Higher viscosity
- Medium strength
- Disassembly with normal tools
Item Name: |
Pipe and Thread Sealing |
Product Series: |
Weiconlock |
Manufacturer: |
Weicon |
Color: |
White |
Size: |
50ml |
Shear Strength: |
4-6 N/sq.mm |
Final Strength: |
5/10 Hrs |
Height: |
18.8cm |
Viscosity: |
17.000-50.000 ht mPa·s |
Approvals: |
DVGW |
Temperature Resistance: |
-60 to +150 Deg.C |
Brand Origin (not manufacture): |
Germany |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
