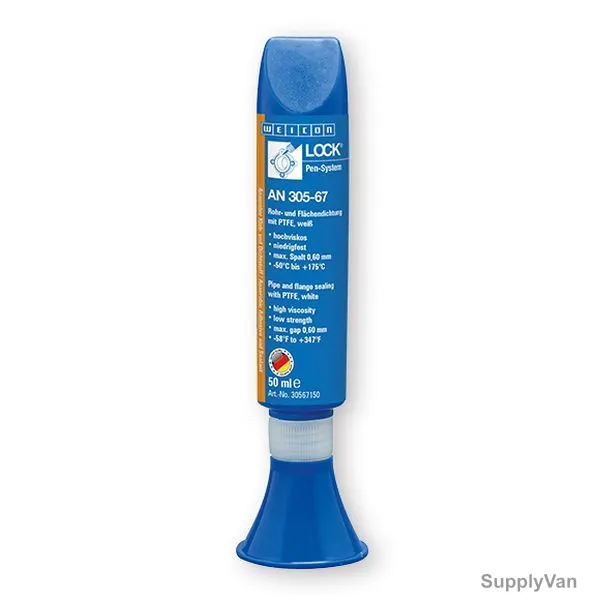

Weicon AN 305-67 Pipe and Flange Sealing, 30567150, Weiconlock, 50ML

(No reviews yet) Write a Review
Brand:
Weicon
SKU:
832734719518
Minimum Purchase:
1 unit
Item Name:
Pipe and Flange Sealing
Product Series:
Weiconlock
Manufacturer:
Weicon
Color:
White
Size:
50ml
Height:
18.8cm
Final Strength:
24/72 Hrs
Viscosity:
170.000-410.000 mPa·s
Temperature Resistance:
-60 to +175 Deg.C
Shear Strength:
6-8 N/sq.mm
Brand Origin (not manufacture):
Germany
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Weicon AN 305-67 Pipe and Flange Sealing, 30567150, Weiconlock, 50ML
  • Weicon AN 305-67 Pipe and Flange Sealing, 30567150, Weiconlock, 50ML
AED68.00
Free Shipping Over 100AED (Dubai, Sharjah, Ajman)

Description

Pipe and flange sealing with PTFE, gap filling capacity max. 0.60mm, marking-free Strength values based on M 10 screws, 8.8 grade, thickness of nut 0.8.d Static shear strength based on cylindrical parts of abt. Dia 13mm, tolerance (D-d) = 0.05mm, l/d = 0.88
Surface pre-treatment:
  • In general, Weiconlock does not require special pre-treatment as slightly oily surfaces (e.g. on as received parts) will be tolerated. However, best results will be achieved on cleaned, degreased parts (use Weicon Surface Cleaner). If required, the parts should be slightly roughened.
    • Processing:

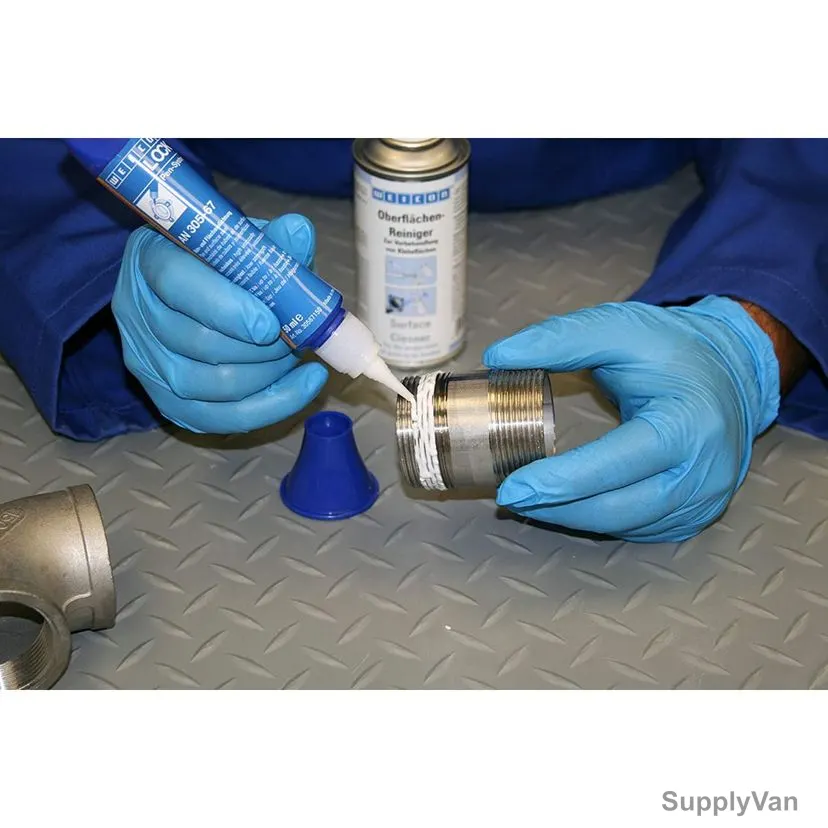

  • Weiconlock is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). Apply Weiconlock in circular motions on the thread. Screw pipe threads together and tighten until desired orientation. When using as flange sealing apply a continuous bead on one side. Join and tighten parts quickly. Do not pour back into the bottle any Weiconlock fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended.
    • Storage:
  • Weiconlock can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps Weiconlock liquid.
    • Technical Data:
  • Colour: White
  • For threaded joints up to: M80 R 3 Inch
  • Viscosity at 25 Deg.C (+77 Deg.F) according to Brookfield: 170.000 - 410.000 mPa·s
  • Max. Gap Bridging: 0.6mm
  • Breakaway strength (Thread): 3 - 5 Nm
  • Prevailing strength: 2 - 4 Nm
  • Shear strength N sq.mm (DIN 54452): 6 - 8 N/sq.mm
  • Handling strength at room temperature: 120 - 240 min.
  • Final strength (100%) after: 24 - 72 h
  • Temperature resistance: -60 to +175 Deg.C

    • High viscosity
    • Low strength
    • Easy disassembly
    Item Name:
    Pipe and Flange Sealing
    Product Series:
    Weiconlock
    Manufacturer:
    Weicon
    Color:
    White
    Size:
    50ml
    Height:
    18.8cm
    Final Strength:
    24/72 Hrs
    Viscosity:
    170.000-410.000 mPa·s
    Temperature Resistance:
    -60 to +175 Deg.C
    Shear Strength:
    6-8 N/sq.mm
    Brand Origin (not manufacture):
    Germany
    Delivery Time:
    2-7 Days
    Unit:
    Piece
