Brand: Weicon

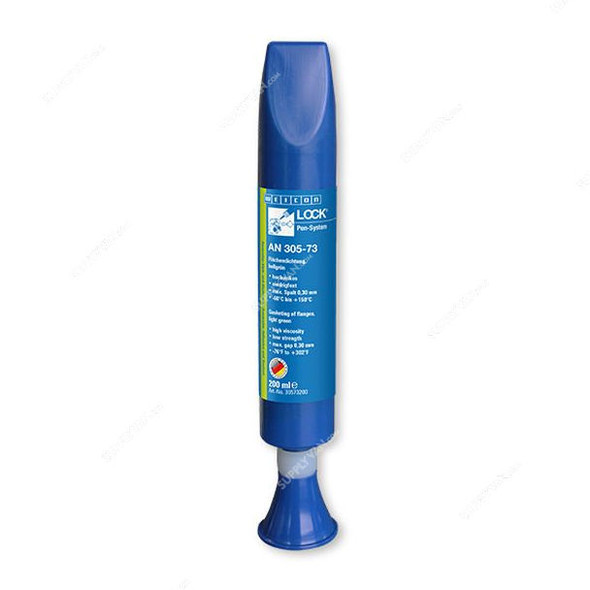

Weicon AN 305-73 Flange Sealing, 30573300, Weiconlock, 300ML
832391181133
832391181133
(No reviews yet)
Write a Review
Payment Methods Accepted
Visa
Mastercard
Pay
POS Card
Cash On Delivery
Bank Transfer
SUPPLYVANTAGE
Original
Products
Products
Warranty
Against Defects
Against Defects
Returns &
Refund Policy
Refund Policy
Dedicated
Support
Support
100% Client
Protection
Protection
Frequently bought together:
Description

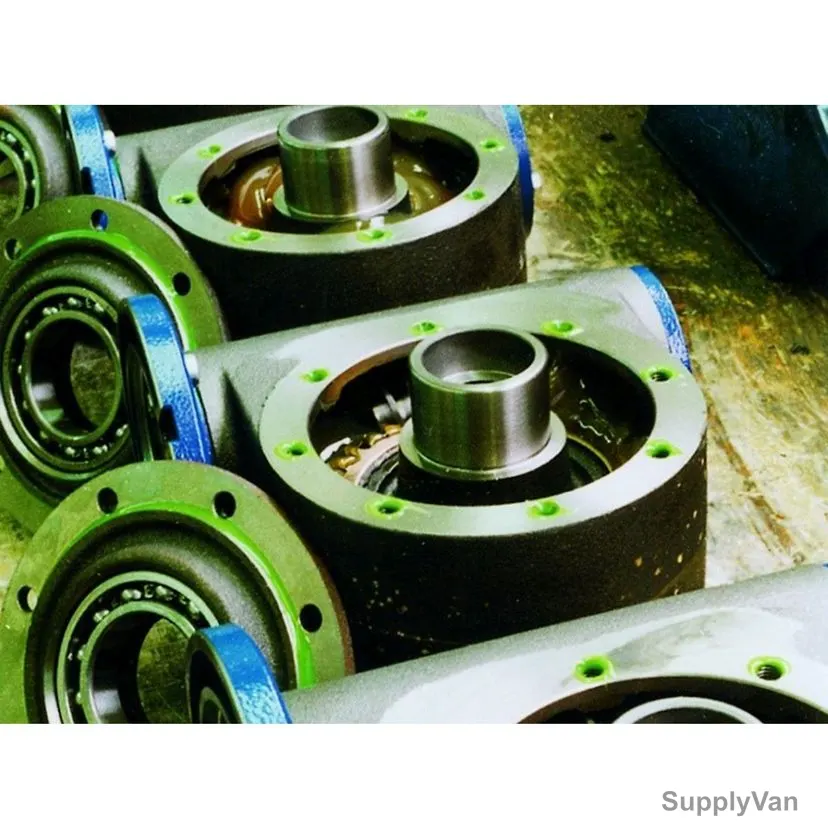

Casketing of flanges, gearboxes and other motor housings Strength values based on M 10 screws, 8.8 grade, thickness of nut 0,8.d Static shear strength based on cylindrical parts of abt. Dia 13mm, tolerance (D-d) = 0.05mm, l/d = 0.88Surface pre-treatment:In general, Weiconlock does not require special pre-treatment as slightly oily surfaces (e.g. on as received parts) will be tolerated. However, best results will be achieved on cleaned, degreased parts (use Weicon Surface Cleaner). If required, the parts should be slightly roughened. Processing:Weiconlock is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). Apply continuous bead on one side of flange, join and tighten parts quickly. For sealing applications (pipe fitting) apply Weiconlock in circular motions on the thread. Screw pipe threads together and tighten until desired orientation. Do not pour back into the bottle any Weiconlock fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended. Storage:Weiconlock can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps Weiconlock liquid. Technical Data: Colour: Light-Green Fluorescent: Yes Viscosity at 25 Deg.C (+77 Deg.F) according to Brookfield: 17.000 - 50.000 ht mPa·s Max. Gap Bridging: 0.3mm Breakaway strength (Thread): 6 - 10 Nm Prevailing strength: 2 - 5 Nm Shear strength N sq.mm (DIN 54452): 4 - 6 N/sq.mm Handling strength at room temperature: 20 - 40 min. Final strength (100%) after: 12 h Temperature resistance: -60 to +150 Deg.C
View AllClose
- High viscosity
- Low strength
- Easy disassembly
Item Name: |
Flange Sealing |
Model: |
30573300 |
Product Series: |
Weiconlock |
EAN Code: |
4024596041212 |
Manufacturer: |
Weicon |
Color: |
Light Green |
Size: |
300ml |
Final Strength: |
12 Hrs |
Viscosity: |
17.000-50.000 ht mPa·s |
Temperature Resistance: |
-60 to +150 Deg.C |
Shear Strength: |
4-6 N/sq.mm |
Brand Origin (not manufacture): |
Germany |
Delivery Time: |
2-7 Days |
Packing Quantity: |
1 |
Unit: |
Piece |
