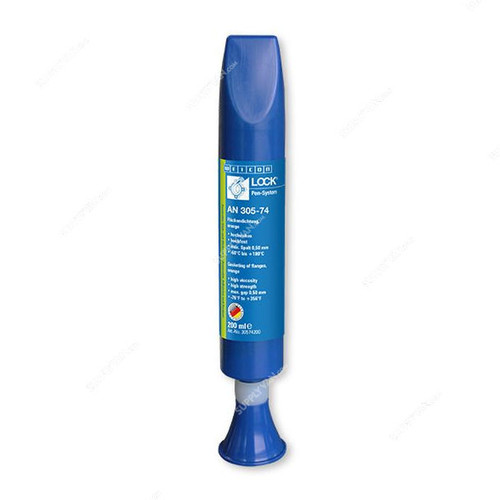

Weicon AN 305-74 Flange Sealing, 30574200, Weiconlock, 200ML

(No reviews yet) Write a Review
Brand:
Weicon
SKU:
658797338933
Minimum Purchase:
1 unit
Item Name:
Flange Sealing
Product Series:
Weiconlock
Manufacturer:
Weicon
Color:
orange
Size:
200ml
Height:
27.5cm
Final Strength:
12 Hrs
IMPA Code:
815212/13
Viscosity:
30.000-100.000 ht mPa·s
Temperature Resistance:
-60 to +180 Deg.C
Shear Strength:
5-10 N/sq.mm
Brand Origin (not manufacture):
Germany
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Weicon AN 305-74 Flange Sealing, 30574200, Weiconlock, 200ML
  • Weicon AN 305-74 Flange Sealing, 30574200, Weiconlock, 200ML
AED195.00
Free Shipping Over 100AED (Dubai, Sharjah, Ajman)

Description

Casketing of flanges, gearboxes and other motor housings Strength values based on M 10 screws, 8.8 grade, thickness of nut 0,8.d Static shear strength based on cylindrical parts of abt. Dia 13mm, tolerance (D-d) = 0.05mm, l/d = 0.88
Surface pre-treatment:
  • In general, Weiconlock does not require special pre-treatment as slightly oily surfaces (e.g. on as received parts) will be tolerated. However, best results will be achieved on cleaned, degreased parts (use Weicon Surface Cleaner). If required, the parts should be slightly roughened.
    • Processing:

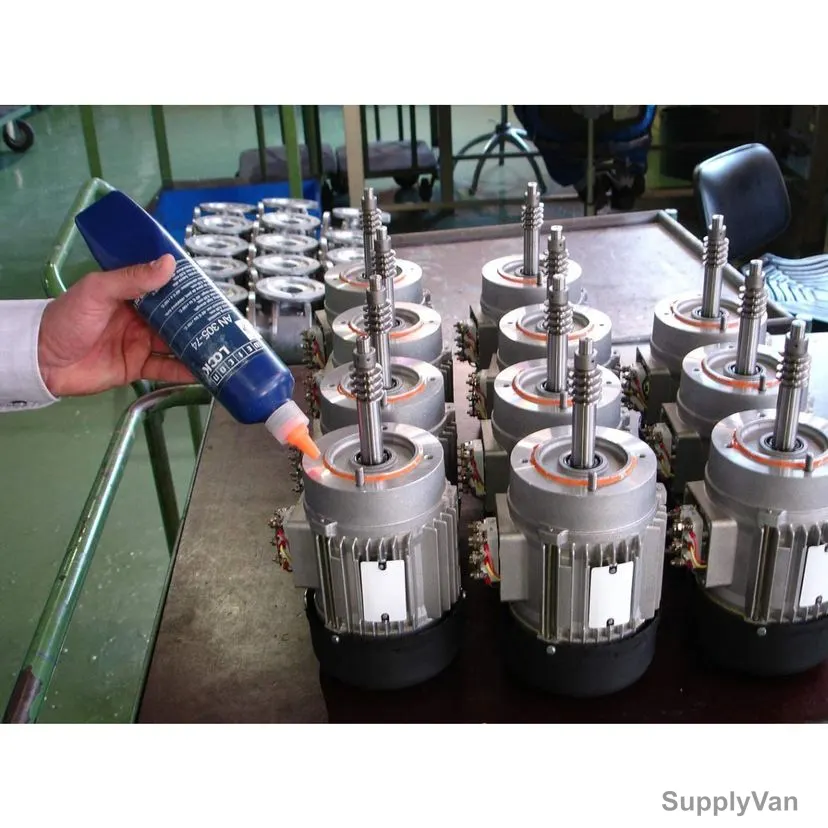

  • Weiconlock is ready for use and should be applied evenly direct from the bottle/tube with the dispensing tip (avoid direct contact of dispensing tip with metal). Apply continuous bead on one side of flange, join and tighten parts quickly. For sealing applications (pipe fitting) apply Weiconlock in circular motions on the thread. Screw pipe threads together and tighten until desired orientation. Do not pour back into the bottle any Weiconlock fluid which had contact with metal; even smallest metal particles will cause the content of the bottle to cure. In series construction, the use of manual or automatic applicators is recommended.
    • Storage:
  • Weiconlock can be stored in the unopened original container for at least 24 months at room temperature. Keep away from heat sources and direct sunlight. The air in the bottle/tube keeps Weiconlock liquid.
    • Technical Data:
  • Colour: Orange
  • Viscosity at 25 Deg.C (+77 Deg.F) according to Brookfield: 30.000 - 100.000 ht mPa·s
  • Max. Gap Bridging: 0.5mm
  • Breakaway strength (Thread): 16 - 24 Nm
  • Prevailing strength: 5 - 10 Nm
  • Shear strength N dq.mm (DIN 54452): 5 - 10 N/sq.mm
  • Handling strength at room temperature: 15 - 30 min.
  • Final strength (100%) after: 12 h
  • Temperature resistance: -60 to +180 Deg.C
  • ISSA-Code: 75.628.24/25
  • IMPA-Code: 815212/13

    • High viscosity
    • High strength
    • Hard to disassemble
    Item Name:
    Flange Sealing
    Product Series:
    Weiconlock
    Manufacturer:
    Weicon
    Color:
    orange
    Size:
    200ml
    Height:
    27.5cm
    Final Strength:
    12 Hrs
    IMPA Code:
    815212/13
    Viscosity:
    30.000-100.000 ht mPa·s
    Temperature Resistance:
    -60 to +180 Deg.C
    Shear Strength:
    5-10 N/sq.mm
    Brand Origin (not manufacture):
    Germany
    Delivery Time:
    2-7 Days
    Unit:
    Piece
