Weicon Coax-Stripper For F-Compression Connectors, 52001001, 6 to 8MM Wire Capacity

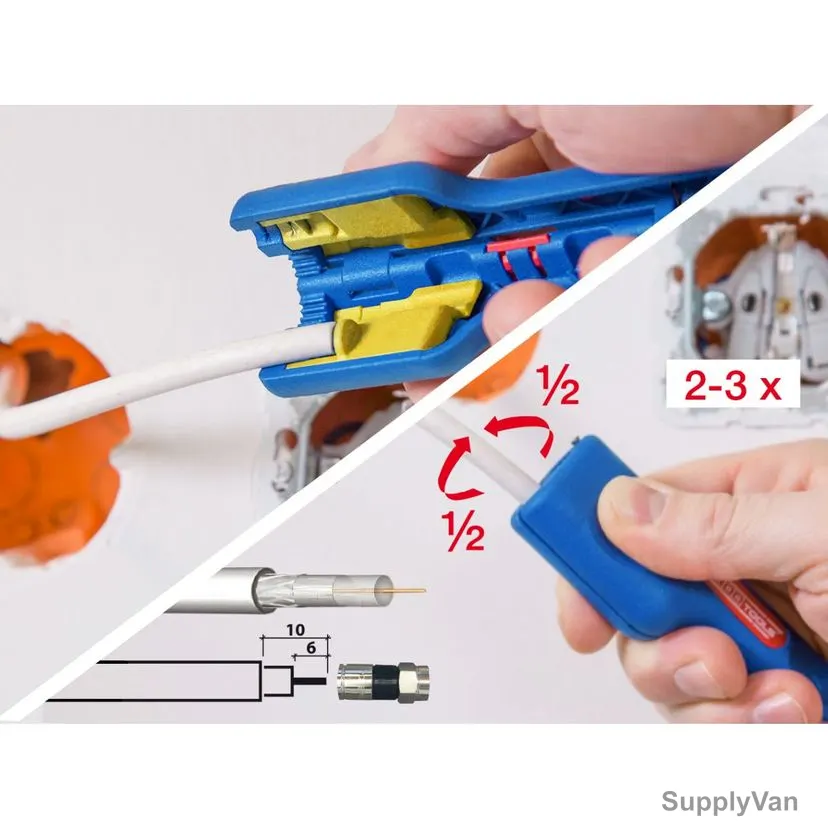

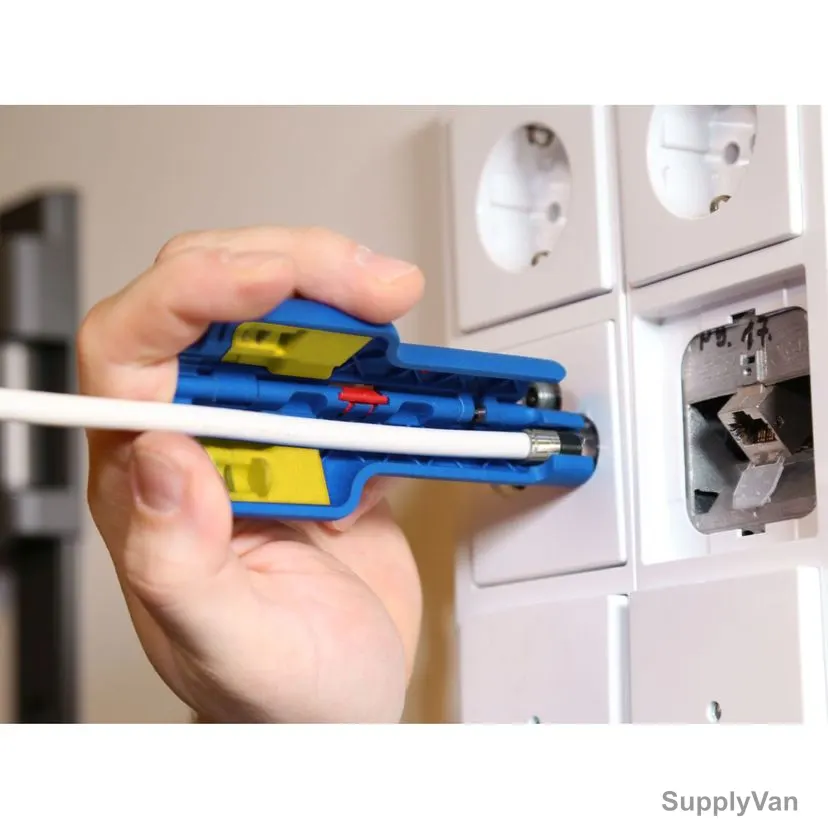

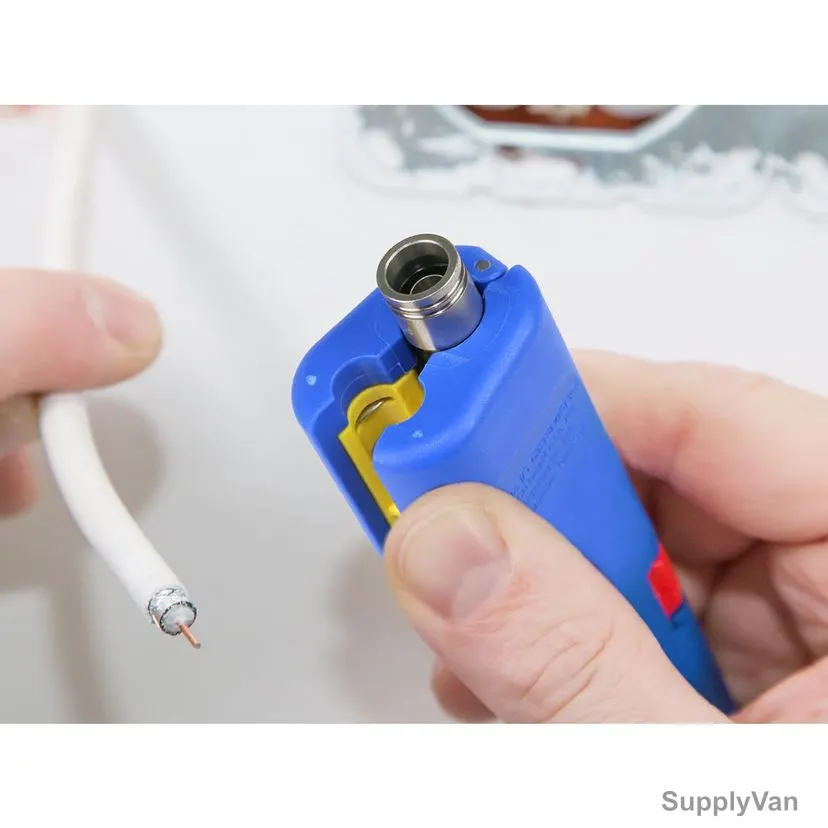

The Coax-Stripper No. 1 F Plus enables a quick and easy stripping of coaxial cables in just one single step. The two opposite pairs of knives allow a fast and space-saving stripping process with a few gentle rotation movements. The preadjusted sheath opening is suitable for common compression connectors (6.5 / 6.5 mm). If needed, the knife inserts can be exchanged in order to be suitable for different sheath openings, e.g. for F-screw connectors (6 / 4 mm). Knife inserts with different sheath openings are available separately and can be changed easily due to a simple click system. The stripper is suitable for TV antenna cables (RG58, RG59), for example. With its gripping jaws, compression connectors can be attached easily to the prepared cable. The integrated open hexagon with 11 mm wrench size (SW 11 mm) enables spacesaving mounting and dismounting of F-connectors. Particularly in narrow spaces the hexagon allows very good accessibility and can be used without further preparation. An interlock guarantees secure storage of the tool.

Cable Types: Coaxial cables or antenna and transmission cables

Application Range: Outer diameter 6 - 8 mm, for compression connectors

Inner Blade: Module inserts with fixed blades, exchangeable

Additional Benefit: Hexagon with 11 mm width across flats, Gripper jaws for mounting F-connectors

Related Products: Module inserts for F-screw connectors 6/4mm

Approval/Certificate: Tested safety TÜV NORD

Length: 125mm

• Stripping of all common coaxial cables (double cut) in just one working operation
