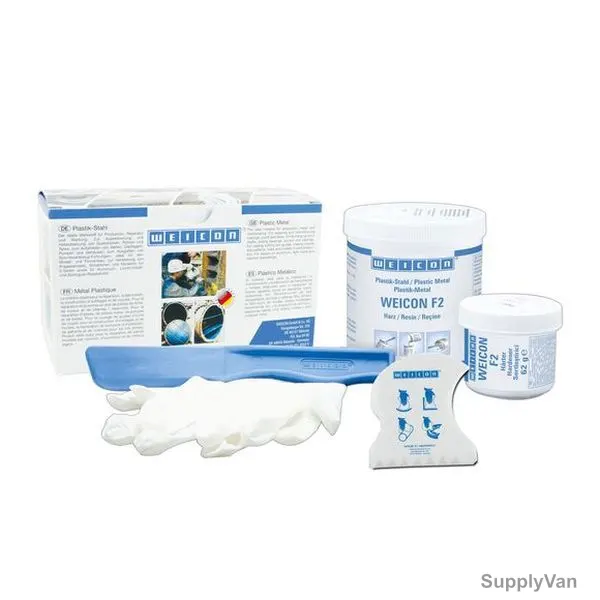

Weicon F2 Epoxy Resin, 10200005, 0.5 Kg
- Brand:
- Weicon
- SKU:
- 596896421558
- Minimum Purchase:
- 1 unit
- Item Name:
- Epoxy Resin
- Manufacturer:
- Weicon
- Size:
- 0.5 Kg
- Application Area:
- Tool construction, Model and Mould making, and in many other industrial applications
- Curing Time:
- 26 hrs
- Viscosity:
- 200000 MPa
- Tensile Strength:
- 31 MPa
- Hardness:
- 77 +/-3
- Elongation at Break:
- 1.3%
- Processing Temperature:
- +15 to 40 Deg.C
- Mixing Ratio by Weight:
- 100:14
- Mixing Ratio by Volume:
- 100:30
- Density:
- 1.6 g/cu.cm
- Max. Layer Thickness:
- 10mm
- Temperature Resistance:
- -35 to +120 Deg.C
- Heating Capacity:
- 0.82 J
- Thermal Conductivity:
- 1.0 W/mK
- Final Strength:
- 72 hrs
- Compressive Strength:
- 39 MPa
- Color After Curing:
- Aluminium
- Impact Strength:
- 3.1 kJ/sq.m
- Bending Strength:
- 26 MPa
- Adhesion Strength:
- 14 MPa
- Brand Origin (not manufacture):
- Germany
- Product Size L x B x H (Cms):
- 19.4L x 11B x 11.8H
- HS Code:
- 39073000
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
Weicon F2 is suited for the casting of models, moulds and templates, for the repair of porous and damaged castings, for the production of prototypes and holding devices, and for pouring out swages to test precision. Weicon F2 can be used in tool construction, model and mould making, and in many other industrial applications.
View AllClose
- Viscous
- Steel-filled
- Low viscosity, which simplifies filling
- Exact reproduction of the model while pouring
- Possibility of precise machining
- Low shrinkage
Item Name: |
Epoxy Resin |
Manufacturer: |
Weicon |
Size: |
0.5 Kg |
Application Area: |
Tool construction, Model and Mould making, and in many other industrial applications |
Curing Time: |
26 hrs |
Viscosity: |
200000 MPa |
Tensile Strength: |
31 MPa |
Hardness: |
77 +/-3 |
Elongation at Break: |
1.3% |
Processing Temperature: |
+15 to 40 Deg.C |
Mixing Ratio by Weight: |
100:14 |
Mixing Ratio by Volume: |
100:30 |
Density: |
1.6 g/cu.cm |
Max. Layer Thickness: |
10mm |
Temperature Resistance: |
-35 to +120 Deg.C |
Heating Capacity: |
0.82 J |
Thermal Conductivity: |
1.0 W/mK |
Final Strength: |
72 hrs |
Compressive Strength: |
39 MPa |
Color After Curing: |
Aluminium |
Impact Strength: |
3.1 kJ/sq.m |
Bending Strength: |
26 MPa |
Adhesion Strength: |
14 MPa |
Brand Origin (not manufacture): |
Germany |
Product Size L x B x H (Cms): |
19.4L x 11B x 11.8H |
HS Code: |
39073000 |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
