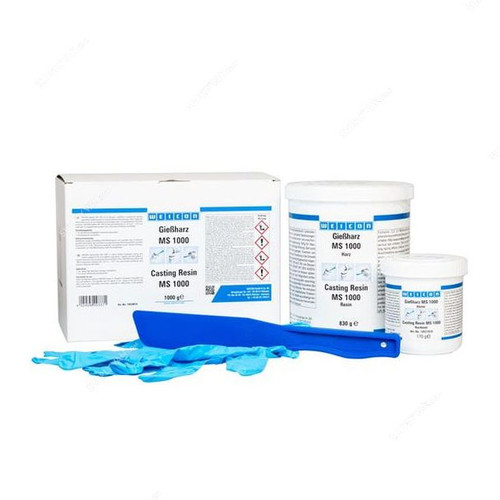

Weicon MS 1000 Casting Resin, 10520010, 1 Kg
- Brand:
- Weicon
- SKU:
- 328466813582
- Minimum Purchase:
- 1 unit
- Item Name:
- Casting Resin
- Manufacturer:
- Weicon
- Size:
- 1 Kg
- Curing Time:
- 16 hrs
- Temperature Resistance:
- -35 to +120 Deg.C
- Tensile Strength:
- 57 MPa
- Viscosity:
- 1200 MPa
- Processing Temperature:
- +15 to 40 Deg.C
- Mixing Ratio by Weight:
- 100:20
- Mixing Ratio by Volume:
- 100:22
- Density:
- 1.1 g/cu.cm
- Max. Layer Thickness:
- 10mm
- Final Strength:
- 24 hrs
- Heating Capacity:
- 1.29 J
- Thermal Conductivity:
- 0.2 W/mK
- Compressive Strength:
- 60 MPa
- Color After Curing:
- Transparent
- Bending Strength:
- 28 MPa
- Adhesion Strength:
- 12 MPa
- Hardness:
- 78 +/-3
- Elongation at Break:
- 2%
- Application Area:
- Electrical industry, Machine construction and in many other applications
- Application:
- Casting electrical components
- Brand Origin (not manufacture):
- Germany
- Product Size L x B x H (Cms):
- 22L x 13B x 16H
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

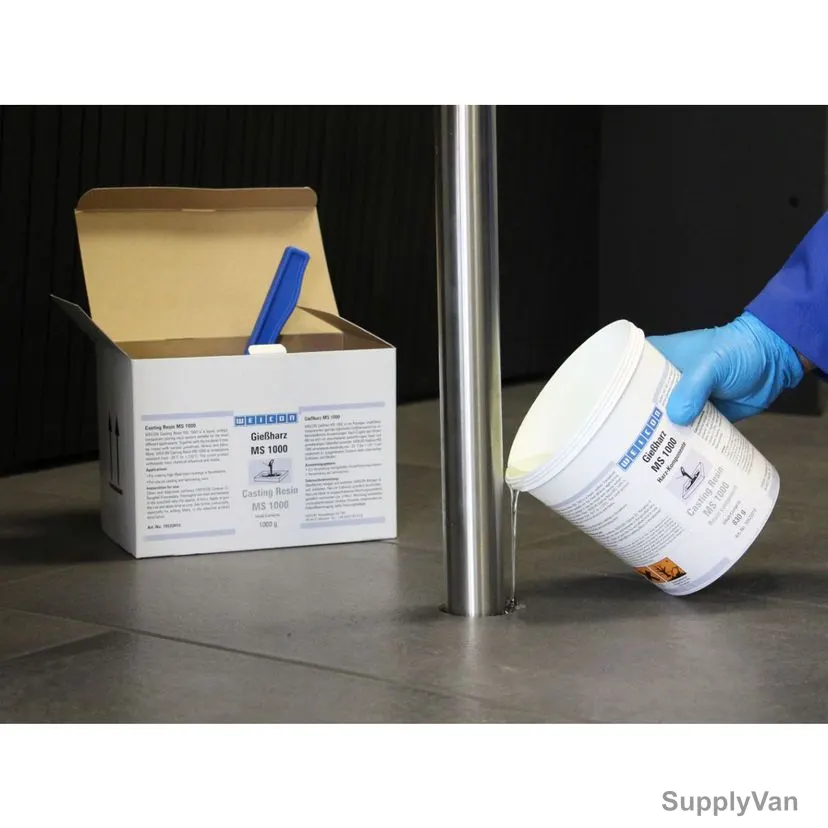

Weicon MS 1000 Casting Resin is suitable for the most diverse applications, such as for casting electrical components, and can be blended by various fillers (in form of powder, fibres and fabric), e.g. for the production of highly filled backfilling compounds. Weicon MS 1000 Casting Resin can be used in the electrical industry, in machine construction and in many other applications.
View AllClose
- Unfilled epoxy resin
- The casting resin is stress-free and has a low viscosity
- The two-component system can be used for a variety of applications. For example, it is suitable for casting electrical parts and components
- Various fillers can be added to increase the viscosity
Item Name: |
Casting Resin |
Manufacturer: |
Weicon |
Size: |
1 Kg |
Curing Time: |
16 hrs |
Temperature Resistance: |
-35 to +120 Deg.C |
Tensile Strength: |
57 MPa |
Viscosity: |
1200 MPa |
Processing Temperature: |
+15 to 40 Deg.C |
Mixing Ratio by Weight: |
100:20 |
Mixing Ratio by Volume: |
100:22 |
Density: |
1.1 g/cu.cm |
Max. Layer Thickness: |
10mm |
Final Strength: |
24 hrs |
Heating Capacity: |
1.29 J |
Thermal Conductivity: |
0.2 W/mK |
Compressive Strength: |
60 MPa |
Color After Curing: |
Transparent |
Bending Strength: |
28 MPa |
Adhesion Strength: |
12 MPa |
Hardness: |
78 +/-3 |
Elongation at Break: |
2% |
Application Area: |
Electrical industry, Machine construction and in many other applications |
Application: |
Casting electrical components |
Brand Origin (not manufacture): |
Germany |
Product Size L x B x H (Cms): |
22L x 13B x 16H |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
