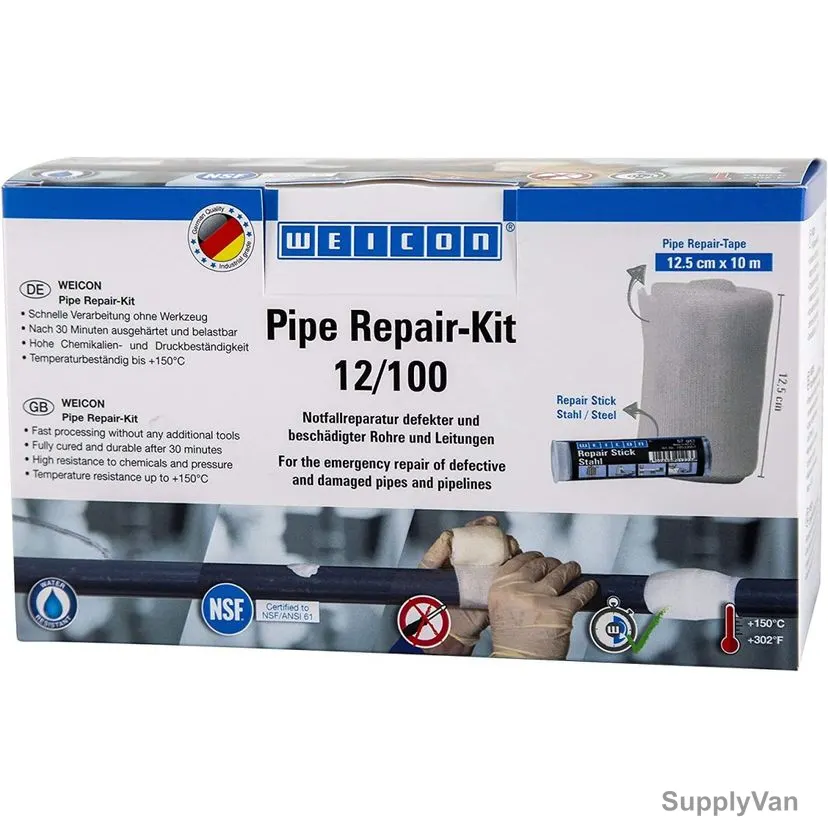

Weicon Pipe Repair Kit, 10710004, 12.5cm x 10 Mtrs
(No reviews yet)
Write a Review
- Brand:
- Weicon
- SKU:
- 798171462155
- Minimum Purchase:
- 1 unit
- Item Name:
- Pipe Repair Kit
- Manufacturer:
- Weicon
- Color:
- Dark Grey
- Width:
- 12.5cm
- Chemical Composition:
- Epoxy resin steel-filled, pasty
- Care Instructions:
- Store Weicon Pipe Repair Kit at room temperature (but up to max. +25 Deg.C) in a dry place. Unopened containers can be stored for 24 months at temperatures from 18 to +25 Deg.C.
- For Use With:
- Pipes, Cables and Conduits 12.5cm X 10 Mtrs
- Length:
- 10 Mtrs
- Temperature Resistance:
- 10 to 35 Deg.C
- Brand Origin (not manufacture):
- Germany
- Product Size L x B x H (Cms):
- 19L x 11B x 11H
- HS Code:
- 58063290
- Delivery Time:
- 2-7 Days
- Unit:
- Kit
Description
It comprises one Weicon Repair Stick Steel, a special repair tape made of fibreglass-reinforced plastic, assembly instructions and a pair of protective gloves. The repair tape is impregnated with a special resin and activated by contact with water. The Pipe Repair Kit can be processed without any additional tools and is used for the reliable and permanent sealing of cracks and leaks. It is very easy and quick to use and shows excellent adhesive properties, high pressure and chemical resistance as well as temperature resistance up to 150 Deg.C. Within 30 minutes, the tape is fully cured and hard-wearing. Due to the fabric properties of the tape, the resulting high flexibility and the simple processing, the repair kit is particularly suitable for sealing leaks in bends, T-pieces or in spaces difficult to access. It can be used on many different surfaces such as stainless steel, aluminium, copper, PVC, many plastics, fibreglass, concrete, ceramics and rubber.Curing Temperature: 6 to 40 Deg.C Polt life for 25gr preparation and +20 Deg.C: 4 Min Handling Strength (35% strength) After: 10 Min Capable of Bearing Mechanical Loads (50% strength) After: 60 Min Final Strength (100%) After: 24 Hrs Pressure (DIN 53281-83): 80 N/sq.mm Medium shear strength after 7 days at +20 deg.C DIN EN 1465 At: Steel sandblasted: 4.1 N/sq.mm Shore Dardness D: 75 Thermal Conductivity (ASTM D 257): 0.6 W/m·K Linear Shrinkage: <1 % Electrical Resistance (ASTM D 149): 5-10 Ohm/cm Dielectric Strength (ASTM D 149): 3.0 kV/mm Thermal Expansion Coefficient (ISO 11359): 30-40 x 10^-6 K^-1 Temperature Resistance: -50 to 120 briefly +150 Deg.C Technical Data Repair TapeBase: Polyurethane Pot-life at 20 deg.C: 3 to 5 Min Handling Strength (35% strength) After: 7 to 10 Min Final hardness after 30 min. Tensile Strength: 35 N/sq.mm Compressive Strength: 150 bar Shore D (ATSM D 1706): 70 Temperature Resistance: +150 Deg.C
View AllClose
- Mixing ratio by volume resin/hardener: 1:1
- Density of the mixture: 2.0 g/cu.cm
- Gap bridging max: 15mm
Item Name: |
Pipe Repair Kit |
Manufacturer: |
Weicon |
Color: |
Dark Grey |
Width: |
12.5cm |
Chemical Composition: |
Epoxy resin steel-filled, pasty |
Care Instructions: |
Store Weicon Pipe Repair Kit at room temperature (but up to max. +25 Deg.C) in a dry place. Unopened containers can be stored for 24 months at temperatures from 18 to +25 Deg.C. |
For Use With: |
Pipes, Cables and Conduits 12.5cm X 10 Mtrs |
Length: |
10 Mtrs |
Temperature Resistance: |
10 to 35 Deg.C |
Brand Origin (not manufacture): |
Germany |
Product Size L x B x H (Cms): |
19L x 11B x 11H |
HS Code: |
58063290 |
Delivery Time: |
2-7 Days |
Unit: |
Kit |
