Brand: Weicon

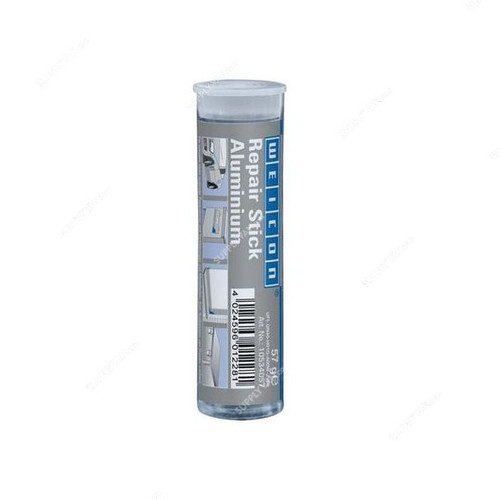

Weicon Repair Stick Aluminium, 10534057, 57GM

314396595376
314396595376
(No reviews yet) Write a Review
All Prices Include VAT
In Stock Ready to Ship
◈
Interested to buy in bulk?
Get customized price
Payment Methods Accepted
Visa Visa
Mastercard Mastercard
Pay Pay
POS Card POS Card
Cash On Delivery Cash On Delivery
Bank Transfer Bank Transfer
SUPPLYVANTAGE
🏅
Original
Products
👍
Warranty
Against Defects
💲
Returns &
Refund Policy
🎧
Dedicated
Support
🛡️
100% Client
Protection
Frequently bought together:

Description

For the quick and nonrusting repair and bonding of metal parts. For the repair of cracks, holes and leaks in car bodies, gearboxes and tanks, window frames and profiles, and boats and models.

The Weicon Repair Stick Aluminium can be used in machine and system construction, in the automotive industry, in gear construction, window construction, model building and many other applications.

Surface pre-treatment

To ensure a perfect bond, the surfaces to be joined must be clean and dry (e.g., clean and degrease using Weicon Surface Cleaner).

Processing

Weicon Repair Sticks cover gaps of max. 15 mm per procedure. The pot life given is for a material quantity of 25 g at room temperature. If larger quantities are used, the curing time will be faster due to the typical reaction heat of epoxy resins (exothermic reaction). Similarly, higher ambient temperatures shorten the cure time (as a rule of thumb, every +10 Deg.C increase above room temperature will halve working and curing time). Temperatures below +16 Deg.C will extend working and curing times considerably, while below about +5 Deg.C, no reaction will take place at all.

Storage

When kept at a constant room temperature of about +20 Deg.C and unopened in dry conditions, Weicon Repair Sticks will keep for at least 18 months. Avoid direct sunlight.

Safety and health

When using Weicon products, the physical, safety technical, toxicological and ecological data and regulations in our EC safety data sheets (www.Weicon.com) must be observed.

Technical Data
  • Colour after curing: Aluminium
  • Mixing ratio by volume resin/hardener: 1:1
  • Density of the mixture: 1.9 g/cu.cm
  • Gap bridging max: 15mm
  • Polt life for 25gr preparation and +20 Deg.C: 4 minute
  • Handling strength (35% strength) after: 10 minute
  • Capable of bearing mechanical loads (50% strength) after: 60 minute
  • Medium shear strength after 7 days at +20 Deg.C DIN EN 1465 at Aluminium sandblasted: 4.2 N/sq.mm
  • Shore hardness D: 75
  • Thermal conductivity (ASTM D 257) : 0.65 W/m.K
  • Linear shrinkage: <1 %
  • Dielectric strength (ASTM D 149): 3 kV/mm

      • Item Name:
      Repair Stick Aluminium
      Manufacturer:
      Weicon
      Size:
      57gm
      Height:
      10.5cm
      Processing Temperature:
      +10 to +35 Deg.C
      Temperature Resistance:
      -50 to +150 Deg.C
      Curing Temperature:
      +6 to +40 Deg.C
      Final Strength:
      24 Hrs
      Texture:
      Pasty
      Pressure:
      80 N/sq.mm
      Base Type:
      Epoxy resin aluminium-filled
      Brand Origin (not manufacture):
      Germany
      Delivery Time:
      2-7 Days
      Unit:
      Piece
