Weicon Repair Stick Titanium, 10535115, 115GM

(No reviews yet) Write a Review
Brand
SKU:
867821278116
Minimum Purchase:
1 unit
Item Name:
Repair Stick Titanium
Manufacturer:
Weicon
Size:
115gm
Height:
20.5cm
Processing Temperature:
+10 to +50 Deg.C
Temperature Resistance:
-50 to +300 Deg.C
Curing Temperature:
+6 to +65 Deg.C
Final Strength:
48 Hrs
Texture:
Pasty
Pressure:
80 N/sq.mm
Base Type:
Epoxy resin titanium-filled
Brand Origin (not manufacture):
Germany
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
AED60.00 (Incl.VAT)

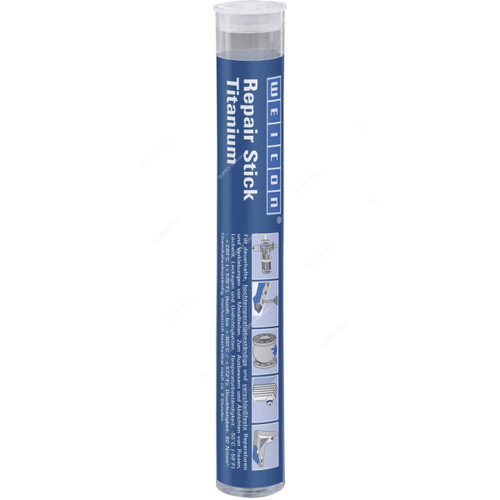

Weicon Repair Stick Titanium, 10535115, 115GM

Weicon Repair Stick Titanium, 10535115, 115GM

SKU: 867821278116

It is suited for the permanent and wear resistant repair and bonding of metal parts such as tanks and pipelines, aluminium, light metal and injection moulded parts, shafts and slide bearings, pumps and housings and torn-out threads.

The Weicon Repair Stick Titanium can be used in machine and system construction, tank construction and apparatus engineering, and in many other industrial applications.

Surface pre-treatment

To ensure a perfect bond, the surfaces to be joined must be clean and dry (e.g., clean and degrease using Weicon Surface Cleaner).

Processing

Weicon Repair Sticks cover gaps of max. 15 mm per procedure. The pot life given is for a material quantity of 25 g at room temperature. If larger quantities are used, the curing time will be faster due to the typical reaction heat of epoxy resins (exothermic reaction). Similarly, higher ambient temperatures shorten the cure time (as a rule of thumb, every +10 Deg.C increase above room temperature will halve working and curing time). Temperatures below +16 Deg.C will extend working and curing times considerably, while below about +5 Deg.C, no reaction will take place at all.

Storage

When kept at a constant room temperature of about +20 Deg.C and unopened in dry conditions, Weicon Repair Sticks will keep for at least 18 months. Avoid direct sunlight.

Safety and health

When using Weicon products, the physical, safety technical, toxicological and ecological data and regulations in our EC safety data sheets (www.Weicon.com) must be observed.

Technical Data
  • Colour after curing: Grey Green
  • Mixing ratio by volume resin/hardener: 1:1
  • Density of the mixture: 1.9 g/cu.cm
  • Gap bridging max: 15mm
  • Polt life for 25gr preparation and +20 Deg.C: 30 minute
  • Handling strength (35% strength) after: 60 minute
  • Capable of bearing mechanical loads (50% strength) after: 240 minute
  • Shore hardness D: 80
  • Thermal conductivity (ASTM D 257): 0.5 W/m.K
  • Linear shrinkage: <1%
  • Dielectric strength: 3 kV/mm
