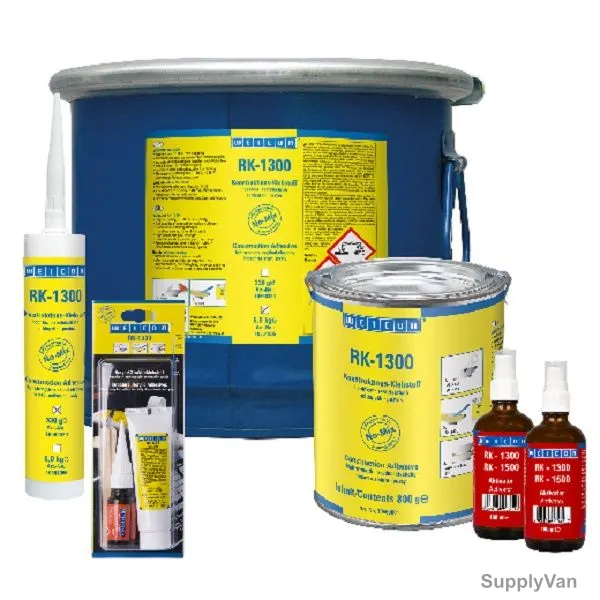

Weicon RK-1300 Structural Structural Acrylic Adhesive, 10560330, 330GM

(No reviews yet) Write a Review
Brand:
Weicon
SKU:
257429465883
Minimum Purchase:
1 unit
Item Name:
Structural Acrylic Adhesive
Manufacturer:
Weicon
Size:
330gm
Base Type:
Methyl Methacrylate
Temperature Resistance:
-50 to +180 Deg.C
Lifetime:
12 Months
Processing Temperature:
+10 to +40 Deg.C
Final Strength:
24 Hrs
Texture:
Pasty
Curing Temperature:
+18 Deg.C
Brand Origin (not manufacture):
Germany
Height:
23cm
HS Code:
35069190
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Weicon RK-1300 Structural Structural Acrylic Adhesive, 10560330, 330GM
  • Weicon RK-1300 Structural Structural Acrylic Adhesive, 10560330, 330GM
  • Weicon RK-1300 Structural Structural Acrylic Adhesive, 10560330, 330GM
  • Weicon RK-1300 Structural Structural Acrylic Adhesive, 10560330, 330GM
  • Weicon RK-1300 Structural Structural Acrylic Adhesive, 10560330, 330GM
  • Weicon RK-1300 Structural Structural Acrylic Adhesive, 10560330, 330GM
AED368.00

Available on Request

Description

Weicon RK-1300 Structural Adhesive has high impact, peel, and shear strength.

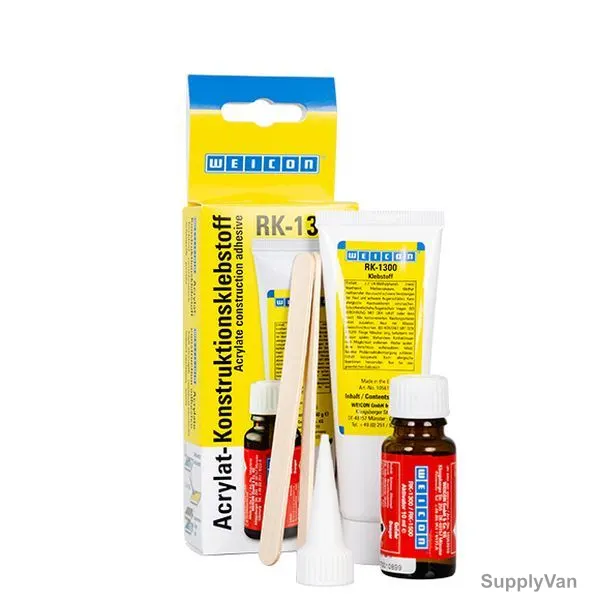

The system consists of adhesive and activator which are used in the “no mix” procedure. This makes processing easier by eliminating mixing procedures. The product is particularly suitable for bonding large surfaces of many different materials such as metals, ferrites and rigid plastics.

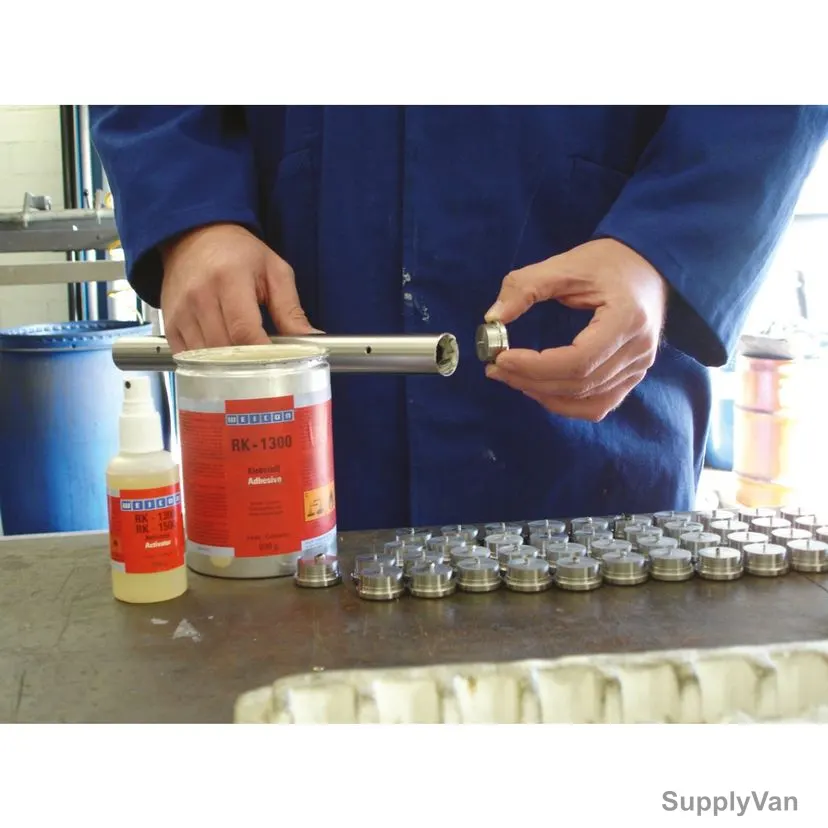

Weicon RK-1300 can be used in mechanical and apparatus engineering, vehicle construction, tool and mould making, the building and furniture industry and in many other industrial applications.

Surface pre-treatment

To ensure perfect bonding, the surfaces to be joined must be clean and dry (to clean and degrease use Weicon Surface Cleaner). The highest strength values can be achieved through additional pre-treatment of the surfaces, such as roughening using blasting or abrasive agents. Several plastics, in particular polyamide, PTFE, polyolefin etc. can only be bonded after special surface treatment, for example using fluoridation, low-pressure plasma, corona, flame impingement etc.

ProcessingProcessing of the RK Activator

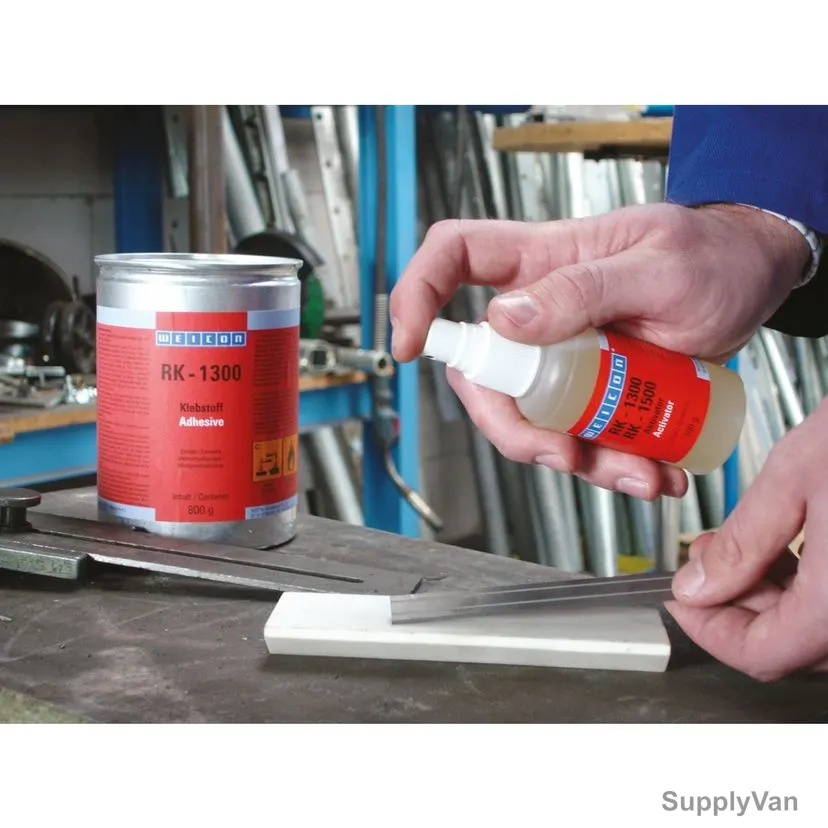

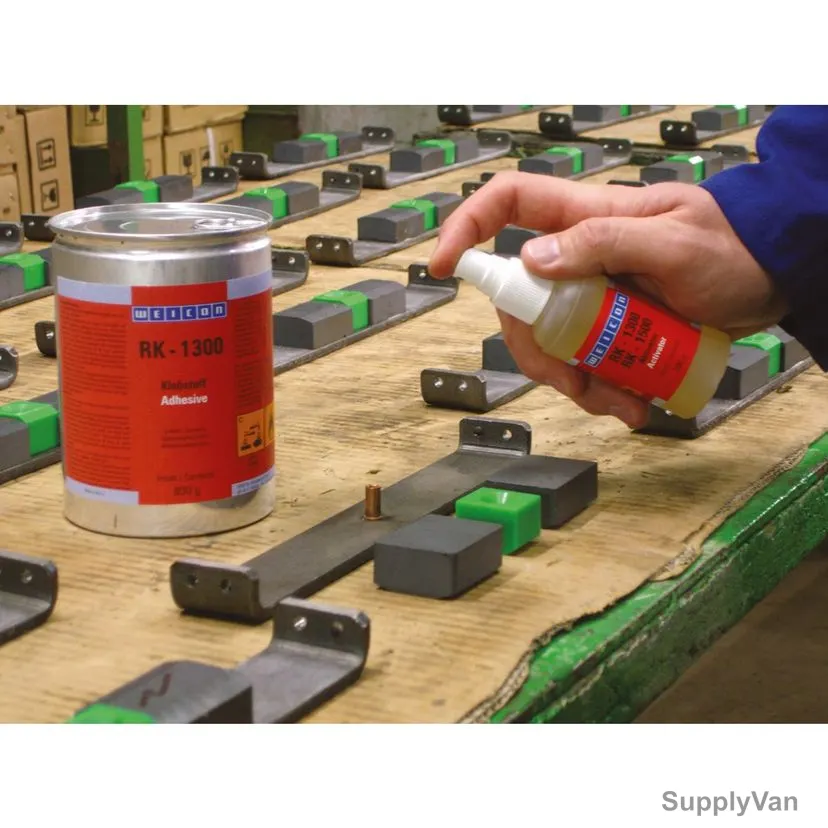

The RK Activator is applied, depending on the size of the bonding gap, on either one side or both sides of the surfaces to be bonded (brush, spray, dip). In case of bond lines with a max. of 0.4 mm in width, the Activator only needs to be applied on one side, for bond lines of up to a max. of 0.8 mm in width and/or rough, porous or passive surfaces (chrome, nickel etc.) the Activator must be applied on both sides. For smooth plastic and metal surfaces, approx. 30 g/m² is necessary, for rough and porous surfaces up to 150 g/m² of Activator may be necessary. The evaporation time at room temperature (+20 Deg.C) is at least 5 minutes. A significant advantage to other adhesive systems is that the coated components can be stored up to 30 days at room temperature (+20 Deg.C) without loosing effectiveness.

Processing of the RK Adhesive

The Adhesive is applied only on one side and normally on the surface which is not coated with Activator. The size of the bonding gap can be up to 0.80 mm (only if the Activator is applied on both sides). Bonding gaps of 0.15 mm to 0.25 mm in width always have the highest tensile shear strength. For smooth plastic and metal surfaces, approx. 180g/m² of the adhesive are needed, for rough and porous surfaces approx. 300g/m².

Processing temperature

The processing should take place at room temperature (approx. +20 Deg.C). Higher temperatures, e.g. +40 Deg.C shorten the positioning and curing times by approx. 30%, lower temperatures of approx. +10 Deg.C increase the respective times by approx. 50% and at down +5 Deg.C almost no reaction occurs anymore.

Storage

Weicon RK Construction Adhesives have a shelf life of at least 12 months if stored in a dry room at a constant temperature of approx. +20 Deg.C. At temperatures between +1 Deg.C and +7 Deg.C the shelf life can be extended up to 24 months. This applies for closed original units which have not been directly or indirectly exposed to sunlight. In case of storage temperatures exceeding +40 Deg.C and high humidity, the shelf-life is shortened to 6 months.

Weicon RK-Activator has a shelf life of at least 6 months if stored in a dry room at a constant temperature of approx. +20 Deg.C. At temperatures between +1 Deg.C and +7 Deg.C the shelf life can be extended up to 24 months. This applies for closed original units which have not been directly or indirectly exposed to sunrays. In case of storage temperatures exceeding +40 Deg.C and high humidity, the shelf-life is considerably shortened.

Safety and health

When using Weicon products, the physical, safety technical, toxicological and ecological data and regulations in our EC safety data sheets (www.Weicon.com) must be observed.

Technical Data
  • Colour after curing: yellowish, transparent
  • Density of the mixture: 1,00 g/cu.cm
  • Viscosity of the mixture: 4.500 MPa/s
  • Application procedure: No-Mix
  • Handling strength (35% strength) after: 5 Minute
  • Capable of bearing mechanical loads (50% strength) after: 8 Minute
  • Adhesive gap bridging: 0.4-0.8mm
  • Shear strength according to DIN EN 1465 at Aluminium: 20 N/sq.mm
  • Shear strength according to DIN EN 1465 at Steel sand blasted: 25 N/sq.mm
  • Shear strength according to DIN EN 1465 at Stainless Steel: 30 N/sq.mm
  • Shear strength according to DIN EN 1465 at PC: 10 N/sq.mm

      • Item Name:
      Structural Acrylic Adhesive
      Manufacturer:
      Weicon
      Size:
      330gm
      Base Type:
      Methyl Methacrylate
      Temperature Resistance:
      -50 to +180 Deg.C
      Lifetime:
      12 Months
      Processing Temperature:
      +10 to +40 Deg.C
      Final Strength:
      24 Hrs
      Texture:
      Pasty
      Curing Temperature:
      +18 Deg.C
      Brand Origin (not manufacture):
      Germany
      Height:
      23cm
      HS Code:
      35069190
      Delivery Time:
      2-7 Days
      Unit:
      Piece
