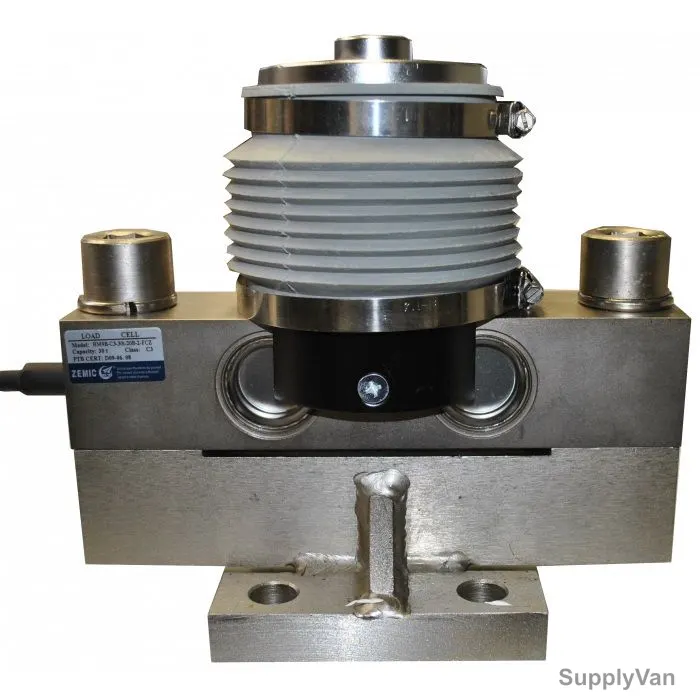

Zemic Dual Shear Beam Load Cell, HM9B, Nickel Plated Alloy Steel, 40 Ton
(No reviews yet)
Write a Review
- Brand:
- Zemic
- SKU:
- 869388767123
- Minimum Purchase:
- 1 unit
- Item Name:
- Load Cell
- Model:
- HM9B
- Manufacturer:
- Zemic
- Material:
- Alloy Steel
- Color:
- Silver
- Finish:
- Nickel Plated
- Sensitivity:
- 2.0 mV/V
- Weight Capacity:
- 40 Ton
- Accuracy:
- C3
- Resistance:
- Input: 700 Ohm, Output: 703 Ohm
- Ingress Protection (IP Rating):
- IP68
- Storage Temperature:
- -40 to 70 Deg.C
- Brand Origin (not manufacture):
- Netherlands
- Certification:
- 2937,5947,18057
- Warranty (Subject to Conditions):
- 1 Year
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
The Zemic Dual Shear Beam Load Cell is the perfect load cell for applications where no power is available, such as in truck scales. This 40 ton electroactive shear beam load cell is the most accurate digital sensor to measure the weigh of a variety of vehicles in your workshop. It uses nickel plated alloy steel and has two ports that are IP68 rated, meaning it can be completely submerged under water during a rainstorm. With automatic calibration theyre great for businesses that need produce as little downtime as possible.
View AllClose
- Nickel plated alloy steel IP68 dual shear beam load cell
- High accuracy
- Suitable for truck, track, hopper and other electronic weighing devices
- Current calibrated (sc-option)
- Max. Number of Load Cell Intervals: 3000 nLC
- Ratio of min. LC Verification Interval: 7500 Y
- Safe Overload: 150%
- Ultimate Overload: 300%
- Insulation Resistance: >/-5000 MOhm
- Recommended Torque on Fixation Bolts: 1100 Nm
Item Name: |
Load Cell |
Model: |
HM9B |
Manufacturer: |
Zemic |
Material: |
Alloy Steel |
Color: |
Silver |
Finish: |
Nickel Plated |
Sensitivity: |
2.0 mV/V |
Weight Capacity: |
40 Ton |
Accuracy: |
C3 |
Resistance: |
Input: 700 Ohm, Output: 703 Ohm |
Ingress Protection (IP Rating): |
IP68 |
Storage Temperature: |
-40 to 70 Deg.C |
Brand Origin (not manufacture): |
Netherlands |
Certification: |
2937,5947,18057 |
Warranty (Subject to Conditions): |
1 Year |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
