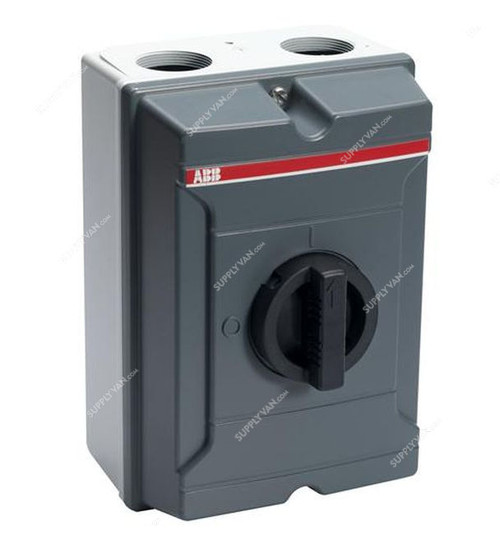

ABB Enclosed Switch Disconnector, KSE363TPN, 3P, 22 kW, 63A
(No reviews yet)
Write a Review
- Brand:
- Abb
- SKU:
- 216852131132
- Minimum Purchase:
- 1 unit
- Item Name:
- Switch Disconnector
- Model:
- KSE363TPN
- Article Number:
- 2CMA144580R1000
- EAN Code:
- 7392696445801
- Manufacturer:
- Abb
- Material:
- Aluminium
- Color:
- Grey
- Pollution Degree:
- 3 Degree
- Amps (A):
- 63A
- Voltage:
- 380-415V
- Ingress Protection (IP Rating):
- IP65
- Depth:
- 118mm
- Handle Color:
- Black
- Manufacture Part Number:
- 2CMA144580R1000
- Number of Poles:
- 3P
- Height (MilliMeter):
- 230mm
- Width (MilliMeter):
- 160mm
- Torque (Nm):
- 2 Nm
- Short Circuit Current:
- 13 kA
- Insulation Voltage:
- 750V
- Current:
- 63A
- Terminal Type:
- Screw
- Handle Type:
- Round
- Cross Section:
- 1.5-35 sq.mm
- Operational Voltage:
- 750V
- Power:
- 22 kW
- Brand Origin (not manufacture):
- Germany
- Standards:
- IEC 60947-1
- Certification:
- CE
- Green Certifications:
- RoHS
- Packing Size L x B x H (Cms):
- 15L x 24B x 17H
- Delivery Time:
- 2-7 Days
- Packing Quantity:
- 1
- Unit:
- Piece
- Pieces per unit:
- 1
Description
The dye casted aluminium alloy (silumin) enclosure is extremely rigid, and well suited for harsh environment. The surface is polyester coated and well protected from corrosion. Installation is made easy, thanks to the easy access to terminals, screwed cover and with the grommet type of glands included. The cover is interlocked, and handle pad lockable with two padlocks. The handle can also be padlocked in On position, by removing two small plastic bits. N and PE terminals included.
View AllClose
- Rated Short-Circuit Making Capacity: 1.4 kA
- Protection Type: Watertight
- Power Loss: 2.8W (at Rated Operating Conditions per Pole)
- Position of Line Terminals: Top In - Bottom Out
- Neutral Type: Fixed
- Cable Entry Position: Up/Down
- Cable Outlets Per Side: 2 x M40/2 x M40+M16
- Impact Resistance Rating: IK07
- Enclosure Type: Frontex2
- Maximum Mounted Auxiliary Contacts: 2 NO, 2 NC
- Mechanical Durability: 20000
Item Name: |
Switch Disconnector |
Model: |
KSE363TPN |
Article Number: |
2CMA144580R1000 |
EAN Code: |
7392696445801 |
Manufacturer: |
Abb |
Material: |
Aluminium |
Color: |
Grey |
Pollution Degree: |
3 Degree |
Amps (A): |
63A |
Voltage: |
380-415V |
Ingress Protection (IP Rating): |
IP65 |
Depth: |
118mm |
Handle Color: |
Black |
Manufacture Part Number: |
2CMA144580R1000 |
Number of Poles: |
3P |
Height (MilliMeter): |
230mm |
Width (MilliMeter): |
160mm |
Torque (Nm): |
2 Nm |
Short Circuit Current: |
13 kA |
Insulation Voltage: |
750V |
Current: |
63A |
Terminal Type: |
Screw |
Handle Type: |
Round |
Cross Section: |
1.5-35 sq.mm |
Operational Voltage: |
750V |
Power: |
22 kW |
Brand Origin (not manufacture): |
Germany |
Standards: |
IEC 60947-1 |
Certification: |
CE |
Green Certifications: |
RoHS |
Packing Size L x B x H (Cms): |
15L x 24B x 17H |
Delivery Time: |
2-7 Days |
Packing Quantity: |
1 |
Unit: |
Piece |
Pieces per unit: |
1 |
