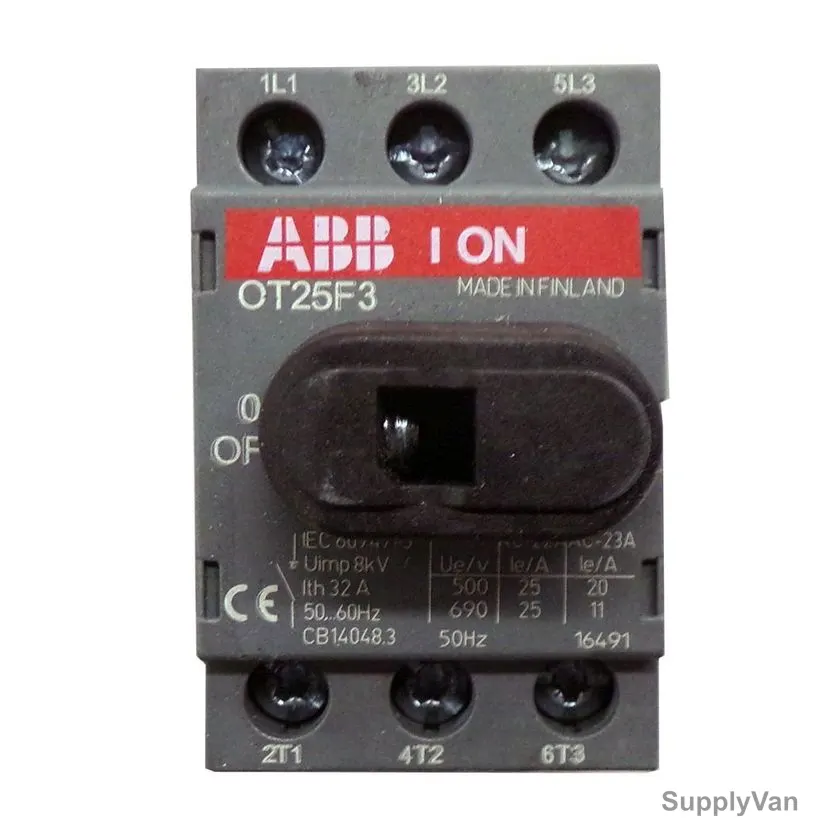

ABB Switch Disconnector, OT25F3, 3 Pole, 750V, 25A
(No reviews yet)
Write a Review
- Brand:
- Abb
- SKU:
- 812475242212
- Minimum Purchase:
- 1 unit
- Item Name:
- Switch Disconnector
- Model:
- OT25F3
- Manufacturer:
- Abb
- Color:
- Grey
- Manufacture Part Number:
- 1SCA104857R1001
- Number of Poles:
- 3P
- Amps (A):
- 25A
- Height:
- 68mm
- Width:
- 35mm
- Length:
- 56mm
- Torque (Nm):
- 0.8 Nm
- Ingress Protection (IP Rating):
- IP20
- Mounting Type:
- Base Mounting
- Terminal Type:
- Screw
- Handle Type:
- Knob
- Cross Section:
- 0.75-10 sq.mm
- Operational Voltage:
- 750V
- Brand Origin (not manufacture):
- Germany
- Certification:
- UL
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description
ABB 3-pole switch disconnector is a front operated, base mounted, DIN-rail mountable switch-disconnector/non-fusible disconnect switch with protected clamp terminals, handle and shaft are not included.
View AllClose
- Mechanical Durability: 20000
Item Name: |
Switch Disconnector |
Model: |
OT25F3 |
Manufacturer: |
Abb |
Color: |
Grey |
Manufacture Part Number: |
1SCA104857R1001 |
Number of Poles: |
3P |
Amps (A): |
25A |
Height: |
68mm |
Width: |
35mm |
Length: |
56mm |
Torque (Nm): |
0.8 Nm |
Ingress Protection (IP Rating): |
IP20 |
Mounting Type: |
Base Mounting |
Terminal Type: |
Screw |
Handle Type: |
Knob |
Cross Section: |
0.75-10 sq.mm |
Operational Voltage: |
750V |
Brand Origin (not manufacture): |
Germany |
Certification: |
UL |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
