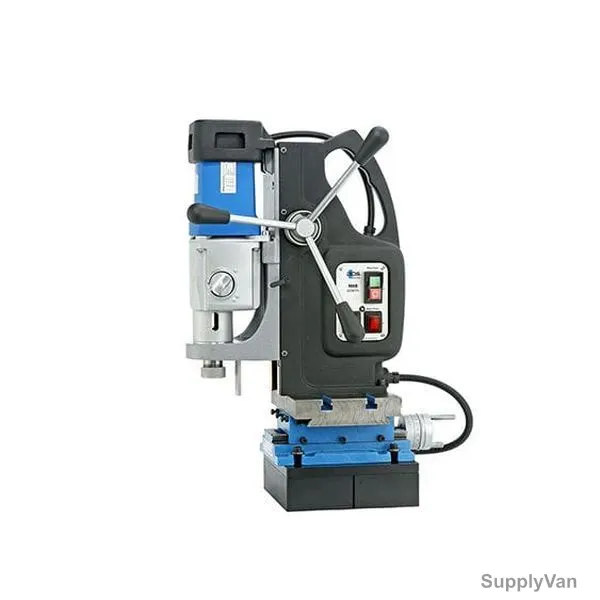

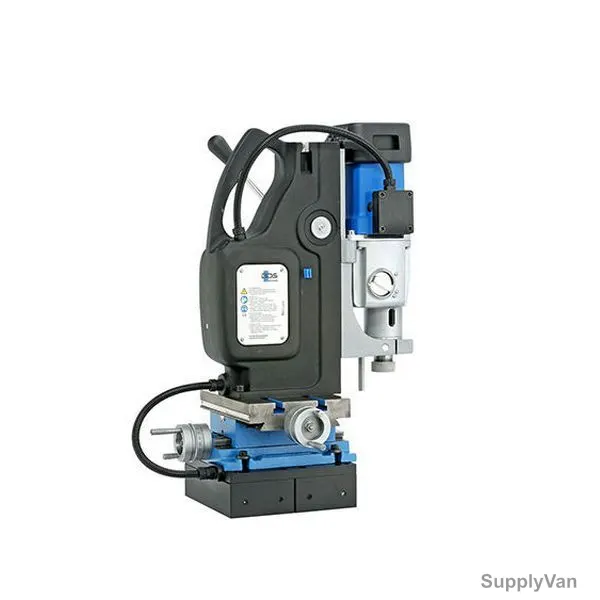

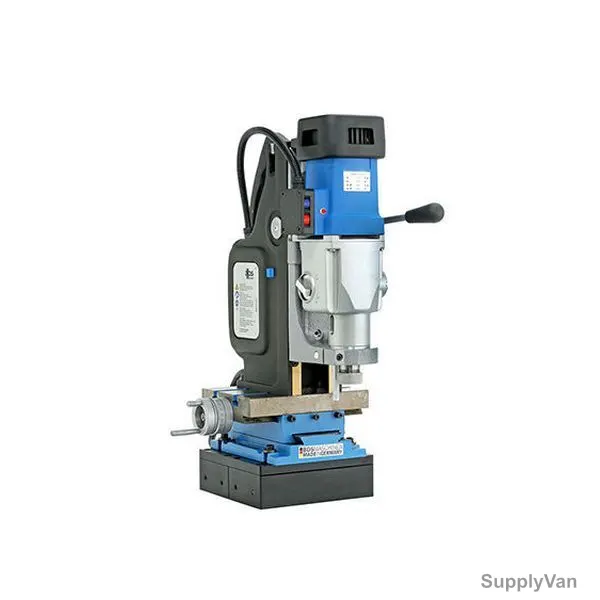

Bds Magnetic Drill Press With Milling Table, MAB825KTS, 1800W, 80MM
(No reviews yet)
Write a Review
- Brand:
- Bds
- SKU:
- 352545377554
- Minimum Purchase:
- 1 unit
- Item Name:
- Magnetic Drill Press
- Model:
- MAB825KTS
- Manufacturer:
- Bds
- Motor Power:
- 1800W
- Arbor Size:
- 19-32mm
- Drilling Capacity:
- 80mm
- Reaming Diameter:
- 31.75mm
- Twist Drill Diameter:
- 31.75mm
- Countersink Diameter:
- 50mm
- Corded/Cordless:
- Corded
- Arbor Type:
- Keyless Weldon
- Drilling Depth:
- 255mm
- Spindle Taper:
- MT3
- Voltage:
- 110-230VAC
- Cutting Depth:
- 55mm
- Brand Origin (not manufacture):
- Germany
- Product Size L x B x H (Cms):
- Magnet: 22 x 22 x 5.4cm
- Delivery Time:
- 2-7 Days
- Unit:
- Piece
Description

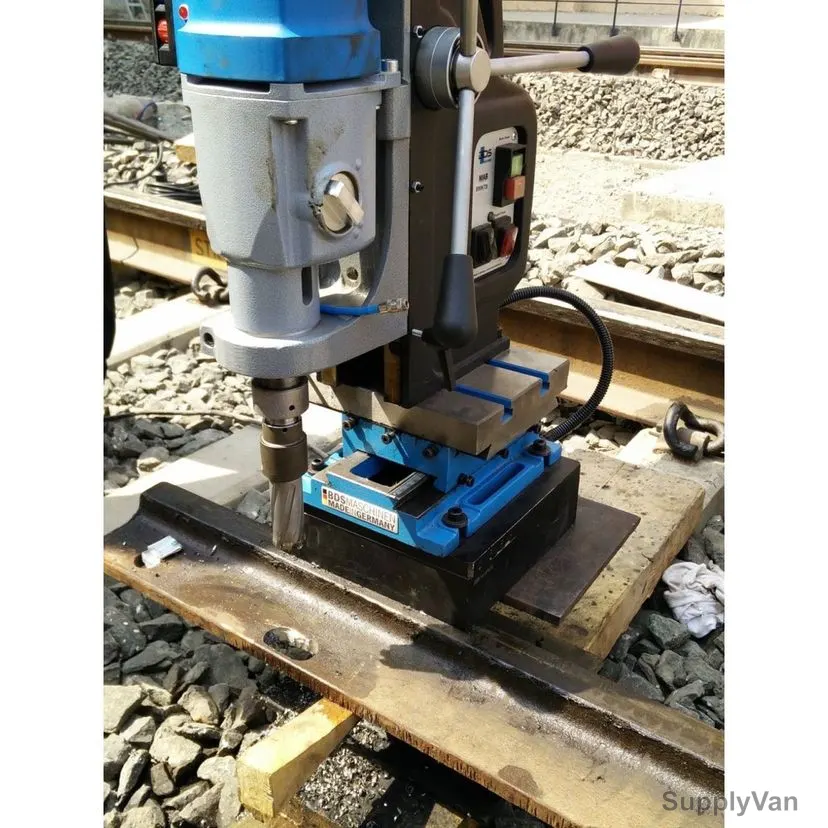

Full Performance & Flexibility For Steel, Plant & Machinery Construction. MAB 825 KTS the innovative portable milling machine also called as magnetic base drilling milling machine is an advanced machine tool equipped with cross table base. The stable cross table allows offset drilling and hole patterns. The optional collet chuck available facilitates light-duty milling tasks such as elongated holes or slots. Ideal for milling, drilling, tapping, countersink and reaming.
View AllClose
- Ideal for drilling and milling
- Cross table base to move 110mm in X and 120mm in Y axis
- Light milling up to dia 13mm
- Reversible motor
- Variable speed & torque control
- Magnet indicator and Carbon brush indicator
- Overheating protection
- Delivered in large carry case on wheels
Item Name: |
Magnetic Drill Press |
Model: |
MAB825KTS |
Manufacturer: |
Bds |
Motor Power: |
1800W |
Arbor Size: |
19-32mm |
Drilling Capacity: |
80mm |
Reaming Diameter: |
31.75mm |
Twist Drill Diameter: |
31.75mm |
Countersink Diameter: |
50mm |
Corded/Cordless: |
Corded |
Arbor Type: |
Keyless Weldon |
Drilling Depth: |
255mm |
Spindle Taper: |
MT3 |
Voltage: |
110-230VAC |
Cutting Depth: |
55mm |
Brand Origin (not manufacture): |
Germany |
Product Size L x B x H (Cms): |
Magnet: 22 x 22 x 5.4cm |
Delivery Time: |
2-7 Days |
Unit: |
Piece |
