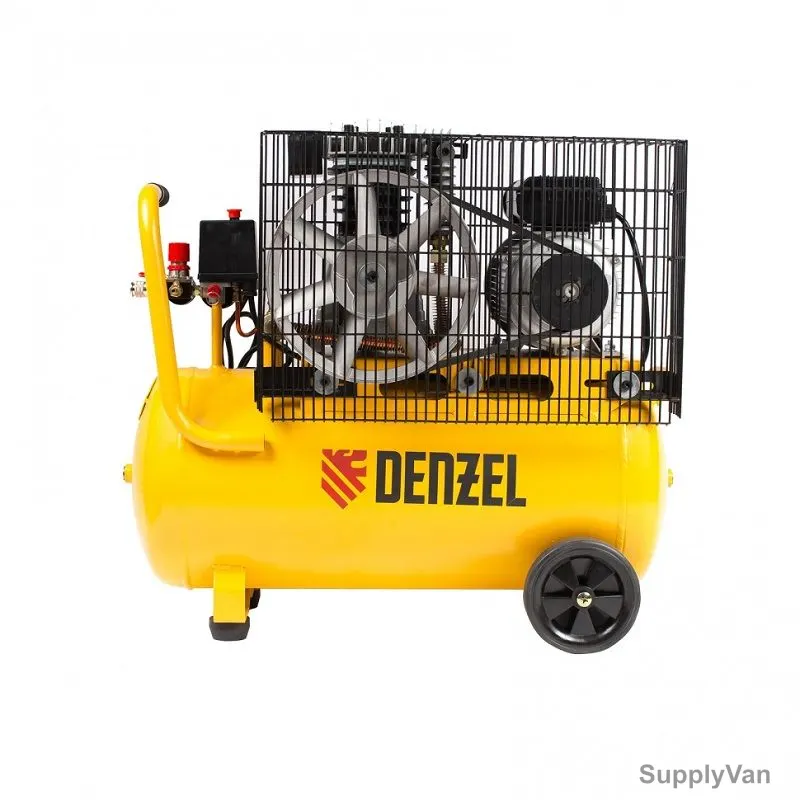

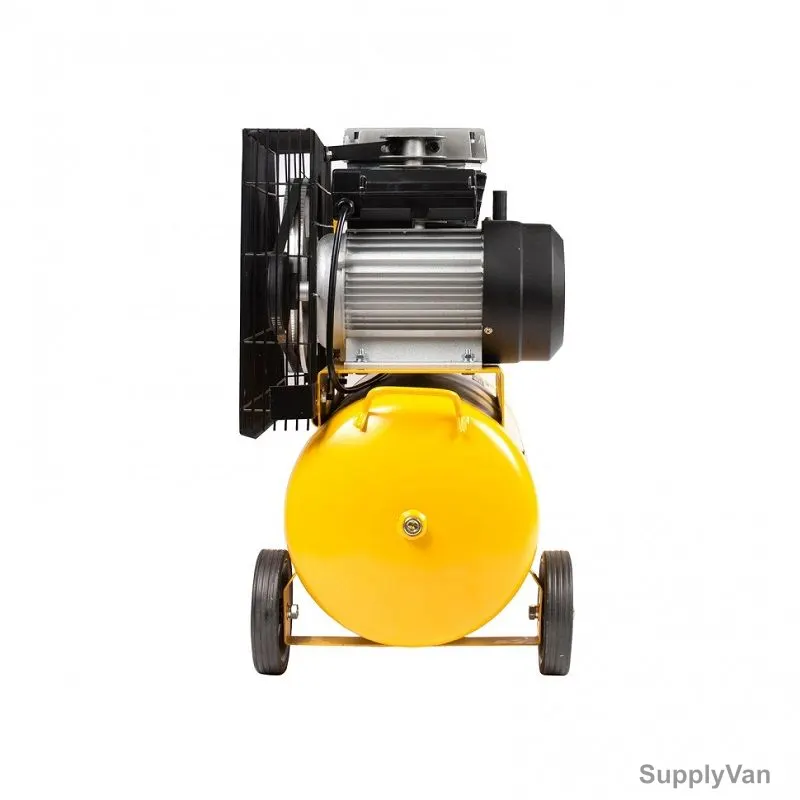

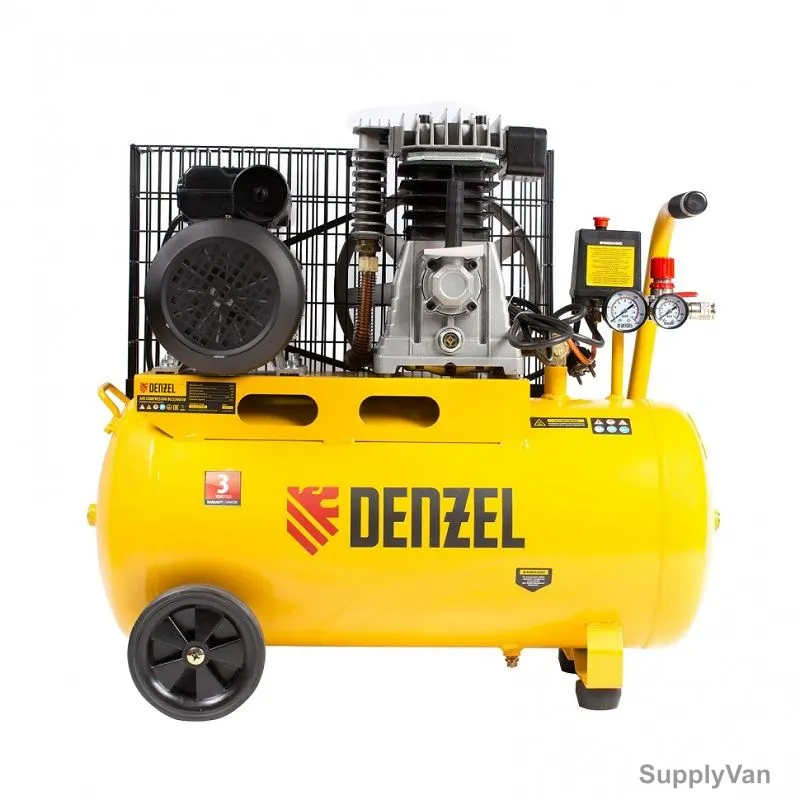

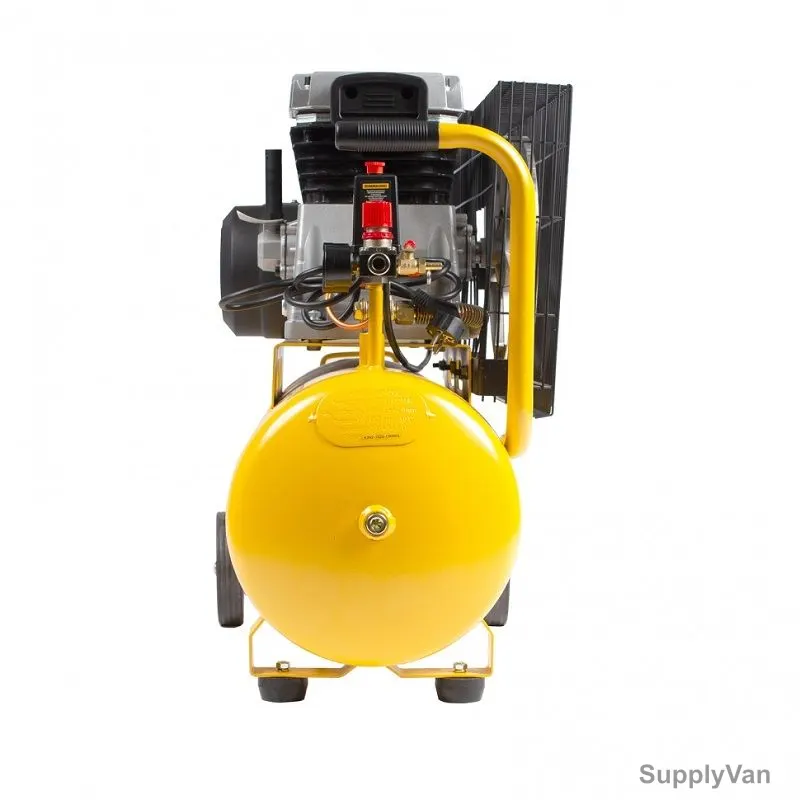

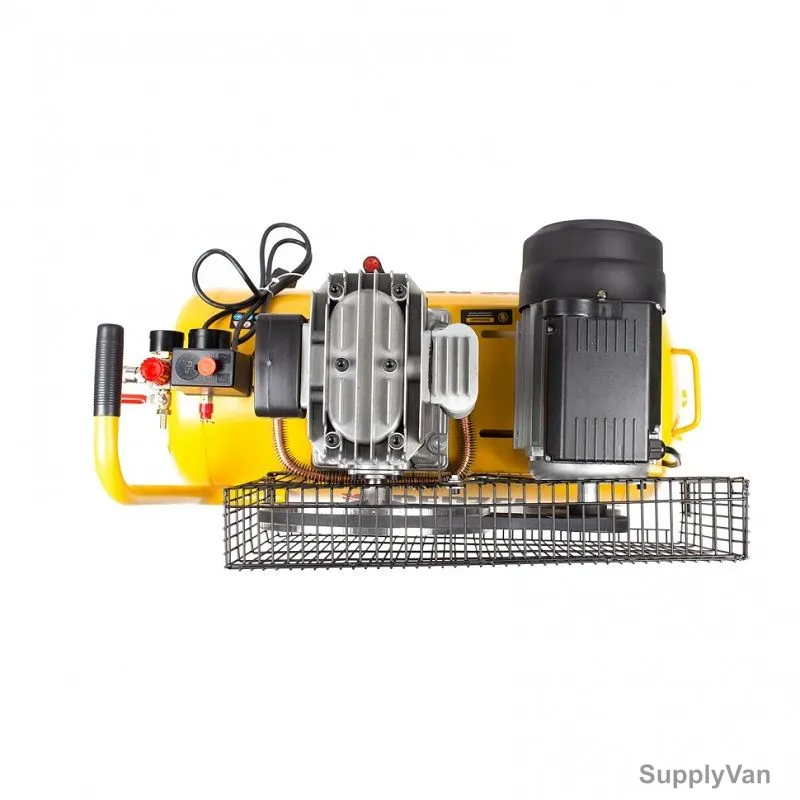

Denzel Belt-Driven Air Compressor, BCI2300/50, 2.3 kW, 50 Ltrs, 10 Bar, 400 L/Min

(No reviews yet) Write a Review
Brand:
Denzel
SKU:
782934222629
Minimum Purchase:
1 unit
Item Name:
Air Compressor
Model:
BCI2300-50
Manufacturer:
Denzel
Color:
Yellow and Black
Max. Pressure:
10 Bar
Voltage:
230V
Lubricant:
Oil
Receiver Volume:
50 Ltrs
Compressor Type:
Piston Belt
RPM (no load):
1050 RPM
Number of Steps:
1
Noise Level:
93 dB
Cable Length:
1.5 Mtrs
Frequency:
50 Hz
Displacement:
400 L/min
Power in HP:
3.1 HP
Power Source Type:
Electric
Power:
2.3 kW
Special Features:
motor overheat protection, motor overcurrent protection, copper winding of the electric motor
Packing Type:
Plywood Box
Ingress Protection (IP Rating):
IP21
Brand Origin (not manufacture):
United States
Certification:
EAC
Warranty (Subject to Conditions):
3 Years
Delivery Time:
2-7 Days
Unit:
Piece
See Full Product Specs
  • Denzel Belt-Driven Air Compressor, BCI2300/50, 2.3 kW, 50 Ltrs, 10 Bar, 400 L/Min -
  • Denzel Belt-Driven Air Compressor, BCI2300/50, 2.3 kW, 50 Ltrs, 10 Bar, 400 L/Min -
  • Denzel Belt-Driven Air Compressor, BCI2300/50, 2.3 kW, 50 Ltrs, 10 Bar, 400 L/Min -
  • Denzel Belt-Driven Air Compressor, BCI2300/50, 2.3 kW, 50 Ltrs, 10 Bar, 400 L/Min -
  • Denzel Belt-Driven Air Compressor, BCI2300/50, 2.3 kW, 50 Ltrs, 10 Bar, 400 L/Min -
  • Denzel Belt-Driven Air Compressor, BCI2300/50, 2.3 kW, 50 Ltrs, 10 Bar, 400 L/Min -
  • Denzel Belt-Driven Air Compressor, BCI2300/50, 2.3 kW, 50 Ltrs, 10 Bar, 400 L/Min -
  • Denzel Belt-Driven Air Compressor, BCI2300/50, 2.3 kW, 50 Ltrs, 10 Bar, 400 L/Min -
AED2,177.00
FREE DELIVERY

Description

The Denzel BCI2300/50 oil compressor with a power of 2.3 kW and a receiver volume of 50 liters produces 400 liters of compressed air per minute. This allows you to inflate tires, clean tools and equipment, manufacture and assemble products in furniture factories using pneumatic tools. If one receiver is not enough, you can connect a second one through the direct connection port, thereby increasing the volume of accumulated air. A distinctive feature of the compressor is a two-stage engine protection system . Not only does the temperature sensor protect it from damage in case of overheating, but also current protection quickly stops operation in the event of a short circuit or overload. This helps prevent engine failure and extend the life of the compressor.
  • The copper winding of the electric motor is less critical to overheating compared to aluminum, so the compressor will confidently withstand an 8-hour shift
  • The valve plate is made of high-quality tool steel and has a galvanic coating. When tested in a salt bath for 24 hours, it did not collapse, which indicates high strength and resistance to corrosion
  • The pressure switch turns off the engine when the receiver is full and turns it on again when the volume of air in it drops below the permissible level. This allows you to extend the life of the engine and automate the work process
  • The safety valve protects the receiver from emergency situations by automatically releasing pressure if it goes beyond the permissible values

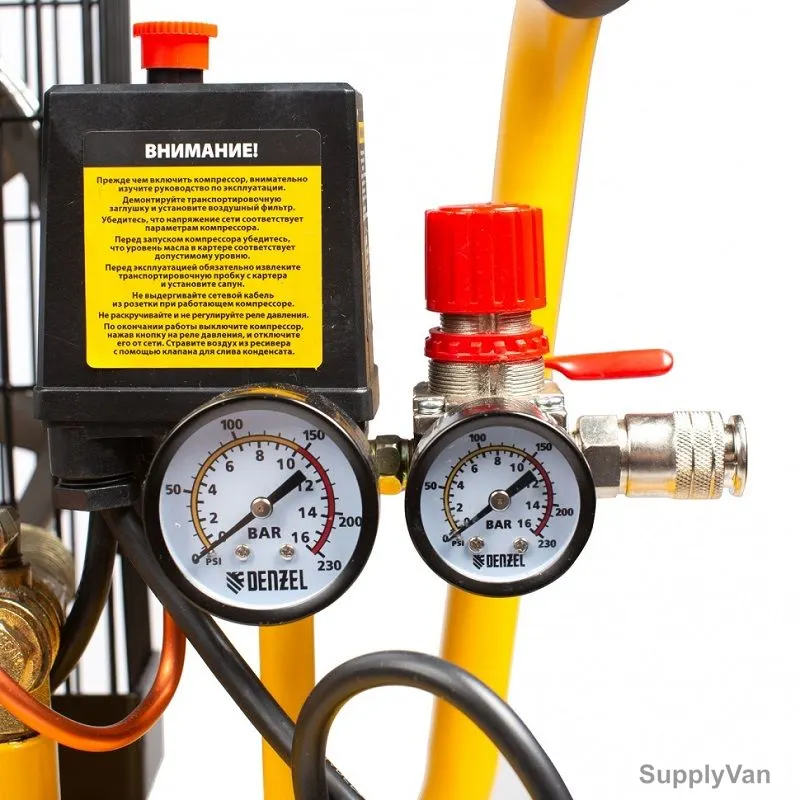

  • 2 pressure gauges of increased diameter on the receiver and the outlet line allow you to control the pressure and adjust it for different types of pneumatic tools
  • The air filter traps dust and prevents untreated air from entering the receiver, which protects the internal parts of the compressor from contamination and wear
  • Cast iron cylinders with enlarged fins are distinguished by effective heat dissipation, and metallized gaskets on them do not collapse under the influence of high temperatures and ensure tightness
  • The drive belt is of high quality, so it will last a long time without stretching during long-term operation
  • The thickness of the receiver walls is more than 2 mm, which ensures a strong connection between the joining surfaces and eliminates leaks

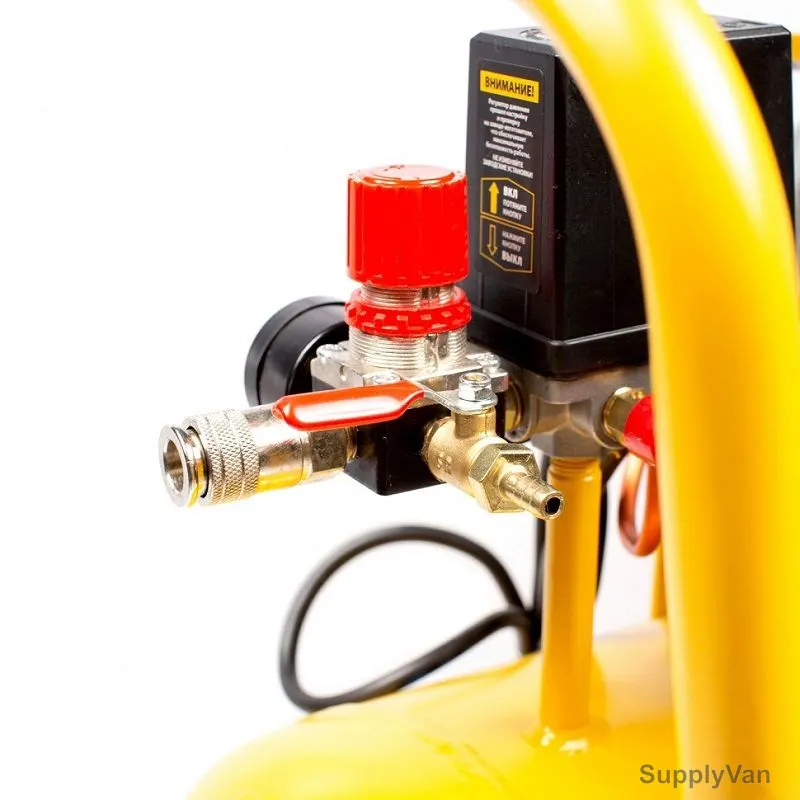

  • “Rapid" and “Herringbone" connectors allow you to work with different pneumatic lines, making the compressor an indispensable assistant on the work site
  • Shock-absorbing mounts minimize vibrations, ensuring comfortable work around the compressor
  • The valve at the bottom of the receiver makes it easier to get rid of air and accumulated condensate remaining after a work shift. As a result, the drive does not collapse and can serve for many years
  • Thanks to the high quality of components and control of all stages of production, the warranty on the compressor has been increased to 3 years

Items Included:
1x Air Compressor, 2x Wheel, 1x Mounting Kit, 1x Shock-Absorbing Stand, 1x Instruction Manual, 1x Warranty Card
Item Name:
Air Compressor
Model:
BCI2300-50
Manufacturer:
Denzel
Color:
Yellow and Black
Max. Pressure:
10 Bar
Voltage:
230V
Lubricant:
Oil
Receiver Volume:
50 Ltrs
Compressor Type:
Piston Belt
RPM (no load):
1050 RPM
Number of Steps:
1
Noise Level:
93 dB
Cable Length:
1.5 Mtrs
Frequency:
50 Hz
Displacement:
400 L/min
Power in HP:
3.1 HP
Power Source Type:
Electric
Power:
2.3 kW
Special Features:
motor overheat protection, motor overcurrent protection, copper winding of the electric motor
Packing Type:
Plywood Box
Ingress Protection (IP Rating):
IP21
Brand Origin (not manufacture):
United States
Certification:
EAC
Warranty (Subject to Conditions):
3 Years
Delivery Time:
2-7 Days
Unit:
Piece
