Unipolar Earthing Device
Model No.: WIBM-D-P7/6-MT25-UNI
PC/BM-DIN Screw type universal contact clamp made by press forged brass tested for high intensity current
DIN attack tang and screw clamping made by galvanized steel. Possibility to connect the copper cable in three different positions
Clamping capacity on Conductors: 5-40mm (diameter)
Clamping capacity on Flat Conductors: 40 x 60mm
Clamping capacity on Bars on Horizontal Level: 12 x 60mm
Clamping capacity on 45 degree Slanting Bars: Up to 28mm thickness
Copper Cable
Extra flexible electrolytic copper cable covered by transparent PVC sheath
Section 70mmq., length 6 m (or other length and section)
Complete at the extremities of tinning copper lugs and reinforcements by transparent heat-shrink sheath
Aluminium ground clamp for ball fixed point MTE25
Clamping capacity on round earth points: 25mm (diameter)
Clamping capacity on round conductors: 22mm (diameter)
Clamping capacity on flat bars: 22mm
Insulating Rod
Model No.: P2/300DIN
Colour: Yellow
High insulating rod made by polyester resin reinforced by fibreglass tube, external diameter 40mm
Total length 3 m (or other length) in two elements, each 1,5 m. length, complete of:
a.) Quick couplers to connect the two elements
b.) Insulating lower closing cap and hand guard onto the base element
c.) Aluminium bayonet DIN fitting, closing cap and hand guardItems Included:

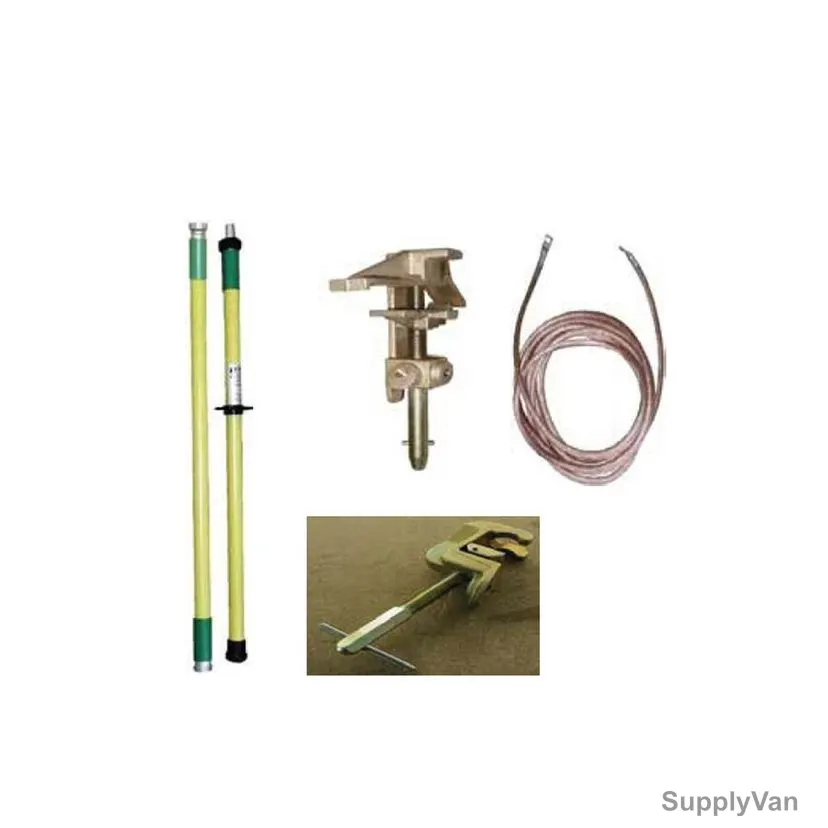

1x Unipolar Earthing Device, 1x Copper Cable, 1x Insulating Rod
